In the world of custom part manufacturing, a common and costly misconception persists: tighter tolerances always equal a better part. While precision is undoubtedly important, over-specifying CNC machining tolerances is costing manufacturers thousands of dollars and adding unnecessary weeks to their lead times. This comprehensive CNC tolerance guide will demystify dimensional variations. You will learn the true difference between ±0.1 mm and ±0.01 mm, how tolerances impact your bottom line, and how to apply the principles of CNC design for manufacturability (DFM) to get high-quality parts without breaking the bank.
When engineers demand ultra-precise CNC machining accuracy for features that don't actually require it, they trigger a cascade of manufacturing complexities. Real-world examples abound: a startup delaying their product launch by a month because they demanded ±0.01 mm tolerances on a simple cosmetic enclosure, or an automotive supplier doubling their per-part cost by applying high-precision standards to non-mating clearance holes.
In CNC manufacturing, tolerance refers to the allowable limit of variation in a physical dimension. It is the gap between the nominal dimension (the exact theoretical measurement on your CAD model) and the actual dimension (the physical measurement of the machined part). Because dimensional variation is inevitable, tolerances define the acceptable boundary for a part to function correctly.
No machine can cut a part to an infinitely exact measurement. Several factors prevent "perfect" dimensions:
Machine Limitations: Even the most advanced 5-axis CNC machines have microscopic play in their ball screws and guideways.
Tool Wear: As cutting tools engage with material, they wear down slightly, altering the cut dimensions over time.
Material Behavior: Materials flex, vibrate, and deform under the pressure of cutting forces.
Temperature Effects: Both the machine and the workpiece expand and contract with heat generated during machining and ambient room temperature changes.
Consider a standard callout: 25.00 mm ±0.10 mm. This means the nominal dimension is 25.00 mm, but the actual machined part is acceptable anywhere between 24.90 mm and 25.10 mm. This 0.20 mm total band is the "tolerance zone."
Understanding CNC manufacturing tolerance standards is the first step toward optimizing your engineering drawings.
If no specific tolerance is called out on a drawing, machine shops will typically apply a standard default. Here is a general breakdown:
Process | Typical Tolerance |
|---|---|
Standard CNC Milling | ±0.1 mm |
Precision CNC Machining | ±0.05 mm |
High-Precision CNC Machining | ±0.01 mm |
Ultra-Precision Machining | ±0.005 mm |
The ISO 2768 standard simplifies engineering drawing tolerances by applying general tolerances to all dimensions unless specifically noted otherwise.
ISO 2768-m (Medium): The most common standard for general CNC machined parts.
ISO 2768-f (Fine): Used for parts requiring tighter fits and higher precision.
ISO 2768-c (Coarse): Used for rough machining or non-critical structural components.
When Standard Tolerances Are Sufficient: For 80% of machined features—such as external profiles, mounting brackets, and cosmetic surfaces—standard ISO 2768-m (±0.1 mm) is more than sufficient for proper assembly and function.
To understand CNC machining precision, we must compare standard and high-precision tiers. Visually, a ±0.1 mm zone is ten times wider than a ±0.01 mm zone. However, the manufacturing difficulty does not scale linearly; it scales exponentially.
Factor | ±0.1 mm (Standard) | ±0.01 mm (High-Precision) |
|---|---|---|
Programming Complexity | Low | High (Requires specialized toolpaths) |
Machining Time | Short (Aggressive cuts) | Long (Light, slow finishing passes) |
Inspection Requirements | Basic (Calipers, micrometers) | Advanced (CMM, optical comparators) |
Scrap Risk | Low | High (One mistake ruins the part) |
Cost Impact | Lower (Baseline cost) | Much Higher (Often 2x to 5x cost) |
A part machined to ±0.01 mm is not "ten times better" than one machined to ±0.1 mm. If a clearance hole for an M5 bolt only needs to be 5.5 mm to allow the bolt to pass through, machining it to 5.50 mm ±0.01 mm provides zero functional benefit over 5.5 mm ±0.1 mm. The performance is identical, but the cost is vastly different.
Tightening tolerances directly inflates your CNC machining cost. Here is exactly where your money goes when you demand ultra-precise precision machining tolerance:
Additional Setup Requirements: High precision requires specialized fixturing, temperature-controlled environments, and meticulous machine calibration.
Slower Cutting Parameters: Machinists must reduce feed rates and depth of cut to prevent tool deflection and achieve fine surface finishes.
Increased Tool Wear: Tools must be changed much more frequently to ensure the cutting edge remains perfectly sharp.
More Frequent Measurements: Operators must stop the machine constantly to measure the part, adding significant labor time.
Higher Scrap Rates: The margin for error is razor-thin. A slight vibration or temperature spike can push a part out of spec, resulting in scrapped material.
Secondary Finishing Operations: Achieving ±0.01 mm often requires secondary processes like CNC grinding, lapping, or honing after the initial milling.

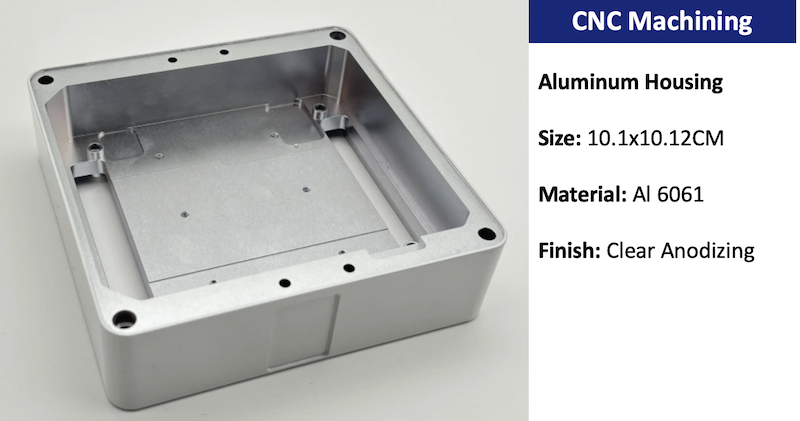

Imagine machining a 100 mm Aluminum Housing.
At ±0.1 mm, the part might cost $50 and take 2 hours to machine.
At ±0.01 mm, the cost could easily jump to $250+, taking 6 hours of machining, plus 2 hours of CMM inspection.
To optimize your design, you must distinguish between critical and non-critical features.
Bearing seats: Must perfectly match the bearing outer/inner diameter to prevent spinning or slipping.
Shaft diameters: Crucial for rotational balance and mating with bearings.
Press-fit features: Require exact interference fits to hold components together without fasteners.
Sealing surfaces: Must be perfectly flat and precise to prevent fluid or gas leaks.
External profiles: The outside shape of an enclosure rarely needs to be exact.
Cosmetic surfaces: As long as the finish is good, the exact dimension doesn't matter.
Non-mating features: Standoffs or ribs that don't interface with other parts.
Clearance holes: Holes meant for bolts to pass through freely.
Apply the 80/20 rule: Tighten only the 20% of dimensions that directly affect assembly or function. Leave the remaining 80% to standard general tolerances.
Different industries have vastly different baseline requirements for CNC machining services:
Consumer Electronics: Requires high precision (±0.02 mm to ±0.05 mm) for tight-fitting aesthetic enclosures and internal PCB mounts.
Automotive Components: Balances precision and cost. Engine components need tight tolerances, while chassis brackets use standard tolerances.
Medical Devices: Demands extreme precision (±0.01 mm or tighter) for surgical instruments and implants where failure is not an option.
Aerospace Parts: Requires strict tolerances combined with rigorous material traceability and inspection documentation.
Industrial Equipment: Generally relies on standard tolerances (±0.1 mm) for heavy machinery, focusing on durability over microscopic precision.
Prototype Parts: Always use standard tolerances (±0.1 mm) unless testing a specific critical fit. Save your budget for design iterations.
The material you choose dictates the limits of your CNC machining accuracy.
Aluminum: Excellent machinability. Easily holds tight tolerances (±0.01 mm) due to its rigidity and good heat dissipation.
Stainless Steel: Harder and prone to work hardening. Holding ±0.01 mm is possible but requires slower speeds and specialized tooling.
Titanium: Notoriously difficult to machine due to low thermal conductivity and high springback. Ultra-tight tolerances are very expensive.
Brass: Highly machinable and stable, excellent for holding tight tolerances in small, intricate parts.
Engineering Plastics: Plastics (like Delrin, PEEK, or Nylon) are flexible, prone to tool deflection, and highly sensitive to temperature.
Why Plastic Parts Require Different Expectations: Plastics expand and contract significantly with temperature changes and absorb moisture. Specifying ±0.01 mm on a large plastic part is often physically impossible once the part is removed from the temperature-controlled machine shop and placed in a standard room environment.
Implement these CNC design for manufacturability (DFM) principles to keep costs low:
Use General Tolerances Whenever Possible: Add a note to your drawing: "Unless otherwise specified, dimensions are per ISO 2768-m."
Avoid Tight Tolerances on Deep Features: The deeper a hole or pocket, the more the tool deflects. Keep tight tolerances to shallow features.
Reduce Unnecessary GD&T Requirements: Geometric Dimensioning and Tolerancing (like strict flatness or true position) requires complex CMM inspection. Only use it when absolutely necessary.
Dimension Parts Based on Functional Requirements: Dimension from functional datums, not just arbitrary edges, to ensure the part works as intended even at the edges of the tolerance band.
Collaborate With Your CNC Supplier Early: Share your CAD files with your manufacturing partner before finalizing the design.
Avoid these pitfalls to ensure a smooth manufacturing process:
Applying Tight Tolerances to Every Dimension: This is the fastest way to bankrupt a project budget.
Ignoring Material Expansion: Designing a metal-to-plastic interference fit without accounting for the different thermal expansion rates of the two materials.
Using CNC Tolerances Instead of Functional Requirements: Specifying a dimension to ±0.01 mm just "to be safe," rather than calculating the actual functional need.
Forgetting Inspection Costs: Remember that if you specify ±0.005 mm, you must also pay for the metrology equipment and time to verify it.
Copying Legacy Drawings Without Review: Older designs may have overly tight tolerances based on outdated manufacturing methods. Review and update them for modern CNC capabilities.
Use this quick-reference CNC tolerance chart when detailing your engineering drawings:
Feature Type | Recommended Tolerance |
|---|---|
External Profiles | ±0.1 mm |
Clearance Holes | ±0.1 mm |
Threaded Holes | Standard Thread Tolerance (e.g., 6H/6g) |
Bearing Seats | ±0.01 mm to ±0.02 mm |
Press Fits | ±0.005 mm to ±0.02 mm |
Sealing Surfaces | ±0.01 mm to ±0.05 mm |
At TEAM MFG, we don't just blindly machine what is on the drawing; we partner with you to engineer better, more cost-effective parts. Our comprehensive CNC machining services are designed to bridge the gap between design intent and manufacturing reality.
DFM Review Before Production: Every project begins with a thorough Design for Manufacturability analysis.
Identifying Over-Toleranced Features: Our engineers will pinpoint areas where you can loosen tolerances without affecting part function, instantly saving you money.
Precision CNC Machining Capabilities: When you do need high precision, our state-of-the-art 3, 4, and 5-axis CNC machines and advanced metrology lab deliver exceptional CNC machining precision.
Cost-Saving Recommendations: We suggest material changes, design tweaks, and setup optimizations to lower your per-part cost.
Rapid Prototyping and Low-Volume Production Solutions: Whether you need 1 prototype or 10,000 production parts, we scale our processes to fit your needs.
Ready to optimize your next project? Upload your CAD files today and receive a free manufacturability review with tolerance optimization suggestions from TEAM MFG engineers. Let's build something great, efficiently.
The standard tolerance for most CNC milled and turned parts is ±0.1 mm (or ±0.005 inches). This is suitable for the majority of non-critical features.
Yes, high-end CNC machines can easily achieve ±0.01 mm accuracy. However, achieving this requires specialized tooling, slower machining speeds, and advanced inspection equipment like CMMs.
Tightening a tolerance from ±0.1 mm to ±0.01 mm can increase the cost of a part by 2 to 5 times, depending on the part's complexity, material, and required secondary finishing operations.
You should only specify tight tolerances (±0.01 mm to ±0.05 mm) for critical mating features, such as bearing seats, press fits, alignment pins, and sealing surfaces.
ISO 2768 is the most widely used and accepted standard. Specify ISO 2768-m (Medium) for general parts, and ISO 2768-f (Fine) for parts requiring higher overall precision.
Yes, ISO 2768 is highly suitable for most CNC machined parts. It simplifies drawings, reduces clutter, and gives machinists a clear, standardized baseline for general dimensions.
Tighter tolerances significantly increase lead times. They require slower machining speeds, more frequent tool changes, extensive in-process inspection, and potentially secondary finishing operations like grinding.
With standard CNC milling and turning, the practical limit is around ±0.005 mm. For tighter requirements (down to ±0.001 mm or less), secondary processes like CNC jig grinding or lapping are required.
