Rubber Molding Services

In contemporary society, rubber products are closely related to our lives. For enterprises, shaping rubber into various forms of craft products is a challenge. TEAM MFG has over a decade of industry experience in the field of rubber molding services. We provide top-notch custom rubber molding services to meet the precise needs of various industries.

You are here: Home » Services » Injection Molding Services » Rubber Molding Service

Custom Rubber Molding Services at TEAM MFG

As a leading manufacturer, TEAM MFG offers several rubber molding services to make you rapid prototypes, and low to high-volume production parts. Rubber injection molding, compression molding,  vacuum casting, and LSR molding are the core methods at TEAM MFG for rubber parts manufacturing. Here, we have a brief introduces of all these services:

Rubber Injection Molding Service

Our rubber injection molding process utilizes a state-of-the-art hopper and heated barrel system. This method efficiently feeds uncured rubber, then pushes it through a plunger into a heated chamber, ensuring precise mold filling. Our process is designed to support a wide range of durometers and custom shapes, with an emphasis on reducing flash and ensuring quicker cycle times.

  • High-Volume and Low-Volume Capabilities: We are equipped to handle both high and low-volume production, adapting our techniques to suit your needs.
  • Sophisticated Parting Lines: Our expertise in setting parting lines minimizes flashes on rubber molded parts, ensuring a high-quality finish.
  • Temperature Management: We rigorously control the injection molding temperature to balance flow, quality, and strength of the final product.

rubber

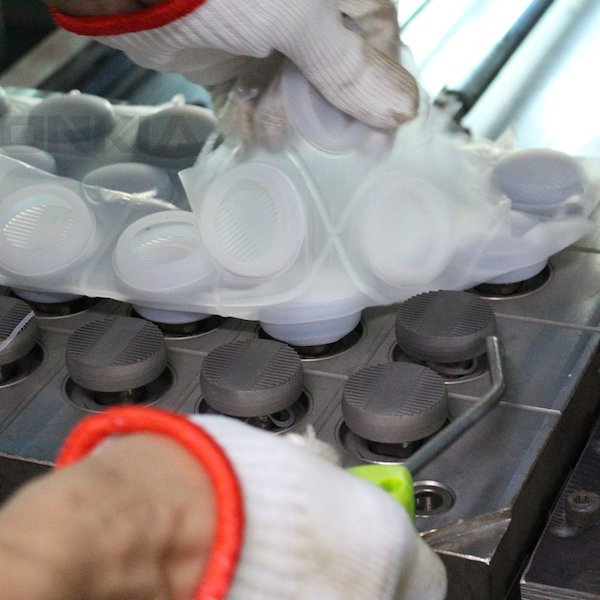

Rubber Compression Molding

Rubber Compression Molding Service

Recognized as one of the most cost-effective and widely used methods, compression molding is ideal for low to medium production volumes. This process involves pre-heating the polyurethane mold rubber material and compressing it into the mold cavity using a high-pressure press. It's particularly advantageous for producing large, bulky products like gaskets, seals, and o-rings.

  • Mold Construction: We design a two-plated mold, adaptable for closed and open structures.
  • Material Placement: The molding material, mixed with a curing agent, is placed in the heated cavity.
  • Mold Compression: The material is compressed, ensuring full contact with all mold areas.
  • Heating and Curing: The mold is heated to cure the rubber effectively.
  • Final Processing: After molding, we remove overflows and prepare the product for delivery.

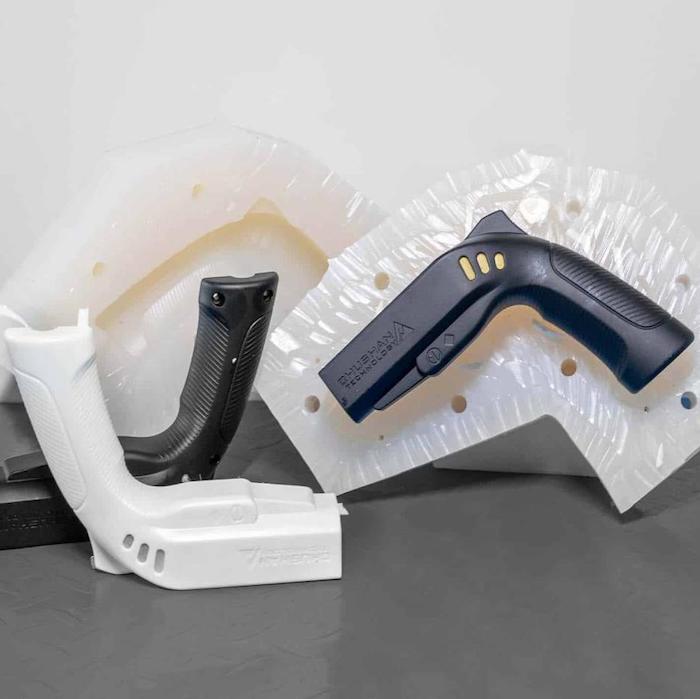

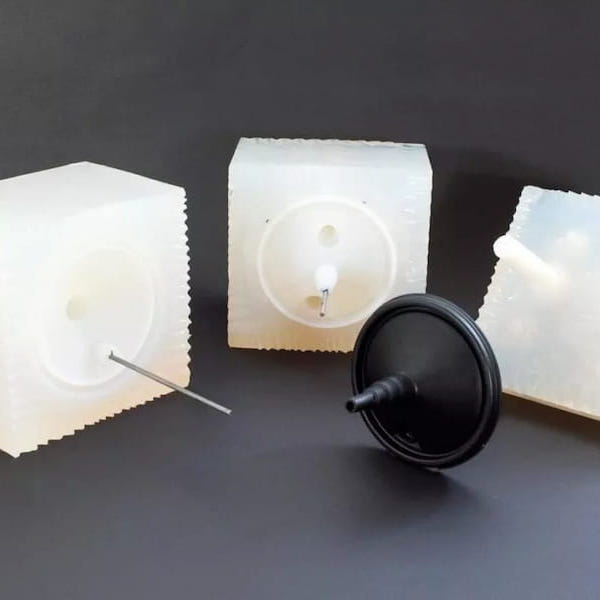

Rubber Vacuum Casting Service

Vacuum casting is a manufacturing process used to produce rapid prototypes and low-volume plastic and rubbber parts. The process is often appreciated for its combination of speed, quality, and affordability in prototyping and short runs—especially compared to the long lead times of injection molding molds and liquid silicone rubber molding molds, silicone rubber mold is quick!

Common Applications
  • Prototypes that closely mimic injection-molded parts
  • Market testing units
  • Functional testing parts
  • Bridge production before mass production tooling is ready
  • Low-volume production for specialized devices or custom products

Vacuum Casting Rubber

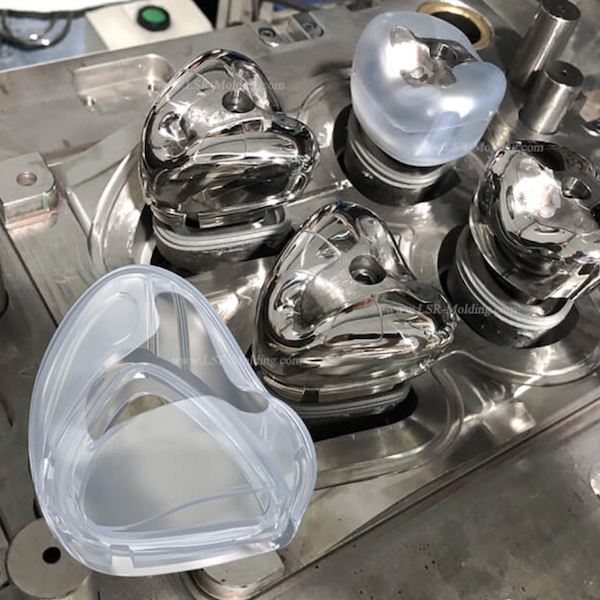

LIM

Liquid Silicone Rubber(LSR) Molding Services

Liquid silicone rubber(LSR) molding is thermoset injection molding process that inject the liquid silicone into the mold cavity to mold the desired parts.

 Material form: Mixing a two-part liquid (Part A + Part B)  together and cures (vulcanizes) inside a heated mold.
 Process: Usually molded by Liquid Injection Molding (LIM), which is fast, precise, and suitable for high-volume production. TEAM MFG also offers low-volume LIM solutions.
 Mold: LSR mold is a bit different with traditional plastic injection mold.
 Properties of molding silicone rubber
  • Excellent flexibility and elasticity
  • High temperature resistance (up to ~200°C or higher)
  • Cold resistance (down to -50°C)
  • Biocompatible (safe for medical and food contact applications)
  • Good electrical insulation
  • UV and aging resistance


How to Choose the Right Rubber Molding Method

To better serve varied needs, we make a comparison here. Each has strengths depending on part geometry, material, volume, and cost constraints.

 Molding Type  Best Use Cases  Typical Materials  Typical  Tolerance  Key Advantages  Considerations
 Rubber Injection Molding High-volume production, tight tolerances, complex geometries TPEs. TPVs, TPRs, elastomers ±0.05–0.20 mm (±0.002–0.01 in) Excellent dimensional precision, low material waste, highly consistent part quality Higher tooling costs; limited to elastomers with good flow characteristics
 Compression Molding Medium production runs, large or bulky parts (e.g., gaskets, seals, O-rings) NR, EPDM, CR (neoprene), silicone rubber, NBR, IIR ±0.20–0.50 mm (±0.008–0.020 in) Lower tooling cost, wide range of compatible rubber materials Longer cycle times; limited ability to form fine or intricate features
 (LSR) Injection Molding Medical, food-grade, harsh environments, high-purity flexible components Platinum-cured liquid silicone rubber ±0.05–0.1 mm (±0.002–0.005 in) Extremely high precision, fast cycle times, biocompatible and heat-resistant High initial equipment investment; restricted to silicone rubber materials
 Vacuum Casting Prototyping, bridge production, pre-production validation Silicone elastomers, PU elastomer resins, rubber-like casting materials ±0.10–0.30 mm (±0.004–0.012 in) Quick turnaround, low upfront cost for small batches, excellent surface detail Short mold life, limited material options; not suitable for mass production
 All these 4 methods have tooling investment.
if you just need 1-2 rubber parts without tooling, you can try our 3D printing services, send us email: ericchen19872017@gmail.com
Start Your Projects Today

What is Rubber Molding

Rubber molding shapes rubber into different products. It uses heat and pressure in a mold. This method is quick and saves costs. It also makes parts that are accurate and strong. The process includes four types: injection, compression, liquid silicone rubber injection molding, and vacuum casting. Each type has its own use and benefits. This makes rubber molding important in making various rubber items.

Rubber Injection Molding

Advantages of Rubber Injection Molding

- Superior precision: Ideal for intricate designs requiring exact dimensions.
- Efficient production: Suitable for high-volume manufacturing, offering consistency.
- Minimal waste: Produces less scrap material, enhancing cost-effectiveness.

Disadvantages of Rubber Injection Molding

- Limited material compatibility: Best suited for silicone rubber molding and similar materials.
- Higher initial costs: Investment in specialized machinery can be substantial.



Rubber Compression Molding

Advantages of Compression Molding

- Versatility: Adaptable for various materials, including black rubber molding.
- Cost-effective: Lower tooling costs, making it suitable for custom rubber molding projects.
- Simplified process: Easier to manage and maintain, especially for flexible rubber molding.

Disadvantages of Compression Molding

- Limited complexity: Not ideal for extremely detailed or thin-walled designs.
- Longer cycle times: May not be suitable for large-scale production demands.



Rubber Vacuum Casting

Advantages of Rubber Vacuum Casting

- High-quality surface finish.
- Excellent detail replication.
- Fast turnaround time.
- Lower cost for small batches.
- Wide range of materials (rigid, flexible, transparent, etc.).
- Ideal for functional prototypes and pre-production testing.

Disadvantages of Vacuum Casting

- Limited Material Selection
- Shorter Lifespan of Molds.
- Dimensional Accuracy Limits.
- Slower Production Speed vs. Other Rubber Molding Processes.
- Size Restrictions.
- Not Cost-Effective for Large Quantities.



Liquid Silicone Rubber(LSR) Molding

Advantages of LIM

- High Precision & Consistency: Good to manufacture complex shapes parts in tight tolerances.
- Fast Cycle Times: Automated mixing, injection, and curing make it faster than traditional compression molding.
- Material Properties: Produces parts with outstanding flexibility, heat resistance, and biocompatibility.

Disadvantages of LIM

- High Initial Cost: Tooling and LIM machines are expensive, making it less cost-effective for low-volume runs.
- Limited Material Options: Only works with liquid silicone rubbers (not suitable for solid rubbers or thermoplastics).

- Demolding Challenges: Soft, elastic parts can be tricky to remove without specialized tooling or automation.



Custom Rubber Molding Capabilites -

Rubber Insert Molding & Rubber Overmolding Available

Custom Rubber Molding / Rubber Insert Molding / Rubber Overmolding / Prototype Rubber Molding
  • Standard Rubber Molding
  • Rubber Insert Molding
  • Rubber Overmolding
Request a Quote

Benefits of Rubber Molding

rubber-

Efficiency

Eliminates most labor, saving time and cost, and adds machine-driven consistency.




rubber--

Speed

Machine-driven processing of
raw material leads to faster production times.




rubber---

Cost-Effectiveness

Liquid rubber for molds are economical, especially for high volumes of medium to high complexity products.



rubber

Advantages of Rubber Molding

Suitable for specific part designs, offering lower upfront costs, smaller material batches, and versatility in molding.


Why our Rubber Molding Service

1
Professional engineering team
Our engineers, project managers have experience with Asian and western business cultures, we have solid engineering background and help lots of customers from all over the world to mold rubber products successfully and quickly.
2
Fast delivery cycle
According to different structures, 1,000 simple pieces are as little as 4 days.
3
High-quality rubber products
Systematic quality management to ensure high-quality products (FQC, IQC, IPQC, OQC, QE).​​​​​​​
4
Meet the customer's quantity requirements
No matter how much the quantity is, it can meet the customer's requirements.​​​​​​​ For small volume, we can make the parts through liquid silicone rubber mold making​​​​​​​.
rubber1

Rubber Molding Materials


TPE、TPU、TPV、TPR， - Silicone
- EPDM
- Urethane
- Polyurethane (PU)
- Polytetrafluoroethylene (PTFE)
- High-density Polyethylene (HDPE)


Rubber Molding Colors

 Most Colors in the Pantone book can be reached.
 We can match the colors accoding to customers' offered physical samples.

Pantone Colors

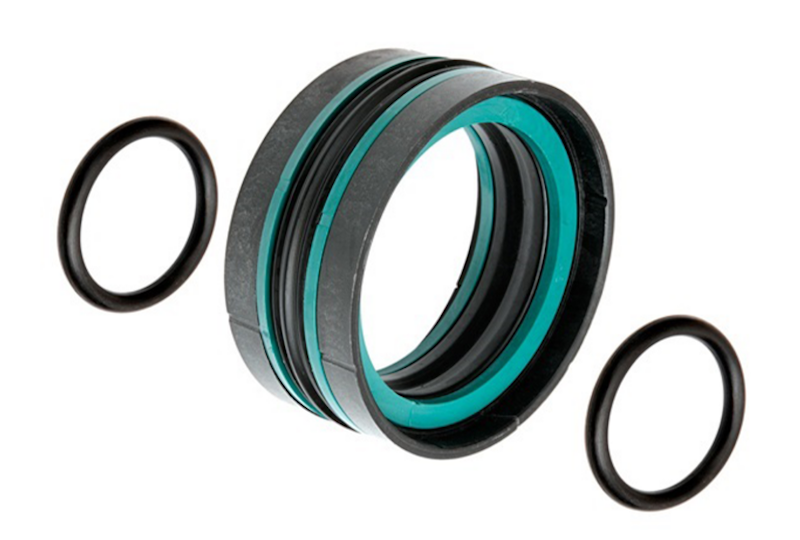

Rubber Sealing

Rubber Molding Parts' Tolerance (RMA / ISO 3302-1)

 Class A1 (Very Precise): Tightest tolerance, used for critical parts.Rare in production due to cost and process difficulty. Example: ±0.10 mm on small dimensions.
 Class A2 (Precision): Common for high-quality seals, gaskets, and medical/automotive parts. Example: ±0.25 mm for dimensions up to 10 mm.
Class A3 (Commercial / Standard): Most widely used; suitable for general-purpose molded rubber parts. Example: ±0.40 mm for dimensions up to 10 mm.

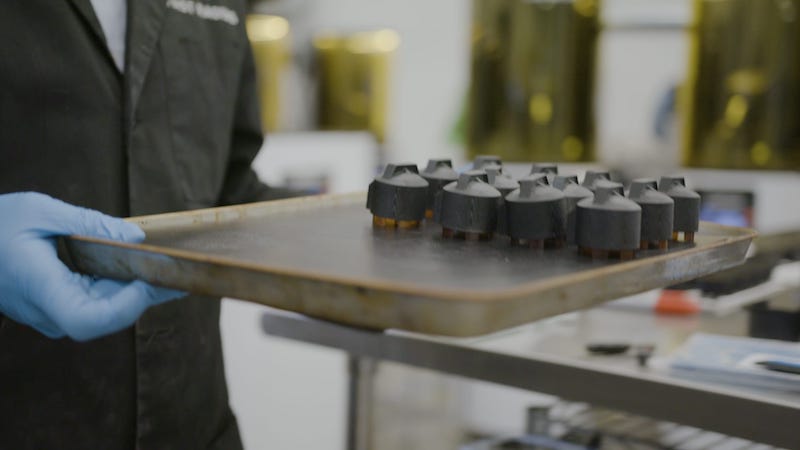

Post-Curing and Stabilization

After the initial molding process, many rubber parts undergo a post-curing stage to enhance their physical and chemical properties. Post-curing is a controlled heating process that completes the vulcanization reaction, removes residual volatiles, and stabilizes the material for long-term performance. At TEAM MFG, we use precise post-curing methods to ensure every molded rubber part meets the required strength, durability, and stability standards.
Post-Curing and Stabilization

Why Post-Curing Matters

Post-curing plays a vital role in improving the performance of molded rubber components. It helps to:

 Increase heat and chemical resistance by completing crosslinking reactions.

 Enhance mechanical strength and elasticity, reducing deformation under stress.
 Improve dimensional stability for applications requiring tight tolerances.

Eliminate residual by-products or volatiles that could affect part performance or odor.

Our Post-Curing Process

TEAM MFG operates temperature-controlled ovens specifically designed for rubber post-curing.
  • Each batch is processed at the optimal temperature and duration based on the rubber compound type, such as silicone, EPDM, nitrile, or fluorocarbon.
  • This ensures uniform curing, improved hardness consistency, and stable material properties across all parts.
  • For high-performance applications, we also provide secondary stabilization to relieve internal stresses and prepare parts for critical environments like automotive, aerospace, and industrial sealing.

Rubber Molding Services for Any Volume

Rapid Prototypes

  1.  Volumes: 1-100 Rubber Parts
 Suggested Solutions: Vacuum Casting, Prototype Compression Mold Tooling.
Request a Quote

Low to Medium-Volume Production

 Volumes: 100-100,000 Rubber Parts
 Suggested Solutions: Multi-Cavities Compression Molding, Plastic Injection Molding, LSR Molding.
Request a Quote

Mass Production

 Volumes: 100,000+ Rubber Parts
 Suggested Solutions: Multi-Cavities Plastic Injection Molding, Multi-Cavities LSR Molding.



Request a Quote

Tailored Solutions for Diverse Industries

As a rubber mold company, TEAM MFG understands that each industry has unique demands and challenges. Our custom rubber molding services are designed to meet the specific needs of various sectors, including automotive, aerospace, healthcare, and consumer products. We work closely with our clients to develop rubber parts that are not just functional but also contribute to the overall success of their products.


Gallery of Rubber Molding Parts

As a rubber mold company, we offer OEM services to help many customers for their projects. Starts from the very beginning quotation stage to rubber silicone mold making, rubber injection molding process, sample approval, parts molding etc, we provides the full engineering supports. TEAM MFG has make many different products/parts these years, they covers from many industries, we even did the rubber shoe molding, rubber floor molding and rubber crown molding..., here are some products we made below:

Rubber Parts Made by Molding

Category Typical Rubber Parts Common Rubber Materials
Typical Molding Process
Seals & Gaskets O-rings, flat gaskets, flange seals, lip seals, X-rings NBR, EPDM, FKM, Silicone, Neoprene Compression, Injection
Automotive Bushings, engine mounts, CV boots, weatherstrips NR, EPDM, NBR, CR Injection, Compression
Industrial Machinery Diaphragms, bellows, rollers, couplings NBR, EPDM, PU, NR Compression, Transfer
Vibration & NVH Anti-vibration mounts, isolators, dampers NR, EPDM, Silicone Compression, Bonded molding
Rubber-to-Metal Bonded Engine mounts, shear mounts, sleeves NR, NBR, EPDM Compression, Transfer
Fluid Control Valve seats, duckbill valves, pump impellers EPDM, Silicone, FKM Injection, Compression
Electrical & Electronics Grommets, connector seals, keypads Silicone, EPDM Injection, LSR molding
Medical & Healthcare Syringe plungers, stoppers, mask seals Medical Silicone, EPDM Injection, Compression
Food & Beverage Sanitary gaskets, pump diaphragms FDA Silicone, EPDM Compression, Injection
Aerospace & Defense Fuel seals, fire-resistant gaskets FKM, Silicone, Fluorosilicone Injection, Transfer
Oil & Gas Packings, chevron seals, BOP seals FKM, HNBR, NBR Compression, Transfer
Construction Expansion joint seals, glazing rubber EPDM, Neoprene Extrusion + molding
HVAC Systems Duct seals, vibration pads EPDM, NR Compression
Marine & Offshore Hatch seals, fenders, dock bumpers EPDM, NR Compression
Agriculture Sprayer diaphragms, tractor bushings NBR, NR Compression
Mining & Heavy Duty Chute liners, wear pads, skirting NR, Abrasion-resistant rubber Compression
Packaging & Automation Suction cups, grippers Silicone, PU Injection
Consumer Products Grips, feet, protective bumpers TPE, Silicone, NR Injection
Optical & Lighting Lens seals, light-blocking gaskets Silicone, EPDM Injection
Smart Devices Button membranes, port seals Silicone, LSR Injection (LSR)
Laboratory Equipment Vacuum seals, autoclave gaskets Silicone, FKM Compression
Fire & Safety Breathing mask parts, fire hose seals Silicone, EPDM Compression
Railway & Transit Rail pads, door seals NR, EPDM Compression
Furniture & Architecture Edge trims, glazing gaskets EPDM, TPE Compression
Environmental & Water Filter membranes, pipe seals EPDM, NBR Compression
Specialty & Extreme Use Cryogenic seals, radiation-resistant parts Silicone, FKM, specialty elastomers Compression
Disposable Rubber Parts Vial stoppers, single-use valves Silicone, EPDM Injection

Quality You Can Count On

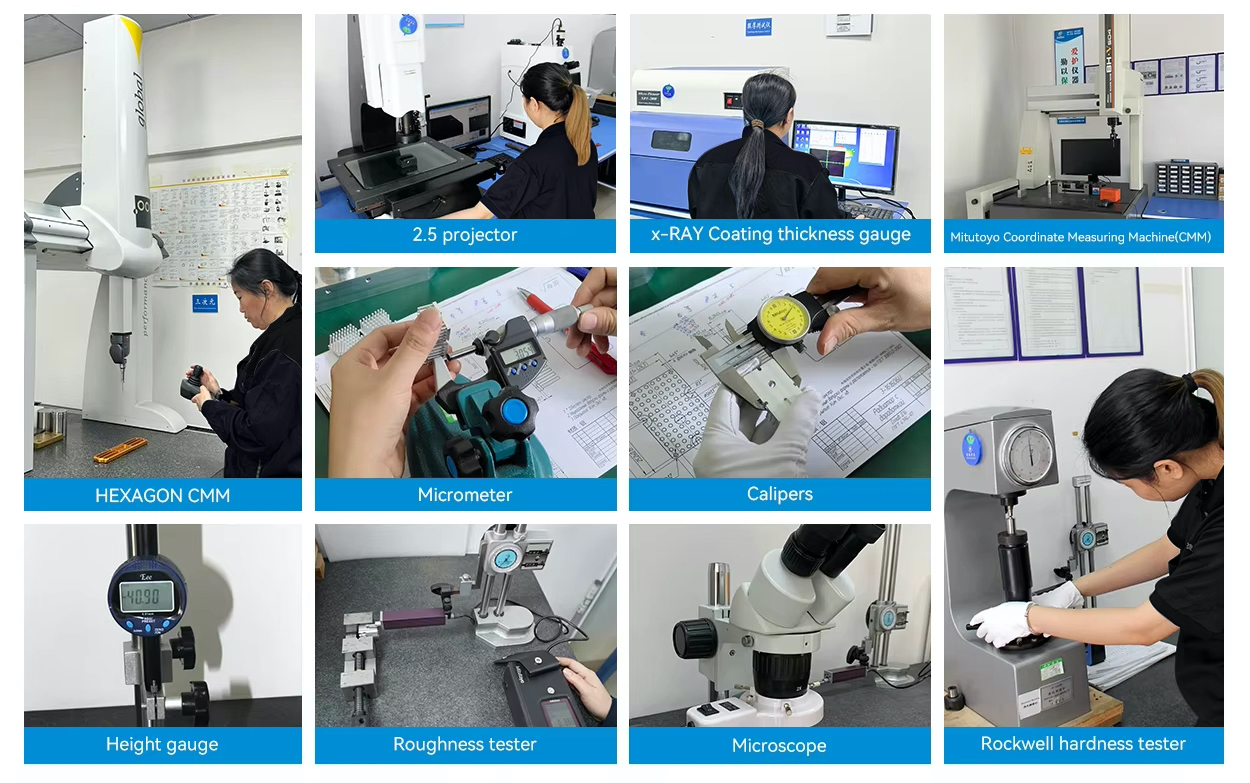

All post-cured rubber parts are inspected for hardness, dimensional accuracy, and visual quality before shipment. TEAM MFG’s integrated molding and finishing system guarantees consistent performance, whether you need a prototype run or mass production.
Inspection

Looking for Online Rubber Molding Services?



Success Case Study Story

 We needed custom rubber seals for our new bike accessory, and TEAM MFG delivered flawlessly. The compression and injection molding processes produced seals with excellent detail and no excess flash. Production volumes—from prototype to thousands—were handled smoothly. Highly recommend their precision and consistency!


Tom Baskaran

— Product Manager, Bike Components

Bicycle headlight

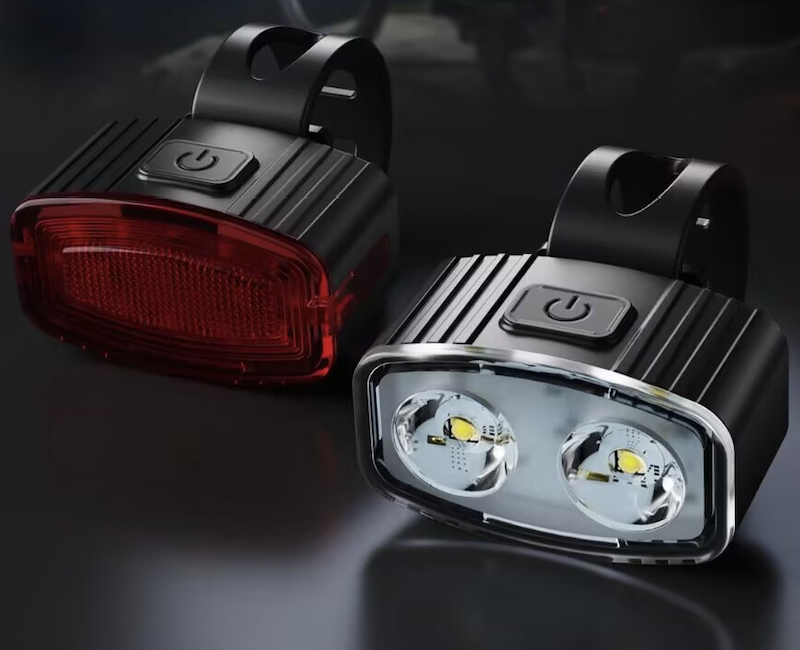

headlight

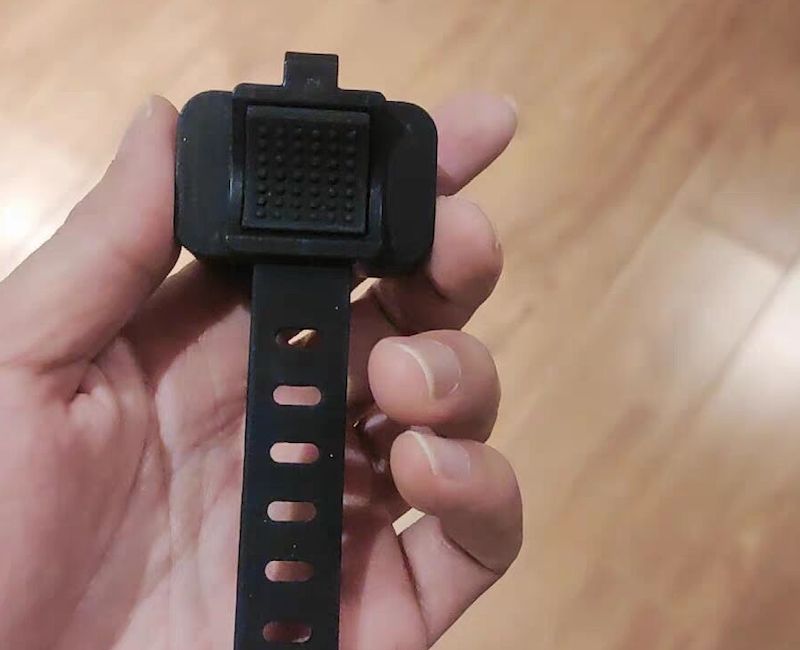

Strip
Bicycle headlight

FAQs on Rubber Molding by TEAM MFG

  • Can you provide custom solutions for unique rubber molding needs?

    Yes, at Team MFG, we specialize in creating custom solutions tailored to the unique requirements of our clients, ensuring satisfaction in every project

  • What makes rubber injection molding efficient?

    Rubber injection molding is efficient due to its ability to produce high volumes with minimal waste, consistent quality, and reduced production time.

  • How does silicone mold rubber benefit my project?

    Silicone mold rubber offers exceptional flexibility and heat resistance, ideal for products that must endure extreme conditions while maintaining their shape and functionality.

  • Why choose EPDM rubber for molding?

    EPDM rubber is chosen for its excellent resistance to weather, UV rays, and temperature variations, making it ideal for outdoor and high-stress applications.

  • What is the advantage of custom rubber molding?

    Custom rubber molding allows for precise tailoring of rubber parts to specific dimensions and properties, ensuring a perfect fit for the intended application.

Rapid Manufacturing Latest Blogs

CNC Shop.jpg
2026-01-15
CNC Machine Shop Guide: What to Look for Before You Place an Order

A bad CNC machine shop doesn't just cost you money. It costs you time — and sometimes an entire production run. The quote looked great. The lead time seemed reasonable. Then parts show up out of spec, or worse, they don't show up at all.This guide breaks down what actually matters when choosing a CN

View More
2024-05-14
Sheet Metal Types You Can Use in Fabrication

There are various types of sheet metals you can use in fabrication. Construction, aerospace, automotive, and medical industries use different sheet metal varieties to complete their production goals. With today's manufacturing technology, you can use sheet metals to create various products with utmo

View More
Acetal Vs Delrin,jpg.png
2025-12-24
Acetal Vs Delrin: A Side-by-Side Breakdown for Smarter Material Selection

Here's a question that trips up even seasoned engineers: Is Delrin just acetal with better marketing? The short answer: yes and no. The long answer could save you thousands in material costs and machining headaches. When you're spec'ing parts for CNC machining, injection molding, or rapid prototypin

View More

TEAM MFG is a rapid manufacturing company who specializes in ODM and OEM starts in 2017.

Quick Link

Tel

+86-0760-88508730

Phone

+86-15625312373

Email

ericchen19872017@gmail.com
Copyrights  2025 Team Rapid MFG Co., Ltd. All rights reserved.Privacy Policy
