High Pressure Die Casting

Welcome to Team-MFG's dedicated space on High Pressure Die Casting—a realm where innovation meets precision, and possibilities are forged under immense pressure.

Dive into the heart of manufacturing excellence, explore the nuanced landscape of its Advantages And Disadvantages, and witness the diverse Applications that make this process an indispensable force in the industry.

Join us on this journey of discovery as we shed light on the art and science behind High Pressure Die Casting, empowering you with insights that shape the future of manufacturing.

Get A Quote

You are here: Home » Services » High Pressure Die Casting Service

What is High Pressure Die Casting

Team-MFG excels in high-pressure die casting, injecting molten metal into custom steel dies at significant pressures. This streamlined process ensures rapid and cost-effective production of metal parts with impeccable surface finish and dimensional accuracy.

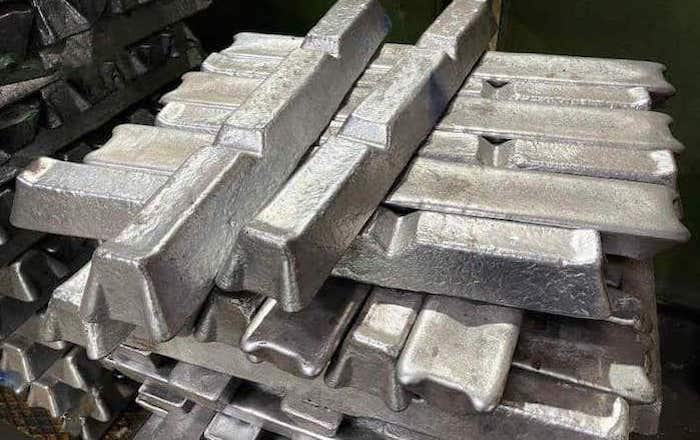

Our expertise spans various metals, including aluminum, zinc, and magnesium, making us the go-to choice for large-scale manufacturing in automotive, aerospace, and medical industries. Team-MFG leverages high pressures and speeds in die casting, delivering precision and efficiency for your metal part needs. Experience innovation and excellence with Team-MFG in metal manufacturing.

How Does High Pressure Die Casting Work？

Prepare the Mold

The first step in High Pressure Die Casting is the preparation of the mold. The mold, also known as the die, is a carefully designed cavity that determines the final shape of the product. It's typically made of two parts, the cover die, and the ejector die, which come together to form the desired shape. The mold is preheated to a specific temperature to ensure proper metal flow and solidification during the casting process.

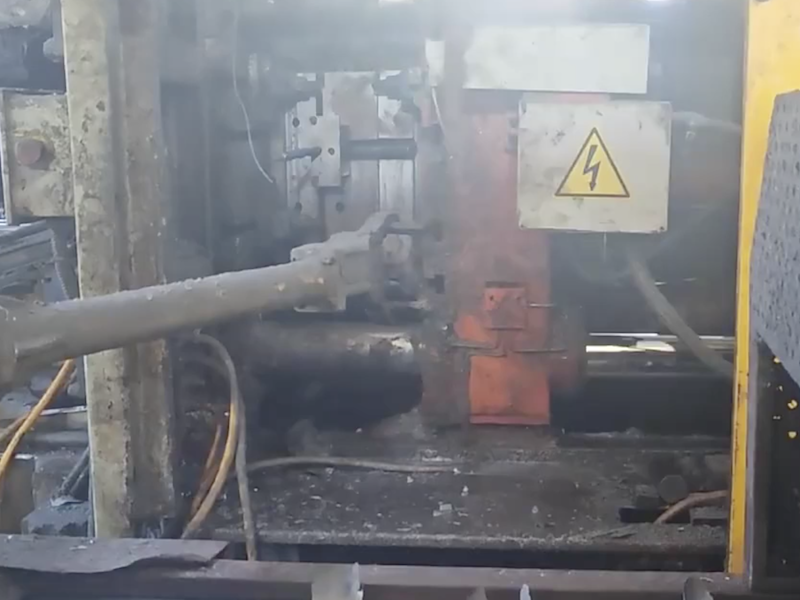

Inject the Material

Once the mold is ready, the next step is to inject the molten metal into it. This is a crucial stage and can be executed through two main methods: Hot Chamber Injection and Cold Chamber Injection.

Hot Chamber Injection

Hot Chamber Injection is suitable for metals with low melting points, such as zinc, tin, and lead. In this method, the injection system is immersed in a molten metal bath. The plunger, which is part of the injection system, is used to push the molten metal into the die cavity under high pressure. This process ensures a continuous and fast casting cycle, making it efficient for mass production.

Cold Chamber Injection

For metals with higher melting points, like aluminum and copper, Cold Chamber Injection is employed. In this method, the molten metal is poured into a separate chamber, and a plunger is used to transfer the metal into the die cavity. The advantage of this approach is that it prevents the contact between the molten metal and the injection system, reducing wear and prolonging the life of the components.

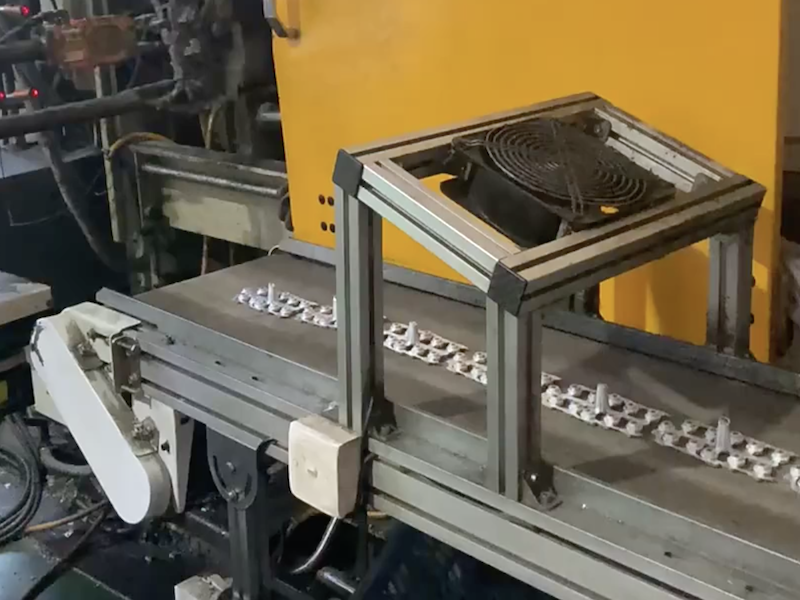

Part Injection

Once the molten metal has solidified inside the mold and taken the shape of the cavity, the next step is to remove the cast part from the mold. The mold is opened, and the ejector pins push the casting out. This step requires precision and care to avoid any damage to the newly formed part.

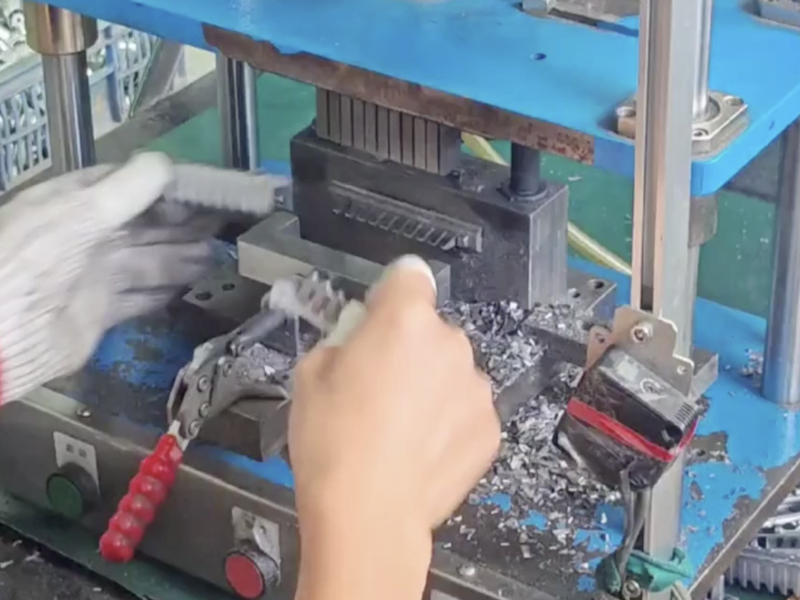

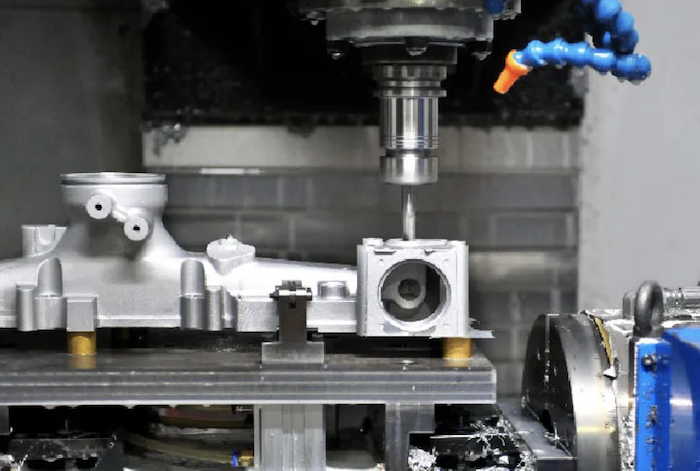

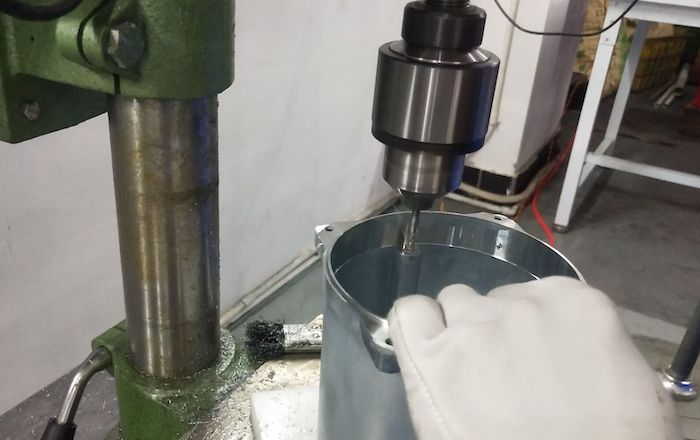

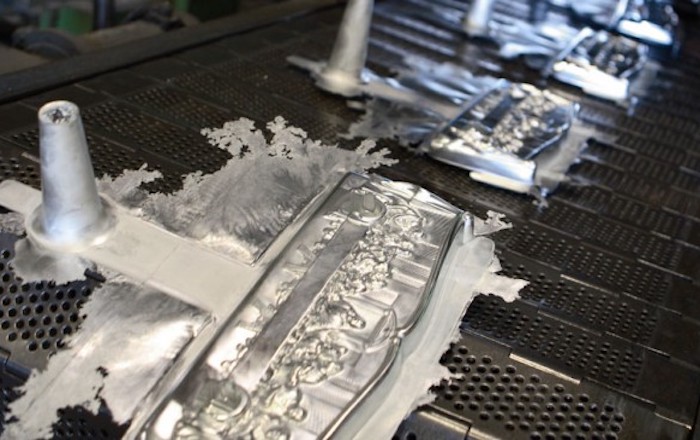

Trim the Excess Material

After the part is removed from the mold, it often contains excess material, known as flash, which needs to be trimmed off. Flash occurs at the parting line of the mold, where the two halves meet. Trimming is essential for achieving the final desired shape and ensuring that the part meets the required specifications.

High Pressure Die Casting Advantages And Disadvantages

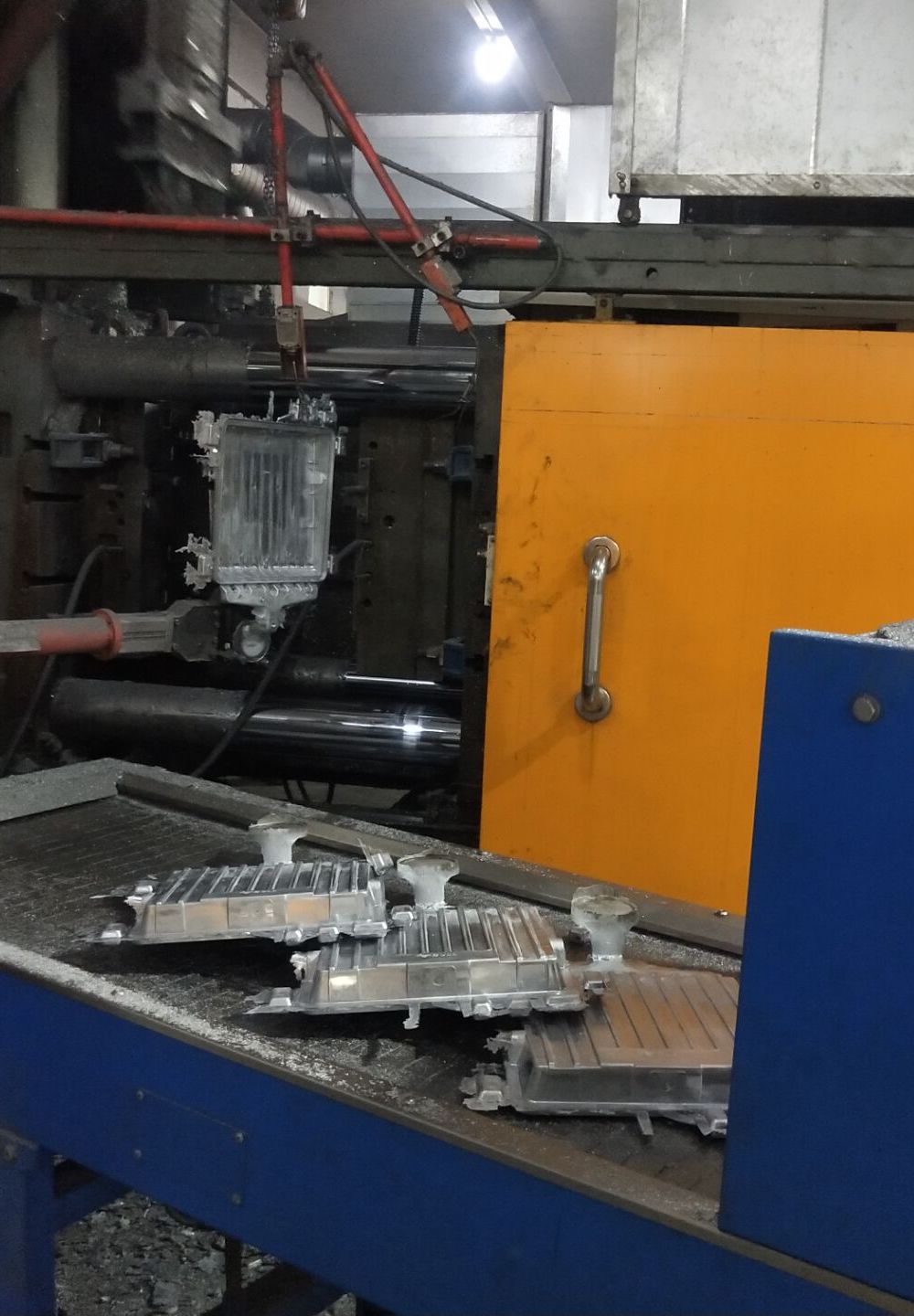

Advantages

Higher Production Rates:

Team-MFG's High Pressure Die Casting ensures swift and efficient metal part production, meeting high-volume demands with ease.

Good Quality Parts Manufactured:

Consistent precision and tight tolerances make Team-MFG's High Pressure Die Casting a reliable choice, producing superior parts that exceed industry standards.

Ability To Create Thin Walls:

Team-MFG's High Pressure Die Casting offers versatility by crafting intricate designs with thin walls, making it ideal for industries requiring lightweight structures.

Achieve Complex Design:

Team-MFG's High Pressure Die Casting is the solution for intricate designs, allowing designers to innovate and create sophisticated components.

Durable Tools:

Durable molds in Team-MFG's High Pressure Die Casting contribute to cost-effectiveness and reliability in high-volume production runs.

Disadvantages

Requires Complex and Expensive Equipment:
High Pressure Die Casting offers efficiency but demands sophisticated and costly machinery.
Comparatively High Startup and Operation Costs:
While ensuring high-quality production, High Pressure Die Casting involves relatively higher startup and operational expenses.
Less Suited to Limited Production Runs or Individual Casting:
High Pressure Die Casting excels in high-volume production scenarios but may not be the most cost-effective choice for limited runs or individual casting needs.

Application of High Pressure Die Casting

High Pressure Die Casting (HPDC) stands as a versatile and efficient manufacturing process, finding widespread applications across diverse industries.

Automotive

The automotive industry is a primary beneficiary of High Pressure Die Casting due to its ability to produce lightweight yet durable components. The demand for such components has surged, driven by the need for fuel-efficient vehicles without compromising on strength.

This process facilitates the creation of intricate shapes and thin-walled sections, enhancing fuel efficiency. Aluminum, magnesium, and zinc alloys, with their favorable strength-to-weight ratios, are commonly employed in automotive HPDC. This aligns seamlessly with the industry's pursuit of sustainability, enabling substantial reductions in vehicle weight, contributing to lower fuel consumption, and reduced emissions.

Aerospace

In the aerospace sector, precision and performance are paramount, making High Pressure Die Casting an integral part of manufacturing processes. Aircraft components demand materials that are lightweight yet possess high structural integrity.

Critical aerospace components like engine parts, airframe components, and structural elements benefit from HPDC's ability to create intricate and complex designs with precision. This ensures that aerospace manufacturers can meet the demanding specifications required for safe and efficient flight. The lightweight properties of materials produced through HPDC contribute to fuel efficiency, reducing operational costs and environmental impact, aligning with the industry's commitment to innovation and safety.

Medical

In the medical field, precision, reliability, and biocompatibility are crucial, making High Pressure Die Casting a valuable tool in the production of various medical devices and equipment. The demand for complex designs and lightweight materials finds a suitable match in HPDC.
Medical equipment, such as diagnostic devices, patient monitoring systems, and imaging components, often requires intricate shapes and designs that are challenging to achieve through traditional manufacturing processes. HPDC addresses these challenges by providing a cost-effective and efficient method for producing such components.
Materials like aluminum, magnesium, and zinc, known for their biocompatibility and corrosion resistance, become preferred choices in medical HPDC. The lightweight nature of the produced components proves particularly advantageous in portable medical devices, enhancing their usability and maneuverability.

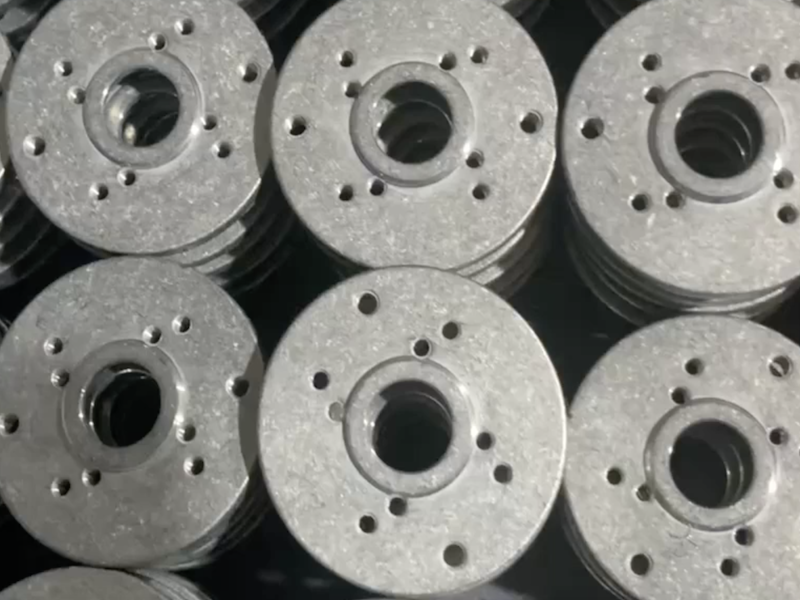

High Pressure Die Casting Case Studies

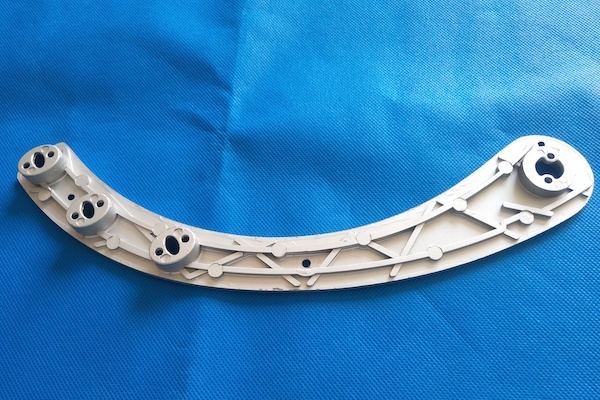

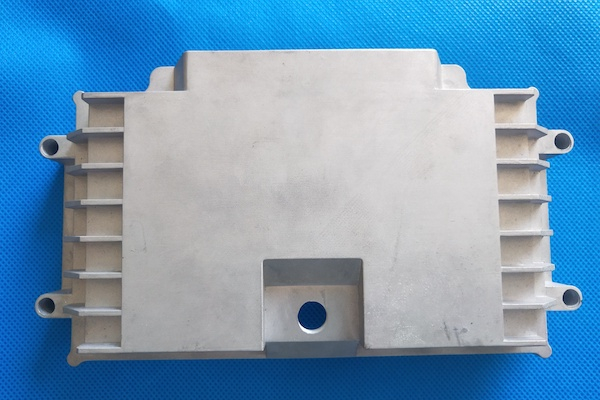

High Pressure Aluminum Die Casting

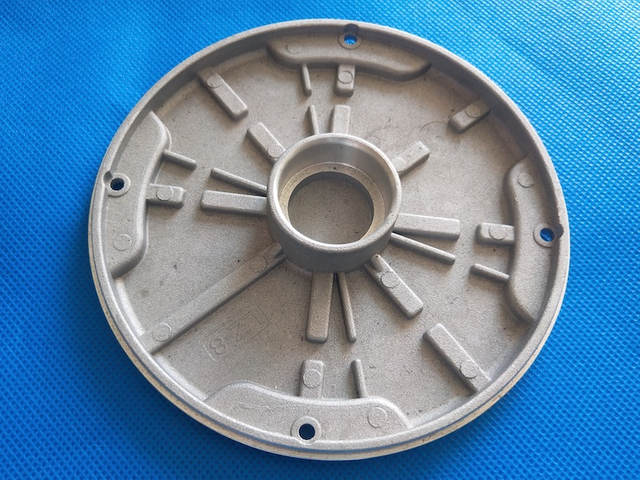

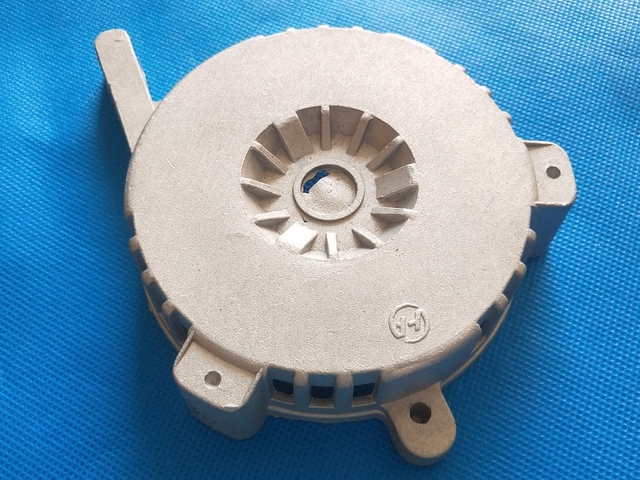

Custom Pressure Die Casting Cover Parts
