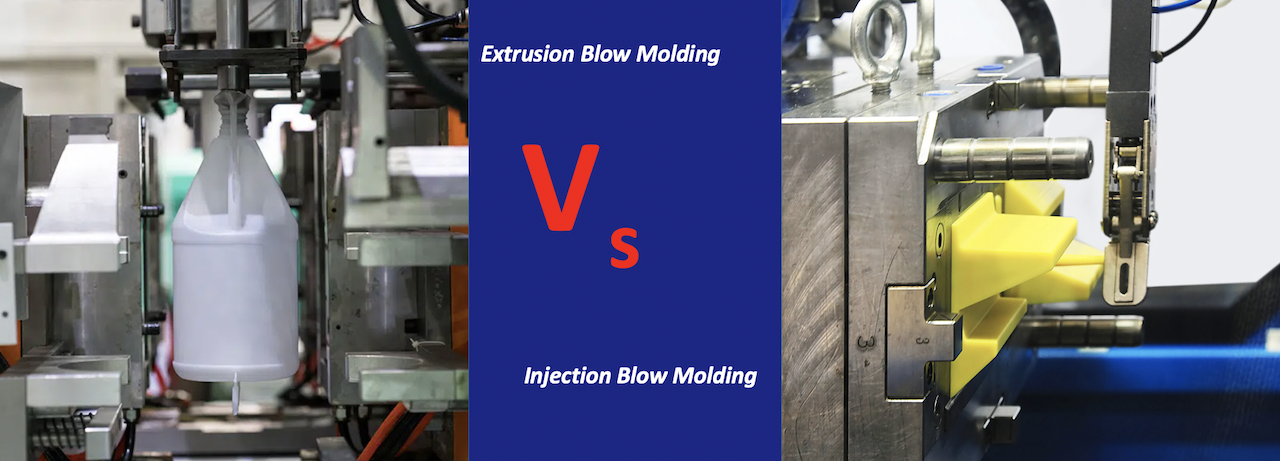

Blow molding is essential in creating countless plastic products we use daily. But which method is better: injection blow molding or extrusion blow molding? Understanding these two processes is key to optimizing production. In this post, you’ll learn the differences, advantages, and applications of each molding method, helping you choose the right one for your manufacturing needs.
Blow molding is a plastic forming process used to create hollow parts. It involves heating a plastic material until it becomes molten, then forcing it into a mold cavity and inflating it with compressed air. This process causes the plastic to expand and take the shape of the mold, resulting in a hollow part.
There are three main types of blow molding:
Extrusion Blow Molding (EBM)
Injection Blow Molding (IBM)
Injection Stretch Blow Molding (ISBM)
Each type has its own unique characteristics and advantages.
| Type | Description |
|---|---|
| EBM | Molten plastic is extruded into a tube-like parison, which is then captured by a mold and inflated with air. |
| IBM | Plastic is injection molded onto a core pin, then rotated to a blow molding station where it's inflated and cooled. |
| ISBM | Similar to IBM, but with an additional step of stretching the preform before blowing. |
Blow molding is crucial for creating a wide range of hollow plastic parts. These include:
Bottles and containers
Automotive components (e.g., fuel tanks)
Toys and sporting goods
Medical devices
It's an efficient and cost-effective way to produce these parts in large quantities. The process allows for a high degree of design flexibility and can accommodate various plastic materials.
With blow molding, manufacturers can create complex shapes and sizes that would be difficult or impossible with other methods. This versatility makes it an essential process in many industries.
Injection blow molding (IBM) is a manufacturing process that combines injection molding and blow molding techniques. It's used to create hollow plastic parts with precise dimensions and complex shapes.
The process involves several key steps:
Injection molding of the preform: Molten plastic is injected into a preform mold, creating a hollow, tube-like shape with a finished neck and threaded area.
Transfer of the preform: The preform is transferred on a core rod to the blow molding station. This is done while the preform is still hot.
Inflation and cooling: At the blow molding station, the preform is placed into a blow mold. Compressed air is then used to inflate the preform, causing it to expand and take the shape of the mold cavity. The part is cooled until it solidifies.
Ejection: Once cooled, the finished product is ejected from the mold.
IBM offers several advantages:
High production efficiency, as the process is automated and can produce parts quickly.
Ability to create complex, high-precision parts with tight tolerances.
Minimal material waste, as the preform is precisely metered.
However, there are also some disadvantages:
Higher initial costs due to the need for expensive injection mold tooling and specialized equipment.
Limited to smaller product sizes, as the preforms must be small enough to be efficiently injection molded.
Common materials used in IBM include:
Polyethylene terephthalate (PET)
High-density polyethylene (HDPE)
Polypropylene (PP)
These materials offer good strength, clarity, and barrier properties.
Typical applications of IBM include:
Small bottles and containers for cosmetics, pharmaceuticals, and single-serve beverages.
Medical devices, such as syringes and vials.
Precision components for automotive and electronics industries.
| Advantages | Disadvantages |
|---|---|
| High production efficiency | Higher initial costs |
| Complex, high-precision parts | Limited to smaller sizes |
| Minimal material waste | - |
Overall, IBM is an excellent choice for producing high-quality, precision hollow parts in large quantities. It's particularly well-suited for applications that require tight tolerances and consistency.

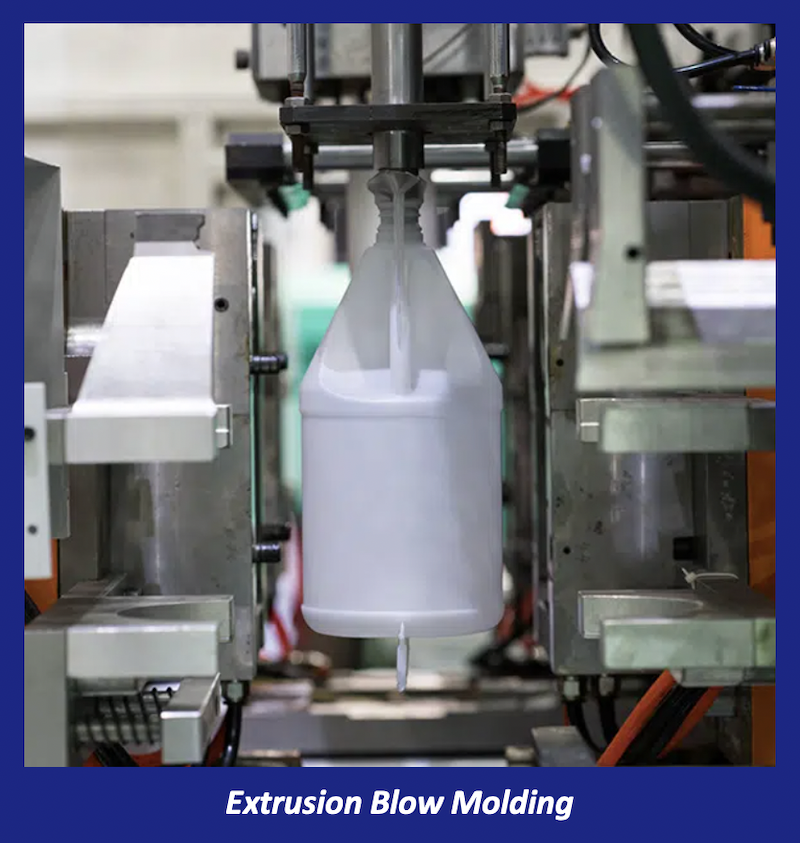

Extrusion blow molding (EBM) is a manufacturing process used to create hollow plastic parts. It involves melting plastic material and extruding it into a hollow tube called a parison.
The key steps in EBM are:
Melting and extrusion: Plastic pellets are melted in an extruder and forced through a die to form the parison. The parison is a continuous, hollow tube of molten plastic.
Clamping: The mold closes around the parison, pinching off the bottom and top. This forms a sealed, hollow shape.
Inflation: Compressed air is blown into the parison, causing it to expand and take the shape of the mold cavity. The plastic cools and solidifies.
Cooling and ejection: Once the part has cooled sufficiently, the mold opens and the finished product is ejected.
EBM offers several advantages over injection blow molding:
Lower tooling costs, as the molds are simpler and less expensive to produce.
Ability to create larger, hollow parts, as there are no size limitations imposed by an injection molding machine.
Flexibility in design and material selection, as EBM can accommodate a wider range of plastics.
However, EBM also has some disadvantages:
Lower production efficiency compared to injection blow molding, as the process is slower.
Difficulty in achieving high precision and complex geometries, as the parison is less precise than an injection molded preform.
Common materials used in EBM include:
High-density polyethylene (HDPE)
Low-density polyethylene (LDPE)
Polypropylene (PP)
Polyvinyl chloride (PVC)
These materials are relatively inexpensive and offer good chemical resistance and durability.
Typical applications of EBM include:
Large containers, such as fuel tanks and drums.
Toys and sporting goods, like balls and playground equipment.
Automotive parts, such as ducts and reservoirs.
Household items, like watering cans and storage bins.
| Advantages | Disadvantages |
|---|---|
| Lower tooling costs | Lower production efficiency |
| Larger part sizes | Difficulty with precision and complexity |
| Flexibility in design and materials | - |
Overall, EBM is a versatile and cost-effective process for producing large, hollow plastic parts. It's well-suited for applications where size and design flexibility are more important than precision and production speed.
When choosing between injection blow molding (IBM) and extrusion blow molding (EBM), several factors should be considered. Let's take a closer look at how these processes compare.
Size and complexity: IBM is better suited for smaller, more complex parts. EBM can produce larger, simpler shapes.
Wall thickness: IBM offers more consistent wall thickness. EBM may have variations.
Surface finish: IBM typically provides a smoother, more polished surface. EBM parts may have visible parting lines or other imperfections.
Injection vs. Extrusion: In IBM, plastic is injected into a mold to form a preform. In EBM, plastic is extruded into a parison.
Material handling: IBM uses precise metering of plastic. EBM relies on continuous extrusion.
Mold differences: IBM requires a preform mold and a blow mold. EBM uses a single mold.
Tooling costs: IBM has higher tooling costs due to the need for preform molds. EBM tooling is generally less expensive.
Production speed: IBM is faster, as the preforms are already formed. EBM requires time for extrusion.
Material waste: IBM has minimal waste, as the preforms are precisely metered. EBM may have more waste from trimming.
2D vs. 3D: EBM is often used for 2D products like bottles. IBM is better for 3D shapes.
Precision: IBM offers higher precision and tighter tolerances. EBM is less precise.
Material usage: IBM can use a wider range of materials. EBM is more limited.
Possibilities: IBM allows for more intricate designs and features. EBM is better for simpler shapes.
Limitations: IBM is limited by the size of the preform. EBM has fewer size restrictions.
Design importance: Proper design is crucial for both processes to ensure optimal results.
Initial investment: IBM has higher upfront costs for equipment and tooling. EBM requires less initial investment.
Cost per unit: IBM typically has lower cost per unit for high volumes. EBM may be more cost-effective for smaller runs.
Other factors: Material costs, labor, and machine maintenance also affect overall production costs.
| Factor | Injection Blow Molding | Extrusion Blow Molding |
|---|---|---|
| Size | Smaller, complex | Larger, simpler |
| Precision | High | Lower |
| Tooling costs | Higher | Lower |
| Production speed | Faster | Slower |
| Design flexibility | More intricate | Simpler shapes |
| Cost per unit | Lower for high volumes | Better for small runs |
In summary, injection blow molding and extrusion blow molding serve different purposes in manufacturing. Injection blow molding offers precision for small, complex parts, while extrusion blow molding excels in producing large, hollow objects. Understanding each process’s strengths and limitations is crucial for making informed decisions. Choose the right method based on your product's size, complexity, and production volume. When in doubt, consult with experts to ensure optimal results. Both processes have unique benefits, so consider your specific needs carefully.
Choosing the best manufacturing process for your product, injection blow molding or extrusion blow molding? Contact TEAM MFG for for expert advice on material selection, tooling costs, and production efficiency. We offer one-stop precision manufacturing solution, with extensive experience in custom molding, prototyping, CNC machining, and low- to high-volume production — serving clients across the worldwide.
Mobile: +86-15625312373
Email: ericchen19872017@gmail.com
Whether you need a quote, technical advice, detailed process comparisons, or support starting your project, our engineering team is ready to support you. Connect with us today — we’re here to bring your ideas to life.
| Aspect | Injection Blow Molding (IBM) | Extrusion Blow Molding (EBM) |
|---|---|---|
| Preform Creation | Injection-molded preform is first formed in a mold | Molten tube (parison) is created through extrusion |
| Forming Process | Preform is transferred to a blow station for inflation | Parison is inflated directly inside the mold |
| Dimensional Accuracy | Very high precision and uniform wall thickness | Moderate accuracy with variable wall thickness |
| Design Flexibility | Limited geometry complexity | High flexibility for complex shapes |
| Tooling Cost | Higher tooling investment | Lower tooling cost |
| Typical Advantages | Excellent consistency, smooth finish, tight tolerances | Cost-effective, supports handles and irregular designs |
| Common Applications | Medical, pharmaceutical, cosmetic containers | Detergent bottles, industrial containers, large hollow parts |
Injection blow molding provides better dimensional accuracy, not only in the general dimensions but also in the wall thickness control. Comparing to the EBM parts, the IBM parts have tighter tolerances, smoother surfaces, and more consistent neck finishes.
It should be extrusion blow molding! It is more suitable for complex or irregular shapes components/parts such as containers with handles, pinch-offs, or varying wall thicknesses. IBM excels in precision and consistency, but limited in geometry.
HDPE, LDPE, PP, PET are the commonly used materials for both injection blow molding and extrusion blow molding. Depending on product requirements such as strength, clarity, chemical resistance, and regulatory compliance to select the materials is important!
