Your brass inserts keep falling out. Threads strip after 10 cycles. Parts crack during assembly. Sound familiar?
Insert molding failures cost manufacturers $2.3 million annually in scrapped parts and production delays. But here's what most engineers miss: 78% of insert molding defects happen before the mold ever opens. The solution isn't better equipment—it's understanding the process from design to inspection.
Here's what you'll master:
● Brass threaded inserts vs. metal screw inserts: Which holds 3x stronger
● Thread design secrets for plastic insert molding that prevent stripping
● Insert molding vs. overmolding: cost breakdowns and strength comparisons
● Medical device and automotive injection molding compliance requirements
● ABS injection setup parameters that prevent insert displacement
● Quality control checkpoints that catch 95% of defects early
We've helped 1,300+ companies perfect their insert molding process over 12 years. TEAM MFG's one-stop approach means your CAD files become finished parts without juggling multiple suppliers. Let's fix those insert problems for good.
You're staring at two insert options, and the wrong choice means stripped threads, cracked plastic, or worse—field failures.
The pull-out strength difference tells the whole story.
Brass threaded inserts consistently outperform metal screw inserts in holding power. The knurled or diamond-pattern exterior creates mechanical interlocking with thermoplastics. Metal screw inserts? They cut threads directly into plastic—and that's where problems start.
Brass dominates when you need:
● Repeated assembly (maintains thread integrity after multiple cycles)
● High torque applications (automotive engine components)
● Electrical grounding (brass offers excellent conductivity)
● Corrosion resistance without special coatings
The knurled exterior isn't just for show. Those patterns increase surface area contact with your plastic substrate. Heat-staking or ultrasonic insertion melts plastic into every groove, creating a permanent mechanical bond.
Self-tapping steel and stainless inserts cost less upfront. They work best for:
● One-time assembly applications
● Low-stress environments
● Non-conductive requirements
● Magnetic properties for automated handling
Here's what kills metal screw inserts: thread wear. Each removal cuts deeper into the plastic boss. By the third disassembly, you're basically threading into dust. The plastic can't recover.
Boss wall thickness makes or breaks your design. Get this wrong, and nothing else matters.
Minimum boss diameter calculations:
● Brass inserts: 2.0-2.5x the insert outer diameter
● Metal screw inserts: 1.5-2.0x the insert outer diameter
Got an M4 brass insert (6mm OD)? Your boss needs 12-15mm outer diameter. Thinner walls = stress cracks during insertion or use.
ABS and PC love brass inserts. The insertion temperature (250-350°F) matches their glass transition perfectly. Metal screw inserts work, but you lose holding power in softer plastics.
Glass-filled materials? Different game entirely. The glass fibers interfere with thread cutting, making brass inserts mandatory for reliable performance.
Factor | Brass Threaded | Metal Screw |
Initial cost | Higher | Lower |
Assembly cycles | 20+ | 1-5 |
Installation time | Slower (heat/ultrasonic) | Faster (direct drive) |
Pull-out strength | Superior | Adequate |
Boss size required | Larger | Smaller |
Pro tip: Testing insert retention? Use a steady pull rate of 0.5 inches per minute. Jerky pulls give false readings that won't match real-world performance.
TEAM MFG helps you pick the right insert before cutting steel. We run pull-out tests on your actual materials—not generic data sheets. Our insert molding services handle both types, so you get honest recommendations, not sales pitches.

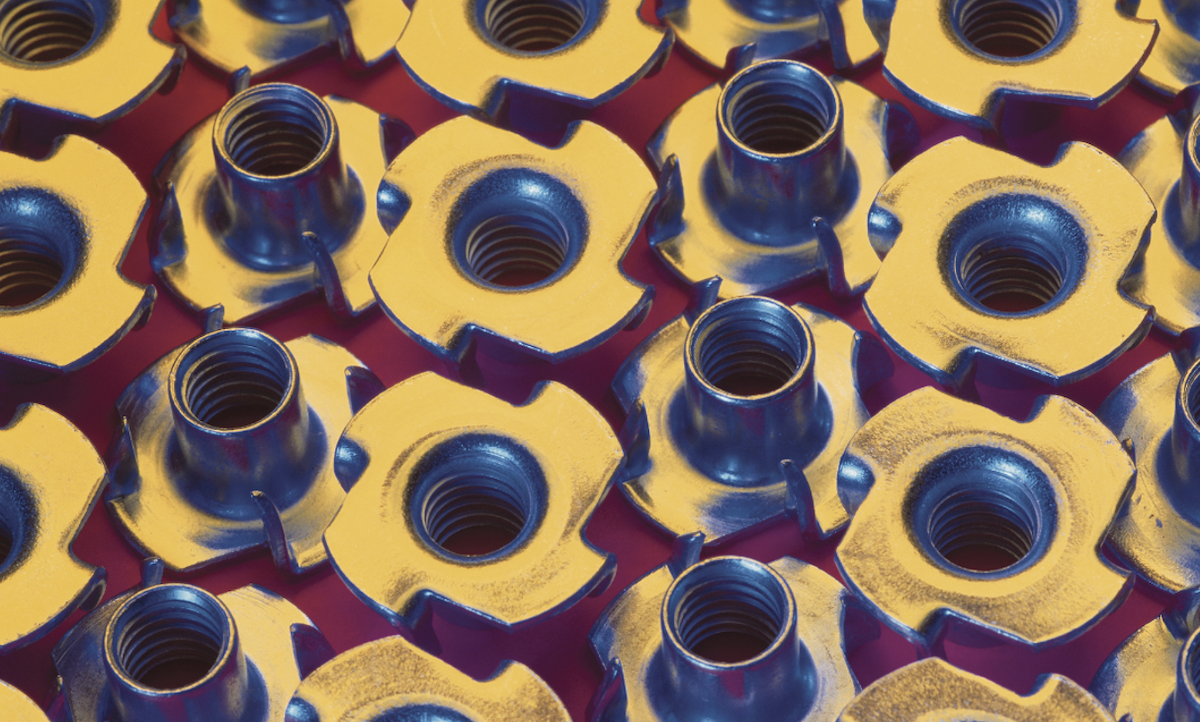

Stripped threads cost you credibility. One customer complaint about a loose screw, and suddenly your whole product feels cheap.
Thread stripping happens because engineers copy metal thread specs for plastic applications. Plastic behaves differently under load. It creeps. It relaxes. It needs its own rulebook.
Forget 90-degree sharp threads. Plastic needs 60-degree thread angles to distribute stress properly. Sharp threads act like tiny knives, concentrating force at the root.
Modified Unified Thread Standard (UTS) profiles work best:
● Root radius: 0.1-0.15x pitch
● Crest flat: 0.125x pitch minimum
● Thread depth: 0.5-0.6x pitch (not the standard 0.65x)
Shallow threads in plastic? They're stronger. Counter-intuitive, but stress distribution beats maximum engagement depth.
Fine threads strip. Period.
Go coarse or go home:
● M3: Use 0.5mm pitch (not 0.35mm fine)
● M4: Use 0.7mm pitch (not 0.5mm fine)
● M5: Use 0.8mm pitch (not 0.5mm fine)
Coarse threads give you 40% more material between each thread. More plastic = more strength. Plus, coarse threads handle the thermal expansion mismatch between metal inserts and plastic housings.
Add a 0.3-0.5mm undercut at the thread start. This relief zone prevents stress concentration where the insert meets the boss surface. Without it? Micro-cracks form during the first assembly torque.
The undercut also creates space for plastic flash during heat-staking. No more threads clogged with melted material.
Tapered lead-ins save threads. Design a 15-degree taper for the first 2-3 threads. This guides screws into perfect alignment before full thread engagement.
Boss height matters too:
● Minimum: 1.5x screw engagement length
● Optimal: 2x screw engagement length
● Maximum: 2.5x (longer = more flex = stripped threads)
External boss features that actually work:
● Ribs: 0.6x wall thickness, 4-6 ribs radially
● Draft angle: 0.5-1 degree (aids ejection, reduces stress)
● Gate location: 90+ degrees from screw axis
Internal thread features for insert molding:
● Thread relief groove at base
● Rounded thread roots (no sharp corners)
● 0.1mm clearance for thermal expansion
Target torque = 50% of stripping torque. Any higher risks of field failures from over-enthusiastic assembly workers.
Calculate stripping torque:
Test 10 samples to failure
Record lowest value
Multiply by 0.5
Round down to nearest 0.1 Nm
Document this spec clearly. "Tighten until snug" instructions = stripped threads waiting to happen.
● ABS: Reduce thread depth 10% more. ABS notch sensitivity means standard threads concentrate stress.
● PC/ABS blends: Increase root radius to 0.2x pitch. The blend's two-phase structure needs gentler transitions.
● Glass-filled plastics: Add 15% to boss diameter. Glass fibers create weak planes that need more bulk material for strength.
Pro tip: Prototype with clear polycarbonate first. You'll see stress patterns developing around threads before failure. White stress marks = redesign needed.
TEAM MFG's engineering team reviews your thread designs before cutting steel. We've seen every stripping failure mode across 15,000+ projects. Small geometry tweaks during design save massive headaches during assembly.
Factor | Insert Molding | Overmolding |
Tooling Cost | $15,000-40,000 (single cavity) | $25,000-60,000 (requires 2+ molds or rotary) |
Part Cost (10K units) | $2.50-5.00/part | $3.50-7.00/part |
Cycle Time | 30-45 seconds | 45-90 seconds (2 shots) |
Bond Strength | Mechanical only (2-5 MPa) | Chemical + mechanical (8-15 MPa) |
Design Flexibility | Limited to insert placement | Full encapsulation possible |
Material Waste | 5-8% | 10-15% |
Labor Required | Higher (manual insert loading) | Lower (automated process) |
Ideal Applications | Threaded fasteners, electrical contacts | Soft-touch grips, sealed assemblies |
Volume Break-Even | Profitable at 5,000+ units | Profitable at 25,000+ units |
Typical Defect Rate | 2-3% | 1-2% |

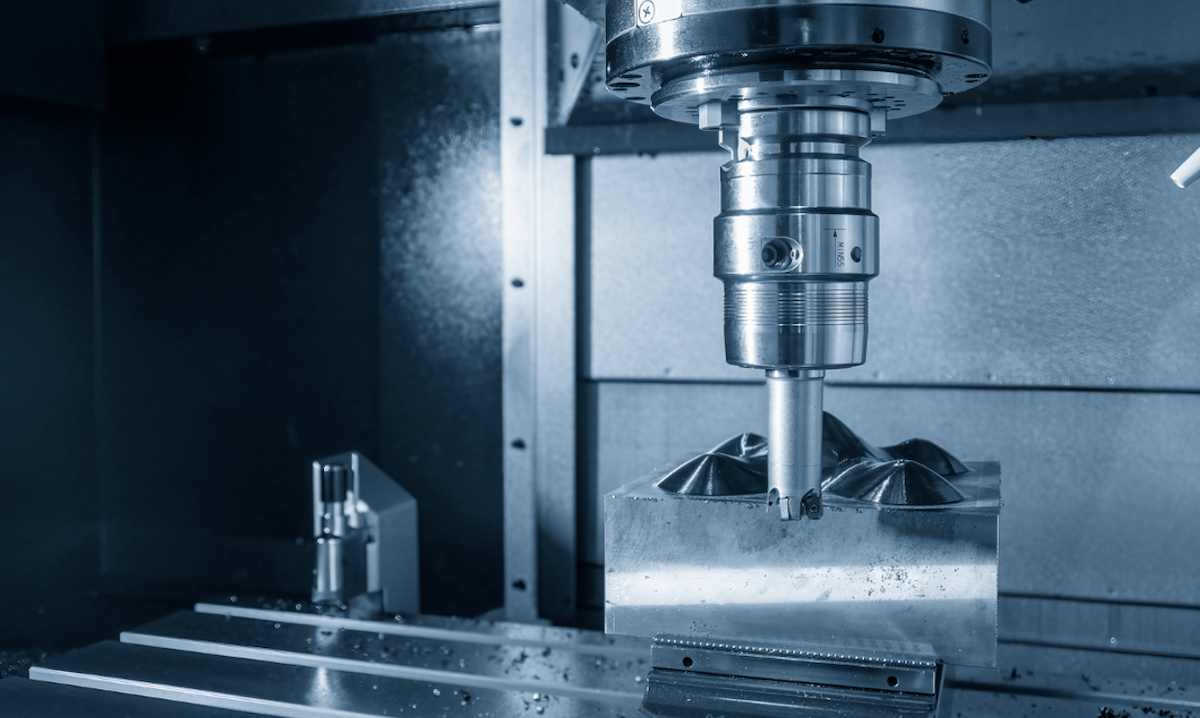

Medical devices demand documentation at every step. Your insert molding process needs ISO 13485 certification and FDA-registered facilities.
Key requirements:
● Material traceability: Lot numbers for resin, inserts, colorants
● Biocompatibility testing: USP Class VI or ISO 10993
● Clean room molding: Class 7 or 8 (100,000 particles/m³)
● Validation protocols: IQ/OQ/PQ for each mold
Automotive insert molding follows IATF 16949 standards. Every part needs PPAP documentation—dimension reports, material certs, capability studies.
Critical specs:
● Heat aging: 1,000 hours at 85°C minimum
● Chemical resistance: Testing against oils, coolants, fuels
● Vibration testing: 10-2,000 Hz frequency sweep
● Pull-out forces: 3x safety factor on maximum load
Both industries require statistical process control. Monitor insert placement accuracy, pull-out force, and dimensional stability. Cpk values above 1.33 keep auditors happy.
The biggest compliance killer? Inadequate change control. Switching insert suppliers or modifying gate locations triggers re-validation. Document everything. Even "minor" changes.
Insert floating ruins parts. You open the mold expecting perfect placement, but your brass insert shifted 2mm sideways. Now it's scrap.
Temperature control stops 80% of displacement issues. Get these parameters wrong, and physics works against you.
Melt temperature: 220-250°C (sweet spot: 235°C)
● Too hot (>250°C): ABS degrades, loses viscosity, can't hold inserts
● Too cold (<220°C): High pressure needed, inserts get pushed around
Mold temperature: 60-80°C (optimal: 70°C)
● Controls shrinkage around inserts
● Higher temps = better insert grip, but longer cycles
Insert pre-heat: 80-100°C
● Prevents thermal shock
● Reduces localized cooling that causes sink marks
Start gently. Ramp up gradually. Here's why:
1st stage (0-70% fill): 600-800 bar
● Low pressure prevents insert movement
● Fills around insert without disturbing position
2nd stage (70-95% fill): 800-1000 bar
● Increased pressure for complete fill
● Insert already locked by solidified plastic
Pack/hold pressure: 400-600 bar
● Compensates for shrinkage
● Too high = insert shifts during packing
Injection speed profile makes or breaks placement:
● Start: 20-30 mm/s (gentle flow around insert)
● Middle: 40-60 mm/s (main cavity fill)
● End: 15-25 mm/s (controlled packing)
Fast filling looks productive. Until your inserts end up cockeyed.
Never gate directly at an insert. The material jet pushes it off-center.
Optimal gating:
● Distance from insert: >20mm
● Multiple gates: Balance flow around inserts
● Submarine gates: Reduce shear, better aesthetics
Hold time = Gate freeze time + 2 seconds
Measure gate freeze with short shots at different hold times. When part weight stops increasing, that's your freeze time. Add 2-second buffer. This prevents insert movement during screw recovery.
Parameter | Range | Impact on Insert |
Back pressure | 3-5 bar | Too high = melt temp spike |
Screw RPM | 40-80 | Faster = more shear heat |
Cushion | 3-6mm | Consistent packing |
Decompression | 2-4mm | Prevents drool |
Pro tip: Use cavity pressure sensors near insert locations. Pressure spikes indicate potential displacement. Real-time monitoring beats finding problems after 1,000 parts.
Stop shipping bad parts. These five checkpoints catch problems before they multiply.
Before closing the mold:
● Visual confirmation: All inserts present?
● Orientation check: Right side up?
● Position verification: Centering pins engaged?
Simple? Yes. Skipped often? Also yes. One missing insert = expensive rework.
Pull the first 5 shots. Check:
● Insert depth: ±0.05mm from nominal
● Position accuracy: ±0.1mm XY tolerance
● Perpendicularity: <0.5° deviation
Use go/no-go gauges for speed. CMM verification every 500 shots confirms gauge accuracy.
Test schedule:
● First article: 3 samples
● Every 2 hours: 1 sample
● End of run: 3 samples
Record actual values, not just pass/fail. Trending catches degradation before failure.
Minimum pull-out force = 2.5x application requirement. Building connectors that see 50N service loads? You need 125N minimum pull-out.
Train operators to spot:
● Sink marks around inserts (low packing pressure)
● Flash on insert faces (worn mold or high pressure)
● Discoloration near inserts (overheating)
● Cracks at stress points (design or process issue)
Light boxes and magnification help. But trained eyes matter most.
Track these variables every hour:
● Cycle time consistency (±1 second)
● Cushion position (±0.5mm)
● Peak injection pressure (±50 bar)
● Insert pull-out force
When trends drift, investigate immediately. Don't wait for out-of-spec parts.
Document everything in real-time:
Lot: ABS-2024-1215
Insert batch: BR-5847
Operator: JD
Time: 14:30
Pull force: 187N ✓
Position: 0.02mm offset ✓
Visual: Pass
Digital beats paper. But paper beats nothing.
Red flag combos that predict failures:
● Rising cycle times + dropping pull forces = moisture in ABS
● Position drift + pressure increase = mold wear
● Sink marks + good pull force = packing pressure too low
Insert molding success comes down to details. Choose the right insert type, nail your thread design, and control every process parameter. The difference between profitable production and costly failures? Following these proven guidelines.
Key takeaways that transform your insert injection molding:
● Brass threaded inserts deliver superior holding power for repeated assembly cycles
● 60-degree thread angles and coarse pitches prevent stripping in plastic insert molding
● Preheat inserts to 80-100°C before insert mold placement to prevent displacement
● Gate location 20mm+ from inserts ensures proper flow without shifting
● Five quality checkpoints catch 95% of defects before they leave your facility
What is insert molding without the right manufacturing partner? TEAM MFG combines 12 years of insert molding expertise with complete in-house capabilities—from initial design review through final inspection. We help you optimize every parameter before production starts, preventing those expensive lessons learned the hard way.
Insert molding places pre-made components (like brass threaded inserts or metal screw inserts) into the mold before injecting plastic around them. The injection molded part bonds mechanically.
Overmolding vs insert molding differs because overmolding shoots plastic over an existing plastic part, creating chemical bonds between layers. Insert mold vs overmold comes down to your needs: thread inserts for plastic molding require insert molding, while soft-grip handles use overmolding.
Standard injection molding creates pure plastic parts—no additional components. Insert molding adds brass screw inserts, electrical contacts, or CNC milling thread components during the molding cycle.
Think of plastic insert molding as injection molding with extra steps. Both processes work for automotive injection molding and medical device injection molding, but insert molding adds functionality like threaded connections.
The three primary molding types are injection molding (melted plastic shot into molds), blow molding (hollow parts like bottles), and compression molding (material pressed between heated plates).
ABS injection represents the most common injection molding process. Insert molding is actually a specialized injection molding technique, not a separate category.
Mold inserts use hardened tool steels (H13, P20), stainless steels (420, 440C), or aluminum alloys (7075, 6061). Don't confuse mold inserts with molded-in inserts—brass threaded inserts and metal components get molded INTO parts. The mold insert itself forms the cavity shape and withstands thousands of injection cycles.
