English English Views: 0
Bronze eats carbide tools for breakfast. Yet most machine shops still treat it like brass or copper—then wonder why their surface finish looks like sandpaper and tooling costs explode. The truth? Bronze machining follows its own rules, and breaking them costs you time, money, and quality.
Whether you're cutting phosphor bronze bearings or aluminum bronze marine components, this guide shows you exactly how to machine bronze profitably. We're talking specific speeds, feeds, and the tooling tricks that actually work.
Here's what you'll master:
● Bronze grades and which CNC processes work best for each
● Exact cutting parameters for milling, turning, and drilling
● Surface treatments that prevent oxidation and boost part life
● Why bronze outperforms brass in critical applications
● Common machining challenges (and their 5-minute fixes)
● Cost-saving practices that cut machining time by 30%
We've machined over 4,000 bronze components at TEAM MFG across 12 years. From prototype to production, we know what works—and what's just expensive noise.
Bronze machining transforms raw bronze alloys into precision parts through controlled material removal. Think of it as sculpting, except your chisel spins at 3,000 RPM and costs $200.
Unlike steel or aluminum, bronze brings its own personality to the table. This copper-tin alloy machines beautifully when you respect it. Push too hard? You'll get work hardening. Go too slow? Say hello to built-up edge on your tools. The sweet spot sits right between aggressive and cautious—where chips flow like butter and your surface finish actually shines.
Not all bronze plays the same. Each alloy has its quirks:
● Phosphor Bronze (C510, C544): The machinist's friend—forgiving, consistent, minimal tool wear
● Aluminum Bronze (C954, C955): Tough as nails but abrasive; demands sharp tools and patience
● Silicon Bronze (C655): Machines like brass but stronger; perfect for marine hardware
● Bearing Bronze (C932, C936): Self-lubricating properties make it grabbier during cutting
Your machining approach changes with each type. Phosphor bronze lets you push harder—we run it at 400 SFM without breaking a sweat. Aluminum bronze? Dial it back to 200 SFM unless you enjoy replacing inserts every hour.
Sure, brass machines easier. Copper conducts better. But bronze brings wear resistance and corrosion immunity that others can't touch. Marine equipment, aerospace bushings, heavy machinery—when failure isn't an option, bronze gets the call. At TEAM MFG, we've seen bronze parts outlast brass alternatives by 3-5 years in saltwater environments.
Every bronze grade has a preferred CNC process. Match them wrong and you're fighting uphill. Match them right? Parts practically make themselves.
● Phosphor Bronze (C510, C521, C544)
Best for: CNC turning, Swiss machining
These grades love high-speed operations. The phosphorus content (0.2-0.4%) acts like built-in lubrication. We've turned C544 shafts at 500 SFM with standard HSS tools—try that with aluminum bronze and watch your tools disappear.
● Aluminum Bronze (C954, C955, C958)
Best for: Heavy milling, gear cutting
The 10-13% aluminum content makes these grades strong but abrasive. Carbide isn't optional—it's mandatory. Pro tip: Use TiAlN-coated tools and thank us later. The coating handles the heat these alloys generate at cutting speeds.
● Silicon Bronze (C651, C655)
Best for: 3-axis milling, engraving
Machines like a dream with zero lead content. Perfect for food-grade equipment and architectural details. Silicon bronze actually wants higher speeds—we push C655 to 450 SFM on our Haas VMCs without issues.
● Leaded Bronze (C932, C936, C93200)
Best for: High-volume turning, drilling
The 7-10% lead content makes chips break perfectly. Your cycle times drop by 25-30% compared to unleaded alternatives. Just remember: sharp tools only. Dull edges cause lead smearing that ruins the surface finish.
Bronze Type | Best Process | Worst Process | TEAM MFG Speed |
Phosphor | Turning, Threading | Deep drilling | 400-500 SFM |
Aluminum | Heavy milling | Fine threading | 200-250 SFM |
Silicon | 3-axis milling | Boring | 400-450 SFM |
Leaded | Volume production | Manual work | 350-400 SFM |
Forget the generic charts. Here's what we run every single day on real parts, with real deadlines.
Face Milling
● Speed: 300-400 SFM (phosphor), 200-250 SFM (aluminum bronze)
● Feed per tooth: 0.004-0.008"
● Depth of cut: 0.100-0.250" (go deeper—bronze likes it)
● Coolant: Flood only. Mist cooling creates thermal shock
End Milling (Slotting)
● Speed: Drop 20% from face milling values
● Feed: 0.002-0.004" per tooth
● Width of cut: 25-40% of cutter diameter
● Ramp angle: 2-3 degrees (never plunge straight down)
We learned this expensive lesson: bronze work-hardens when you baby it. A 0.001" pass creates more problems than a 0.050" pass. Take real cuts or watch your tools burn.

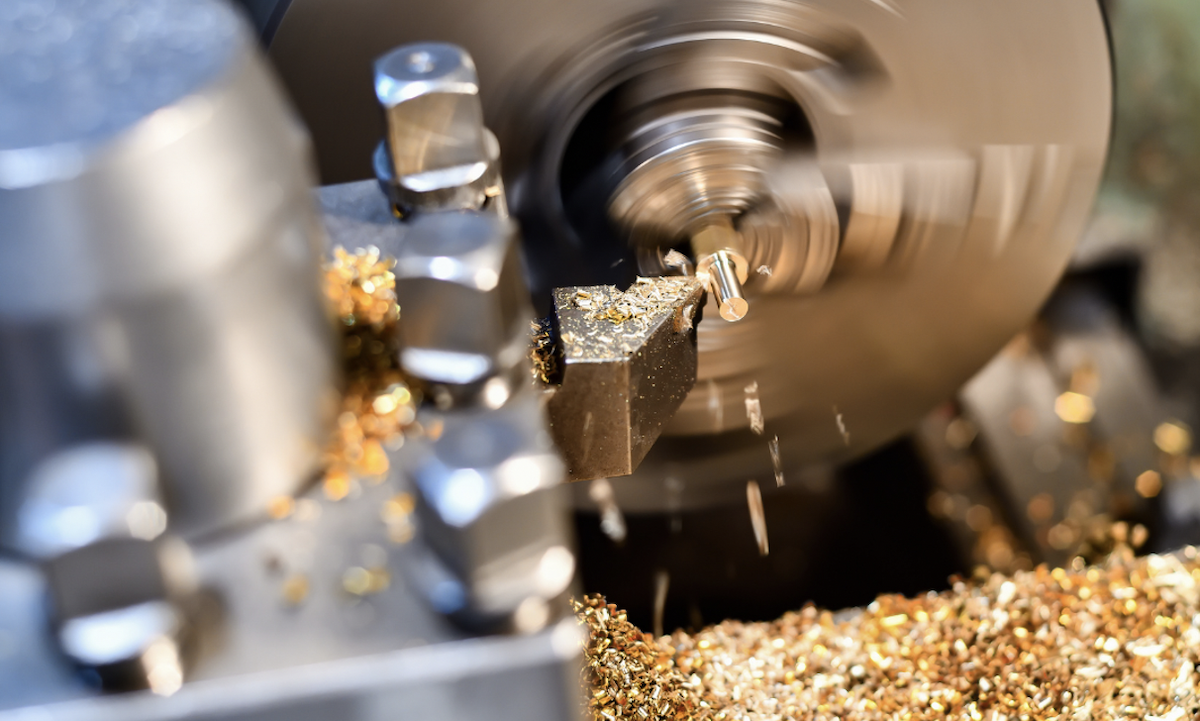

Roughing Passes
● Speed: 350-450 SFM (leaded), 250-350 SFM (unleaded)
● Feed: 0.008-0.015" per revolution
● Depth: 0.125-0.250"
● Insert: CNMG with sharp edge, positive rake
Finishing Passes
● Speed: Increase roughing speed by 15-20%
● Feed: 0.003-0.005" per revolution
● Depth: 0.010-0.030"
● Nose radius: 0.031" maximum (larger radii cause chatter)
Bronze drilling breaks every rule you know about steel:
Standard Drilling
● Speed: 80-120 SFM (yes, that slow)
● Feed: 0.004-0.008" per revolution
● Peck depth: 1x diameter maximum
● Point angle: 118 degrees for most, 135 degrees for aluminum bronze
Deep Hole Drilling (>3x diameter)
● Speed: 60-80 SFM
● Feed: 0.002-0.004" per revolution
● Peck depth: 0.5x diameter
● Dwell: 0.5 seconds at bottom (clears chips)
Here's the kicker: parabolic flutes cut drilling time by 40%. The improved chip evacuation means fewer pecks. We switched our entire drill library to parabolic for bronze work—the $30 premium per drill pays for itself in two jobs.
Water-soluble works. Straight oil works better. But here's what nobody mentions: 5-7% concentration for water-based coolant, not the standard 8-10%. Higher concentrations leave residue that stains bronze surfaces. At TEAM MFG, we run Blaser Swisslube at 6% for all bronze work—perfect finish, zero staining, and tools last 30% longer than with generic coolants.
Raw bronze oxidizes. Not tomorrow, not next week—starting right now. That beautiful golden finish turns brown, then green, unless you protect it properly.
● Passivation (The Quick Win): Dip parts in citric acid solution (10-20%) for 4-10 minutes. Creates an invisible barrier that blocks oxidation for 6-12 months indoors. Cost? About $0.15 per part. We passivate every bronze component unless customers specify otherwise.
● Chromate Conversion Coating: The heavy-duty option. Adds 0.00002-0.00004" thickness but triples corrosion resistance. Perfect for marine hardware and outdoor equipment. Yellow chromate handles salt spray for 96 hours minimum. Clear chromate keeps the natural bronze look while adding protection.
● Electroless Nickel Plating: When you need bronze's thermal properties but platinum's corrosion resistance. Adds 0.0005-0.002" uniformly—even in blind holes. The phosphorus content (8-12%) determines hardness. High-phos for corrosion resistance, mid-phos for wear resistance. One aerospace client's bronze bearings went from 2-year to 7-year replacement cycles after nickel plating.
● Vibratory Finishing: Forget hand polishing. Ceramic media + 4 hours = mirror finish on 500 parts simultaneously. The trick? Pyramid-shaped media for bronze. Cylinders and cones leave shadows in corners. Add burnishing compound in the last 30 minutes for that jewelry-store shine.
● Glass Bead Blasting: Size 8-10 beads at 40-60 PSI create a uniform matte finish that hides machining marks. But here's the catch: blast before final inspection. The process removes 0.0002-0.0005" material. We've seen perfectly in-spec parts fail QC after aggressive blasting.
● Controlled Patina: Sometimes you want that aged look. Liver of sulfur creates black. Ammonia vapors produce a blue-green color. Ferric nitrate gives you brown. Apply selectively with brushes for two-tone effects. Architectural hardware makers pay premium prices for this controlled aging.
Environment | Best Treatment | Lifespan | Cost Impact |
Indoor, dry | Passivation only | 1-2 years | +3% |
Indoor, humid | Clear chromate | 3-5 years | +8% |
Outdoor | Electroless nickel | 5-10 years | +25% |
Marine/Saltwater | Nickel + chromate | 10+ years | +35% |
Food contact | Passivation + FDA oil | 6 months | +5% |
Brass gets the glory. Bronze does the work. Here's why engineers specify bronze when failure means lawsuits—or worse.
Bronze handles 40% higher loads than brass before deforming. Aluminum bronze tensile strength hits 85,000 PSI. Naval brass? Tops out at 60,000 PSI.
Real-world proof: We machined identical pump impellers in C954 aluminum bronze and C360 brass for a chemical plant. The brass impellers lasted 8 months. The bronze? Still running after 3 years. Same environment, same chemicals, same RPM. The only difference? Material.
Bronze contains tin, aluminum, or silicon—elements that form hard particles throughout the structure. These particles act like microscopic ball bearings, reducing friction and wear. Brass just... doesn't.
Bearing life comparison (tested at 1,800 RPM, 500 PSI load):
● C360 Brass: 1,200 hours to failure
● C932 Bearing Bronze: 4,500 hours to failure
● C954 Aluminum Bronze: 7,200 hours to failure
That's not a typo. Bronze bearings last 6x longer in high-load applications.
Brass loses strength fast when things heat up. At 400°F, brass retains 65% strength. Bronze? 85% strength at the same temperature.
Marine engines, industrial compressors, aerospace actuators—they all run hot. A brass bushing that works perfectly at startup becomes sloppy mush at operating temperature. Bronze bushings maintain clearances from cold start to redline.
Here's what brass manufacturers won't tell you: dezincification. In seawater, chlorinated water, or even aggressive tap water, zinc leaches out of brass. The part looks fine outside, but turns to pink, porous copper inside. Catastrophic failure follows.
Bronze doesn't dezincify because there's no zinc to lose. Phosphor and aluminum bronze laugh at seawater. Silicon bronze handles acids that would dissolve brass in hours. One offshore platform switched from brass to aluminum bronze fittings—maintenance intervals went from monthly to annually.
Bronze self-lubricates. Those tin and lead particles in bearing bronze act like built-in grease. Run a bronze bushing dry (not recommended, but it happens), and it survives. Run a brass bushing dry, and you're shopping for a new shaft.
Static friction coefficients:
● Steel on brass: 0.35
● Steel on bronze: 0.22
● Steel on leaded bronze: 0.15
Lower friction means less heat, less wear, and longer life. TEAM MFG machines thousands of bronze bushings yearly—our automotive clients report 30-40% longer service life versus brass equivalents, even with irregular maintenance schedules.
Let's be fair—brass wins sometimes:
● Decorative applications (stays golden longer)
● Low-stress electrical components (better conductivity)
● Budget prototypes (30% cheaper material cost)
● Simple fittings under 100 PSI
But when the part absolutely must work? When failure costs more than material? Bronze wins every time.
Bronze machining goes sideways fast. Here's how to fix the problems that eat your profits—before they eat your tools.
● The Problem: Bronze welds itself to your cutting edge. Tools get dull, finish goes to hell, dimensions drift.
● The 5-Minute Fix: Bump your speed up 20%, not down. Bronze creates BUE when you're too conservative. Running C544 at 250 SFM? Jump to 350 SFM. Add a drop of tapping fluid directly on the cutting edge every 10 parts. The sulfur content breaks the bronze-to-tool bond instantly.
● Prevention: Polished, sharp tools only. That worn insert you're "getting one more job from"? It's costing you $50/hour in rework.
● The Problem: First pass cuts like butter. Second pass feels like tungsten. Your perfect 0.750" bore measures 0.748" because the tool deflected.
● The 5-Minute Fix: Never take a skim pass under 0.002" radial engagement. Can't take a deeper cut? Change your approach angle to 45 degrees—this thins the chip and reduces cutting pressure by 30%.
● Real Fix: Program roughing passes at 70% of finish diameter, then take one finishing pass at full depth. We switched to this method, and tool life jumped from 50 to 200 parts.
● The Problem: Chips wrap around everything—tool, part, your patience. They scratch finished surfaces and jam chip conveyors.
● The 5-Minute Fix: Reduce feed rate by 30%, increase depth of cut by 50%. This creates thicker chips that break naturally. No programming time? Add a 0.05-second dwell every 0.5" of cut length. The momentary stop snaps chips clean.
● Permanent Solution: High-pressure coolant (1,000+ PSI) aimed at the cutting zone. Can't afford the pump? A $30 air blast aimed behind the insert works almost as well.
● The Problem: Those washboard-looking lines that scream "amateur hour" to your customers.
● The 5-Minute Fix: Change your speed by 15% up or down—just get off the resonant frequency. Still chattering? Wrap a heavy rubber band around your tool holder. Sounds stupid, works brilliantly. The damping effect kills vibration.
● Tool Fix: Reduce tool stick-out by half. Can't reach? Use a variable-pitch end mill—the irregular flute spacing breaks up harmonic vibrations.
● The Problem: Aluminum bronze eats carbide inserts like candy. Your tool budget explodes.
● The 5-Minute Fix: Flood coolant isn't enough. Switch to through-spindle coolant or add a mist collector with oil-based cutting fluid. The lubrication film prevents the abrasive bronze particles from reaching your cutting edge.
● Economics: TiAlN coating costs 40% more but lasts 300% longer on aluminum bronze. Do the math—it's not even close.
● The Problem: First part measures perfectly. Part #50 is 0.003" oversize. Nothing changed except time.
● The 5-Minute Fix: Bronze thermal expansion is 18.7 μm/m/°C—almost double steel. Let parts cool before measuring. Can't wait? Measure hot but subtract 0.0015" per 100°F above room temperature.
● Shop Fix: Run coolant at 68°F ±2°F. Consistent temperature means consistent parts. TEAM MFG installed a $3,000 chiller and saved $15,000 yearly in scrap and rework.
Stop leaving money on the table. These strategies transformed our bronze machining from break-even to 35% margins.
● Stop Using General-Purpose Inserts: Bronze-specific geometry costs 20% more but cuts 40% faster. The sharper cutting edge (5° rake vs. standard 0°) reduces cutting forces by half. Lower forces = higher feed rates = more parts per hour.
● The Coating Hierarchy:
○ Uncoated carbide: 50 parts average
○ TiN coating: 75 parts (+$3/insert)
○ TiAlN coating: 150 parts (+$5/insert)
○ Diamond coating: 500 parts (+$25/insert)
Diamond pays for itself after 150 parts. We coat everything for production runs of over 200 pieces.
● Adaptive Toolpaths Save 25% Time: Constant tool engagement maintains consistent chip load. Your speeds jump 30% without tool damage. Traditional pocketing in aluminum bronze: 12 minutes. Adaptive clearing: 8 minutes. Same tool, same machine, better strategy.
● Helical Interpolation for Holes: Forget drilling. Thread mill those holes. A 0.500" thread mill creates any hole from 0.520" to 0.750". One tool, infinite sizes, and chips evacuate perfectly. Cycle time drops 40% on parts with multiple hole sizes.
● Soft Jaws Are Gold: Machine soft jaws from the same bronze as your parts. Thermal expansion matches perfectly. Parts stay locked at any temperature. We haven't scrapped a part from jaw movement in two years.
● The Two-Vise Method
○ Vise 1: Roughing at full speed
○ Vise 2: Finishing with fresh tools
While you're loading Vise 1, Vise 2 is cutting. Zero downtime between parts. This simple change added 90 minutes of cutting time per shift.
● Buy Continuous Cast, Not Extruded: Continuous cast bronze machines 20% faster with a better finish. The consistent grain structure means predictable cutting. Price difference? Maybe 5%. Speed difference? Guaranteed 20%.
● Stock 0.030" Oversize, Not 0.125": Standard bronze bar comes 0.125" oversize. That's 4+ roughing passes you don't need. Pay extra for precision-ground stock at 0.030" oversize. The premium costs less than the machine time you save.
Running one piece? You're losing money on setup. Running 1,000? Your tools degrade, and dimensions drift. The magic number for bronze: 50-100 pieces per setup.
Here's why:
● Tools stay sharp throughout the run
● No thermal growth compensation needed
● One setup amortized across enough parts
● Quality stays consistent first-to-last
● Thread Milling vs. Tapping: Bronze tapping requires perfect chip evacuation, or you're breaking taps. Thread milling? The same tool does M6 through M10, with no chip problems, and you can adjust pitch diameter on the fly. Time savings: 3 minutes per part with 10+ threaded holes.
● Deburr in the Machine: Add a 30-second chamfer routine with a countersink. Eliminates 5 minutes of bench work. Labor rate for machining: $85/hour. Labor rate for deburring: $85/hour. Same cost, but the machine doesn't need coffee breaks.
We've refined these practices across 15,000+ bronze parts. Your first production run with us typically costs 25% less than doing it in-house—even before considering setup time, programming, and tool inventory. Our dedicated bronze cell runs 24/7, spreading overhead across multiple customers. You get the savings without the investment.
Bronze machining isn't harder—it's different. Armed with the right speeds, feeds, and techniques, you'll turn those challenging bronze jobs into profitable victories. The difference between struggling and succeeding comes down to respecting Bronze's unique personality.
Key takeaways that transform your bronze work:
● Push speeds 20-30% higher than you think—bronze punishes conservative cutting
● Take deeper cuts (0.050"+) to prevent work hardening
● TiAlN or diamond coatings pay for themselves after 150 parts
● Phosphor bronze runs at 400-500 SFM, aluminum bronze needs 200-250 SFM
● Thread mill instead of tap—saves 3 minutes per part
● Passivation costs $0.15 per part but prevents oxidation for 12 months
● Adaptive toolpaths cut machining time by 25%
We've machined over 4,000 bronze components at TEAM MFG, from tiny phosphor bronze connectors to massive aluminum bronze marine housings. Whether you need 10 prototypes next week or 10,000 production parts next quarter, our dedicated bronze cell runs the exact parameters covered in this guide—delivering perfect parts while you focus on growing your business.
