Bridging the gap between a flawless digital CAD model and a physically machined part is one of the greatest challenges in product development. While modern CAD software allows you to design virtually any geometry, CNC machining is bound by the physical realities of cutting tools, material properties, and machine kinematics.
At TEAM MFG (www.team-mfg.com), we see countless designs that are functionally brilliant but manufacturably flawed. This comprehensive guide outlines the essential CNC design guidelines for engineers, focusing on radius, wall thickness, and depth rules. By applying these Design for Manufacturability (DFM) principles, you can drastically reduce costs, accelerate lead times, and ensure superior part quality.
Every line drawn in your CAD software has a direct financial implication. A seemingly minor design choice—such as specifying a sharp internal corner or an excessively deep pocket—can mandate custom tooling, multiple setups, or incredibly slow machining speeds. Understanding CNC design guidelines shifts your mindset from "designing for function" to "designing for the toolpath," directly protecting your project's budget.
Design for Manufacturability (DFM) is not about compromising your design; it is about optimizing it for the physical world. Applying DFM principles reduces tool wear, minimizes machine time, and decreases the likelihood of scrapped parts. Efficient designs allow machines to run at optimal speeds and feeds, resulting in faster turnaround times for your prototypes and production runs.
The most frequent mistakes include designing perfectly sharp internal corners, specifying unnecessarily tight tolerances, creating thin walls in hard materials, and ignoring standard drill bit sizes. Avoiding these pitfalls is the first step toward a seamless manufacturing experience.
New Viewpoint: The "Shadow of the Tool" Concept. Unlike 3D printing, which adds material point-by-point, CNC machining is subtractive. You must visualize the "shadow" or physical envelope of the cutting tool. A standard endmill is a cylinder with a flat or ball nose; it cannot reach into sharp internal corners because the tool itself is round. Every internal vertical corner will inherently have a radius equal to or greater than the tool's radius.
Engineers often over-engineer parts "just to be safe." However, adding unnecessary mass, complex 3D contours, or ultra-precise tolerances where standard fits suffice creates friction. The goal is to find the sweet spot where the part performs its mechanical function perfectly while remaining easy to machine.
A good CNC design allows the machinist to secure the part rigidly, access all features with standard tools, and complete the job in the fewest setups possible. Designs that require the part to be flipped multiple times or held in custom soft jaws introduce cumulative tolerances and increase setup costs.
(Note: While implied in the title, radius rules are foundational to CNC design.)
Never design sharp internal corners for CNC milling. Because endmills are cylindrical, attempting to machine a sharp 90-degree internal corner requires specialized, time-consuming processes like Electrical Discharge Machining (EDM) or broaching.
Internal Radii: Always add a fillet to internal corners. A good rule of thumb is to make the internal radius slightly larger than the standard tool radius (e.g., use a 0.135" radius for a 0.25" diameter endmill) to allow for a smooth, continuous toolpath without dwelling and burning the material.
External Radii: External sharp corners are machinable but prone to burring and damage during handling. Adding a small chamfer or external radius improves part durability and aesthetics.
Thin walls are notoriously difficult to machine due to tool deflection, material spring-back, and harmonic chatter.
When designing tall, thin features (like fins or brackets), rigidity is your primary concern.
Material Matters: Aluminum can support thinner walls than steel or titanium due to its machinability and lower cutting forces. For metals, aim for a minimum wall thickness of 0.8mm (0.03"). For plastics, increase this to at least 1.5mm (0.06") to prevent warping.
Aspect Ratio: Keep the height-to-thickness ratio below 10:1. If a wall must be exceptionally tall, consider adding gussets or ribs at the base to dampen vibrations during the finishing passes.
Ignoring Chatter: Thin walls act like tuning forks. If the wall thickness aligns with the harmonic frequency of the spindle speed, it will chatter, leaving a poor surface finish and potentially breaking the tool.
Uniform Thinness: Avoid making an entire large surface uniformly thin. Instead, use a "waffle" or ribbed structure on the backside to maintain rigidity while reducing overall weight.
CTA: Unsure whether your part design is machinable? Upload your CAD files to TEAM MFG for a fast engineering assessment and quotation. Our DFM experts will identify thin-wall risks before they become expensive mistakes.
Deep pockets are one of the primary drivers of increased CNC machining costs.
To machine a deep pocket, you need a long-reach endmill. Long tools have a high length-to-diameter ratio, making them highly susceptible to deflection (bending) under cutting forces. This deflection leads to poor dimensional accuracy, terrible surface finishes, and frequent tool breakage. Furthermore, evacuating chips from deep cavities is difficult; trapped chips can recut, damaging both the tool and the part.
The golden rule for pocket depth is the 3:1 or 4:1 ratio (depth to tool diameter).
If you are using a 10mm endmill, the maximum recommended pocket depth is 30mm to 40mm.
If your design requires a depth greater than 4x the tool diameter, you are entering the realm of specialized deep-cavity machining, which requires slower feeds, specialized tooling, and higher costs.
Step the Cavity: Instead of a uniform deep pocket, design stepped cavities. Make the upper portion wider so it can be roughed out with a large, rigid tool, and reserve the smaller, longer tool only for the deepest section.
Draft Angles: If functionality allows, add a slight draft angle to the pocket walls. This reduces the contact area between the tool and the material, minimizing friction and deflection.
Excessive depth forces machine shops to use carbide extended-reach tools or custom-ground endmills. These tools are expensive, fragile, and require drastically reduced feed rates. A pocket that is 10x deeper than its width can increase the machining time for that specific feature by 300% to 500%, directly inflating your quote.
Holes and threads are critical for assembly, but they are often designed without considering standard tooling.
Always design holes to match standard fractional or metric drill bit sizes. If you specify a non-standard hole size (e.g., 0.312" instead of a standard 5/16" or 8mm), the machinist must use an endmill to interpolate the hole rather than simply plunging a drill bit. Interpolation takes significantly longer and yields a less accurate, poorer-finish hole.
Standard twist drills are designed to cut efficiently up to a depth of 3x to 5x their diameter.
For a 5mm hole, a depth of 15mm to 25mm is ideal.
If you need a deeper hole, the machinist must use a "peck drilling" cycle (retracting the drill repeatedly to clear chips), which increases cycle time. For holes deeper than 10x the diameter, specialized gun-drilling equipment may be required.
Pro Tip: Always design blind holes with a flat bottom or acknowledge the 118-degree/135-degree conical point angle left by standard twist drills. Do not expect a perfectly flat bottom on a drilled blind hole without a secondary endmilling operation.
More thread engagement does not always mean a stronger joint.
The 1.5x to 2x Rule: Maximum thread strength is achieved at an engagement length of 1.5x to 2x the nominal diameter of the fastener. Tapping a hole 4x deep adds zero additional pull-out strength but significantly increases the risk of tap breakage and machining time.
Thread Relief: Always include a thread relief (an unthreaded section at the bottom of a blind hole) to allow the tap to bottom out without breaking and to ensure the fastener seats properly.
While not explicitly detailed in the core geometry rules, tolerances and setups dictate the final cost.
Tolerances: Only apply tight tolerances (e.g., ±0.001") to critical mating surfaces. Apply standard machining tolerances (e.g., ±0.005") to all non-critical dimensions.
Setups: Design parts so that all features can be accessed from as few angles as possible. Every time a part must be unclamped, flipped, and re-zeroed, you pay for setup time and risk alignment errors.
New Viewpoint: "Design for 2.5D before 3D." Many engineers default to complex 3D organic surfaces when a series of 2.5D features (pockets, holes, and flat planes) would suffice. 3D contouring requires simultaneous multi-axis toolpaths, ball-nose endmills (which leave scallop marks), and extensive polishing. Simplify your geometry by breaking complex curves into intersecting planes, standard radii, and chamfers whenever possible. If a part is too complex to machine in one piece, design it to be machined in two simpler halves and assembled via fasteners or bonding.
The most cost-effective DFM happens before the CAD model is finalized. This is known as Concurrent Engineering. By sharing preliminary concepts with your manufacturing partner, you can receive feedback on material selection, tool access, and fixturing. Engaging TEAM MFG early allows our engineers to suggest minor geometric tweaks that yield massive cost savings without altering the part's core functionality.
To illustrate these principles, let’s look at how minor design changes drastically improve manufacturability.

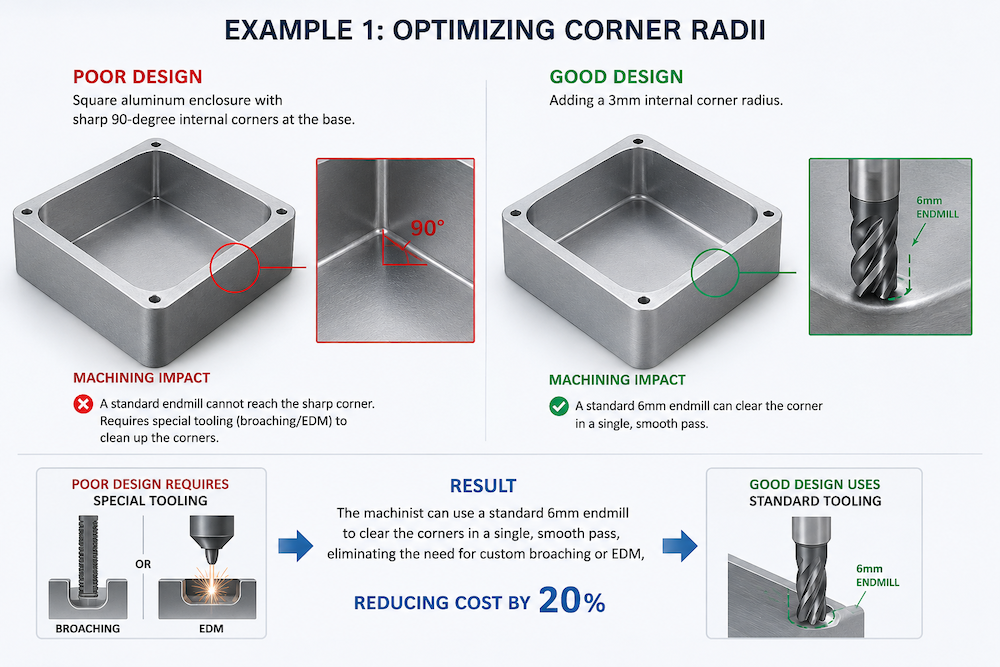

Poor Design: A square aluminum enclosure with sharp 90-degree internal corners at the base.
Good Design: Adding a 3mm internal corner radius.
Result: The machinist can use a standard 6mm endmill to clear the corners in a single, smooth pass, eliminating the need for custom broaching or EDM, reducing cost by 20%.
Poor Design: A large, flat titanium cover plate with a uniform 1mm wall thickness.
Good Design: Increasing the outer perimeter wall to 3mm and adding a cross-hatch rib structure on the non-visible side, maintaining the 1mm thickness only where weight reduction is critical.
Result: Eliminates harmonic chatter during milling, prevents part warping during anodizing, and ensures dimensional accuracy.
Before releasing your CAD model to the manufacturing floor, run it through this final DFM checklist. Verify that:
Internal radii follow standard machining guidelines (no sharp internal corners).
Wall thicknesses meet material-specific recommendations to prevent chatter.
Pocket depths comply with the 3:1 or 4:1 tooling limitation ratios.
Standard, off-the-shelf hole sizes have been selected.
Thread depths are appropriate (1.5x to 2x diameter) and include relief.
All features are physically accessible to standard cutting tools.
Unnecessary tight tolerances have been eliminated from non-critical features.
Multiple setups and part flips have been minimized.
The design has undergone a professional manufacturability review.
Always use a radius slightly larger than standard tool sizes. For example, use a 0.135" radius instead of 0.125" (1/8"). This allows the tool to roll through the corner continuously without dwelling, which prevents burn marks and extends tool life.
It depends on the material and the wall's height. For aluminum, walls can be machined down to 0.5mm (0.02") for short heights, but 0.8mm to 1.0mm is recommended for stability. For plastics and softer metals, keep walls above 1.5mm to prevent deflection and warping.
The ideal depth-to-diameter ratio for a pocket is 3:1. You can push this to 4:1 or even 5:1 with specialized tooling, but doing so will increase machining time and cost due to the need for slower feed rates and chip-clearing peck cycles.
CNC milling cannot create sharp internal corners because the cutting tools are round. Sharp external corners are possible but are usually chamfered or rounded to prevent burrs and handling damage. If a sharp internal corner is absolutely necessary, secondary processes like EDM or broaching must be used.
You can reduce costs by: 1) Loosening non-critical tolerances, 2) Designing for standard tool sizes, 3) Keeping pocket depths shallow, 4) Minimizing the number of required setups, and 5) Choosing easily machinable materials like 6061 Aluminum or Delrin.
Choose 3-axis for simpler, prismatic parts where all features are accessible from the top and sides. Choose 5-axis for complex, contoured geometries (like aerospace or medical implants) or parts that would require more than two setups on a 3-axis machine. While 5-axis has a higher hourly rate, it can be cheaper overall if it eliminates multiple 3-axis setups and custom fixtures.
