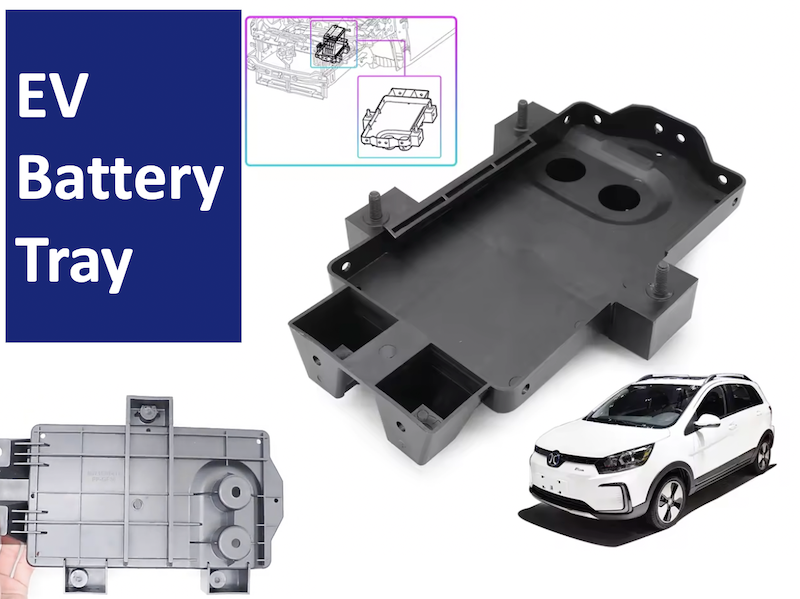

With the rapid expansion of the electric vehicle (EV) market, battery systems have become the most critical component determining vehicle performance, safety, and driving range. At the core of every battery system is the EV battery tray, a key structural component that supports, protects, and integrates the entire battery pack.
The battery tray is far more than a simple enclosure. It serves as the foundation of the battery system, responsible for load-bearing, impact protection, thermal management, and lightweight optimization. It must withstand vibration, mechanical stress, and environmental exposure while maintaining precise alignment of battery modules.
In modern EV design, battery trays must also integrate cooling channels, sealing structures, and mounting interfaces. This makes them highly complex components with strict engineering requirements. Manufacturers must ensure excellent flatness, dimensional stability, and sealing performance to meet safety standards such as IP67 or IP68.
These demanding requirements place extremely high expectations on materials, machining accuracy, structural strength, and manufacturing processes. Traditional fabrication methods alone are not sufficient to achieve the required precision and consistency.

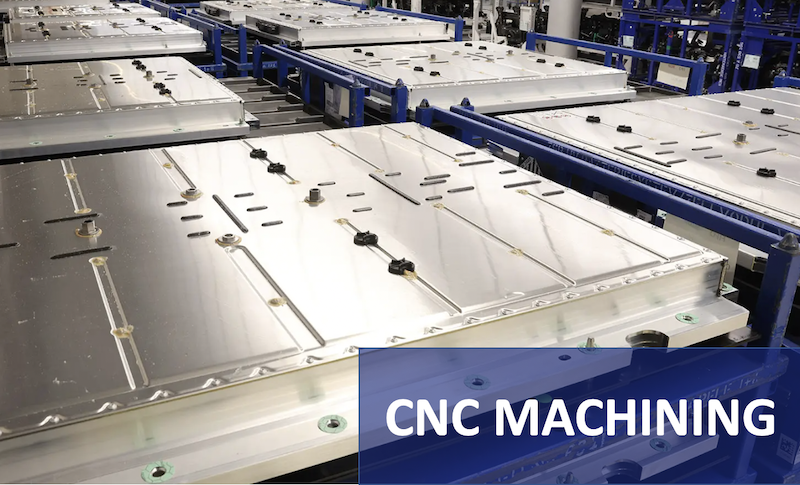

This is why choosing a professional EV battery tray CNC machining supplier is essential. CNC machining ensures:
High precision and tight tolerances
Stable and repeatable quality
Efficient transition from prototyping to mass production
Compatibility with complex geometries
A reliable supplier not only improves product quality but also reduces development risks and shortens time-to-market, which is critical in the competitive EV industry.
Material selection is a key factor that directly impacts battery tray performance, weight, durability, and manufacturability. Different materials require different CNC machining strategies, tooling, and process control.
Aluminum alloys are the most widely used materials for EV battery trays due to their excellent balance of properties.
6061 Aluminum offers good strength, corrosion resistance, and machinability, making it suitable for structural components.
5052 Aluminum provides better formability and fatigue resistance, often used in parts requiring bending or forming.
5083 Aluminum is highly resistant to corrosion and performs well in harsh environments, making it ideal for battery tray applications.
Aluminum’s lightweight nature helps improve EV range, while its thermal conductivity enhances heat dissipation. In addition, aluminum is highly suitable for CNC machining, allowing efficient processing of complex structures.
This hybrid manufacturing method is the mainstream solution in the automotive industry. Die casting is used to produce near-net shapes, reducing material waste and improving production efficiency. CNC machining is then applied to critical areas such as sealing surfaces, mounting interfaces, and precision holes.
This approach combines cost efficiency with high precision, making it ideal for large-scale EV production.
In high-end EV models, carbon fiber composites are used to achieve maximum weight reduction. These materials offer exceptional strength-to-weight ratios but require specialized CNC machining techniques to avoid delamination and maintain dimensional accuracy.
Stainless steel is typically used in localized reinforcement areas where higher strength and impact resistance are required. Although heavier than aluminum, it enhances structural integrity in critical zones.
Different materials significantly affect:
Tool selection (carbide tools, coatings)
Cutting parameters (speed, feed rate)
Fixturing strategies
Tool wear and heat generation
Achievable tolerances
A professional supplier must optimize machining processes for each material to ensure quality, efficiency, and cost control.

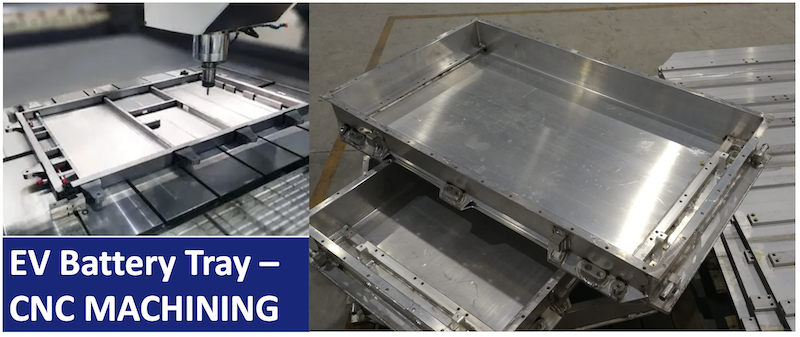

EV battery trays are large, complex, and precision-critical components. Their machining involves several technical challenges.
Battery trays typically range from 1500 mm to over 3000 mm in size. To achieve lightweight design, they often include thin-wall sections that are prone to deformation during machining. Advanced fixturing systems and optimized cutting strategies are required to maintain dimensional stability.
Critical geometric tolerances include flatness, parallelism, and perpendicularity. These must typically be controlled within ±0.02–0.05 mm. Achieving such precision over large surfaces requires high-end CNC equipment and strict process control.
Battery trays contain numerous threaded holes, positioning holes, and mounting interfaces. These features must be machined with high positional accuracy to ensure proper assembly. Processes include drilling, tapping, and reaming.
Functional features such as sealing grooves, cooling channels, and liquid flow paths require high-precision CNC milling. These features must meet strict requirements for surface finish and dimensional accuracy to ensure sealing performance and thermal efficiency.
After machining, burr removal is essential to prevent sealing failures or assembly issues. Surface treatments such as anodizing, powder coating, and passivation improve corrosion resistance, durability, and appearance.
Selecting the right supplier requires evaluating multiple capabilities beyond basic machining.
A qualified supplier should have:
Gantry CNC machining centers
Horizontal machining centers
5-axis CNC machines
These machines enable efficient processing of large and complex parts with high precision.
The supplier must be capable of handling large components up to 1500 mm–3000 mm or more, ensuring stability and accuracy during machining.
A reliable supplier should support:
Rapid prototyping
High-volume mass production
Consistency across all production stages is critical.
Automotive certification is essential:
ISO 9001
IATF 16949
These certifications ensure standardized processes and strict quality control.
Professional suppliers must provide:
CMM (Coordinate Measuring Machine) inspection
Height measurement tools
Surface roughness testing
Air-tightness testing
These capabilities ensure that all parts meet design specifications and performance requirements.
A well-defined manufacturing process ensures efficiency, quality, and consistency.
The process begins with drawing analysis and DFM optimization, where engineers review designs and identify potential manufacturing challenges. This step helps reduce costs and improve product performance.
Next is material preparation and rough machining, where raw materials are cut and pre-machined to remove excess material.
The most critical stage is precision CNC machining, which includes cavity milling, hole machining, and sealing surface finishing. Advanced CNC machines and optimized toolpaths are used to achieve tight tolerances.
After machining, parts undergo deburring, cleaning, and surface treatment. These steps ensure product quality and durability.
Then comes full inspection and air-tightness testing, where dimensional accuracy and sealing performance are verified.
Finally, parts are carefully packaged and shipped, ensuring safe delivery to customers.
TEAM MFG is a trusted partner for precision CNC machining in the EV industry, offering comprehensive solutions for battery tray manufacturing.
We specialize in machining complex EV structural components and understand the strict requirements of the automotive sector. Our facility is equipped with advanced gantry and 5-axis CNC machines capable of handling large-scale battery trays.
We follow automotive-grade quality management systems aligned with IATF 16949 standards, ensuring consistent and reliable production quality.
Our capabilities include rapid prototyping and stable mass production, allowing customers to accelerate product development and scale efficiently.
We also provide a one-stop solution that includes CNC machining, surface treatment, and assembly services, helping customers simplify their supply chain and reduce costs.
A recent project demonstrates our expertise in EV battery tray manufacturing.
Material: Aluminum alloy 5083
Size: 1800 × 1200 mm
Tolerance: ±0.03 mm
Process: CNC milling, tapping, sealing groove machining, anodizing
Application: Passenger and commercial EV battery packs
The project required strict flatness control and precise sealing features. Through optimized fixturing and machining strategies, we achieved excellent dimensional accuracy and sealing performance.
The project was successfully scaled from prototype to batch production with stable quality, meeting all customer requirements.
We support both low-volume prototyping and high-volume production. MOQ depends on project requirements.
Prototypes typically take 7–15 days, while mass production takes 3–6 weeks depending on complexity and quantity.
Yes, our engineering team offers DFM analysis to improve manufacturability, reduce costs, and enhance product performance.
Yes, we provide leak testing to ensure sealing performance meets automotive standards.
We offer anodizing, powder coating, passivation, and other surface finishing services.
As the EV industry continues to evolve, the demand for high-performance battery components will keep growing. The EV battery tray plays a critical role in ensuring safety, efficiency, and lightweight performance.
Precision CNC machining is essential for meeting the strict requirements of modern battery trays. By partnering with a professional supplier, manufacturers can achieve superior quality, faster production cycles, and reduced development risks.
TEAM MFG is committed to delivering high-precision, reliable, and cost-effective CNC machining solutions for EV battery trays.
If you are looking for a dependable EV battery tray CNC machining supplier, TEAM MFG is ready to support your project. Contact us today to get a fast quote and expert engineering support.
