Most engineers treat the electronics chassis as an afterthought. Design the PCB first, figure out the housing later. That mindset leads to costly redesigns, thermal failures, and parts that simply don't fit. The chassis is the product just as much as the electronics inside it.
This guide covers everything you need to make smarter chassis decisions, faster:
● What an electronics chassis is and why it matters
● Key chassis parts and how they work together
● Chassis vs. frame: what's the actual difference
● Types of electronics chassis and when to use each
● Best materials for your chassis design
● How to design an electronics chassis the right way
● Manufacturing methods: CNC machining, pressure die casting, 3D printing, and more
● Custom electronics chassis: when and why to go custom
● Real-world electronics chassis applications across industries
● How to take your electronics chassis from prototype to production
TEAM MFG specializes in custom electronics chassis manufacturing, from rapid prototyping to full-scale production. With tolerances down to ±0.01mm and delivery in as little as one week, they take your design from CAD to finished part without the usual back-and-forth.
Think of an electronics chassis the way you'd think of a skeleton. Without it, everything falls apart.
An electronics chassis is the structural framework that houses, organizes, and protects the internal components of an electronic device. That includes circuit boards, power supplies, connectors, heat sinks, and more. It keeps everything in place, manages thermal conditions, and shields sensitive parts from dust, vibration, EMI, and physical damage.
It's more than a box. A well-designed electronics chassis serves five core functions:
Function | What It Means in Practice |
Structure | Holds all components in a compact, organized layout |
Protection | Guards against dust, moisture, vibration, and EMI |
Thermal management | Keeps airflow moving so components don't overheat |
Grounding | Routes electrical charges safely away from components |
Aesthetics | Reflects product identity and end-user expectations |
A typical electronics chassis includes:
● Chassis frame: the primary load-bearing structure
● Mounting points and brackets: where PCBs, drives, and modules attach
● Ventilation panels and cutouts: for airflow and heat dissipation
● I/O port openings: for external connectivity
● Cable management channels: to reduce clutter and prevent interference
● Expansion slots: for modular upgrades or add-on boards
Pro tip: The chassis frame isn't just structural. Its rigidity directly affects signal integrity. A chassis that flexes under load can stress solder joints, shift connectors, and cause intermittent failures down the line.
Whether you're building a ruggedized enclosure for aerospace or a lightweight housing for a consumer device, the chassis is the foundation everything else depends on. Getting it right starts with understanding what you actually need it to do.
Need a custom electronics chassis built to tight tolerances? TEAM MFG's CNC machining and pressure die casting services are built for exactly that.

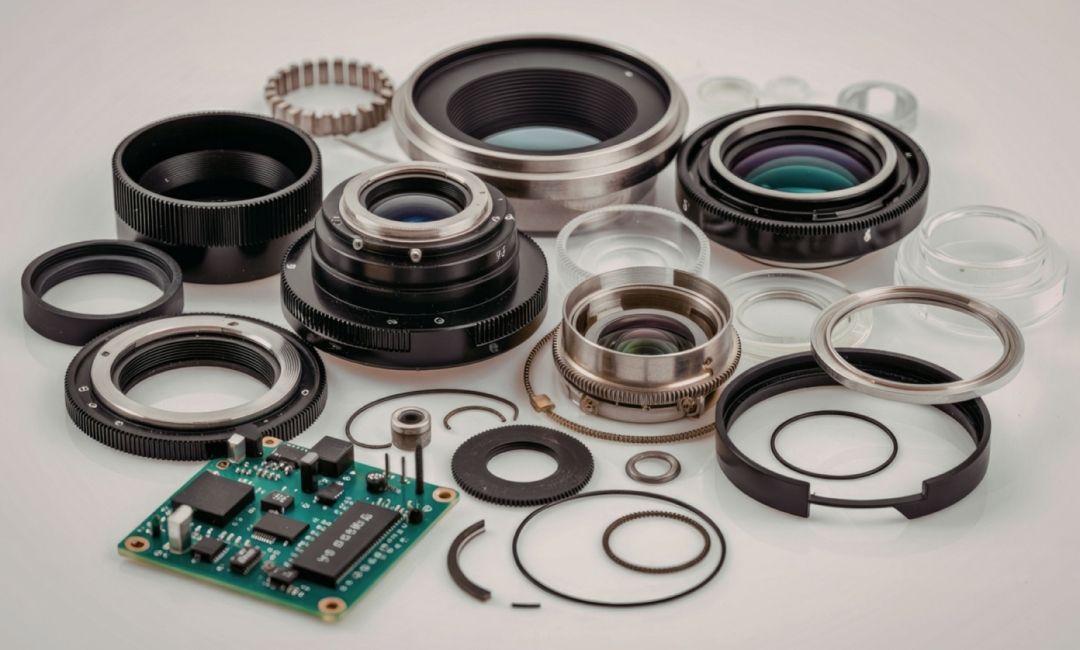

Every chassis part has a job. And they only work well when they work together.
Think of it like a well-run assembly line. Each component handles one role, but the whole thing falls apart if one piece is off. Here's what the core chassis parts do:
● Chassis frame: The primary load-bearing skeleton. Everything else mounts to it. Its rigidity directly affects vibration resistance and structural stability.
● Mounting brackets and standoffs: Secure PCBs, drives, and modules at precise positions. Spacing also affects heat flow between components.
● Ventilation panels and cutouts: Control airflow paths. Poorly placed vents create hot spots, even in a well-cooled design.
● Cable management channels: Route power and signal cables separately to prevent EMI crosstalk and reduce clutter.
● I/O port openings: Align with external connectors. Tolerance matters here since misalignment causes stress on PCB headers.
● Expansion slots and bays: Allow modular upgrades without redesigning the full chassis.
Think of your chassis as a thermal system first, a structural system second. The mounting layout determines airflow, and airflow determines component lifespan.
When you're working with custom chassis parts, getting the tolerances right on every mounting point is non-negotiable. A misaligned standoff by even 0.5mm can cause PCB flex under load.
People use these terms interchangeably. They're not the same thing.
Here's the clearest way to think about it:
Term | What It Means |
Frame | The raw structural skeleton. It carries static and dynamic loads but has no functional systems attached. |
Chassis | The frame plus everything mounted to it: PCBs, power systems, cooling, I/O. It's the complete functional assembly. |
In electronics, the chassis frame is just one component within the broader chassis system. The frame gives you rigidity. The chassis gives you a working product.
A practical example: a server rack's steel frame is the frame. Once you add the backplane, power distribution, cable management arms, and cooling fans, that whole assembly becomes the chassis.
When you're designing for production, the frame tolerances and the chassis assembly tolerances are two separate engineering conversations. Frame specs focus on load and rigidity. Chassis specs account for thermal clearances, connector alignment, and serviceability.
Not every chassis fits every application. Choosing the wrong form factor early in a project is an expensive mistake.
Here's a breakdown of the most common types:
● Tower Chassis Standalone, vertically oriented enclosures. Ideal for small-to-medium deployments where space isn't critical. Easy to customize and maintain. Common in workstations, edge computing nodes, and lab equipment.
● Rack-Mount Chassis Standardized to fit 19-inch server racks, measured in rack units (U). A 1U chassis is 1.75 inches tall. Go up to 4U or higher for more component density. Best for data centers, telecom rooms, and any environment where multiple systems need to stack cleanly.
● Blade Chassis Modular enclosures that house multiple blade servers or compute modules. Shared power and cooling infrastructure reduces redundancy. High upfront cost but significantly better density per square foot. Used in large-scale deployments and AI compute clusters.
● Desktop / Benchtop Chassis Compact, horizontal enclosures for instruments, test equipment, and consumer devices. Prioritize accessibility and low-profile form factor over density.
● Open-Frame Chassis No outer panels. Just the structural skeleton. Common in prototyping, R&D labs, and testing environments where you need constant access to internal components.
● Ruggedized / Custom Chassis Built for aerospace, defense, and industrial applications. Designed to withstand shock, vibration, extreme temperatures, and EMI. These almost always require a custom manufacturing approach with tight tolerances and specialized materials. TEAM MFG's pressure die casting and CNC machining services are well-suited for this category.
Pro tip: If you're unsure between rack-mount and blade, ask yourself: will this system scale beyond 10 nodes? If yes, blade wins on long-term efficiency.
Material selection shapes everything downstream: weight, thermals, cost, machinability, and lifespan. Pick the wrong one, and you'll redesign the chassis before the product even ships.
Here's how the main options stack up:
Material | Thermal Conductivity | EMI Shielding | Weight | Best For |
Aluminum | 205 W/mK | Good (natural RF shielding) | Light | Industrial, aerospace, high-heat applications |
Steel (SPCC/Stainless) | 50 W/mK | Excellent | Heavy | High-strength, heavy-duty enclosures |
ABS Plastic | 0.2 W/mK | None | Very light | Consumer electronics, indoor, low-heat |
Polycarbonate | 0.2 W/mK | None | Light | Outdoor, impact-resistant consumer devices |
Magnesium Alloy | ~156 W/mK | Moderate | Very light | High-end mobile devices, aerospace |
Aluminum dominates most professional electronics chassis applications. It conducts heat at 4x the rate of steel, resists corrosion naturally, machines cleanly, and weighs a fraction of stainless steel. For custom electronics chassis that require precision machining, aluminum alloys like 6061 or 7075 are the go-to choice.
Steel wins on raw compressive strength. For enclosures that take heavy mechanical loads or need maximum EMI shielding, steel is hard to beat. The tradeoff is the weight and cost of secondary finishing.
Plastics (ABS and polycarbonate) work well for consumer devices in controlled environments. They're cost-effective and allow RF/wireless signals to pass through freely. But they don't dissipate heat and offer zero EMI protection.
Pro tip: For high-volume custom electronics chassis production, die-cast aluminum hits the sweet spot between precision, thermal performance, and per-unit cost. TEAM MFG's aluminum die casting service holds tolerances down to ±0.01mm, which is critical for chassis designs with tight connector alignment and heat dissipation requirements.
Bad chassis design doesn't fail loudly. It fails quietly, with thermal issues at month three, connector misalignment during assembly, or PCB flex nobody accounted for.
Getting chassis design right means thinking in systems, not parts. Here's how to approach it:
Before you open a CAD tool, answer these:
● Will the chassis face vibration, shock, or extreme temperatures?
● Does it need IP or NEMA-rated ingress protection?
● Is EMI shielding a requirement?
● Will it be rack-mounted, wall-mounted, or freestanding?
Your operating environment determines your material, form factor, and sealing requirements. Design for the worst-case condition your product will actually face.
Heat is the silent killer of electronics. Your chassis design needs to solve thermals before it solves aesthetics.
● Position high-heat components near ventilation openings
● Separate heat-generating zones from heat-sensitive components
● Keep power and signal cable routing on opposite sides of the chassis
● Design airflow as a deliberate path, not an afterthought
Pro tip: A common rule in chassis thermal design is to ensure at least 1 inch of clearance above heat sinks for natural convection. In forced-air designs, misaligned vents reduce airflow efficiency by up to 30%.
A beautiful CAD model that can't be machined efficiently costs you money. Every design decision has a manufacturing implication:
● Wall thickness: Too thin and your chassis warps during die casting; too thick and you add unnecessary weight
● Draft angles: Essential for die-cast and injection-molded chassis parts to release cleanly from molds
● Tolerance stack-up: Connector openings and PCB mounting points need tight, consistent tolerances to avoid assembly errors
● Access for maintenance: Service panels and fastener placement matter for long-term usability
Before you finalize any chassis design, run through this:
● [ ] Operating environment and IP/NEMA rating defined
● [ ] Thermal path mapped from heat source to exhaust
● [ ] PCB mounting standoff positions verified against board layout
● [ ] Connector openings account for 0.2-0.3mm clearance tolerance
● [ ] Draft angles applied to all cast or molded surfaces
● [ ] Cable routing channels separate power from signal lines
● [ ] Grounding points specified for EMI compliance
● [ ] Material selected based on application environment, not just cost
When you're ready to move from design to physical parts, TEAM MFG's engineering team offers DFM review as part of the quoting process, helping you catch manufacturing issues before they become expensive mistakes.
The right manufacturing process depends on your volume, material, tolerance requirements, and timeline. No single method wins every situation. Here's a clear breakdown:

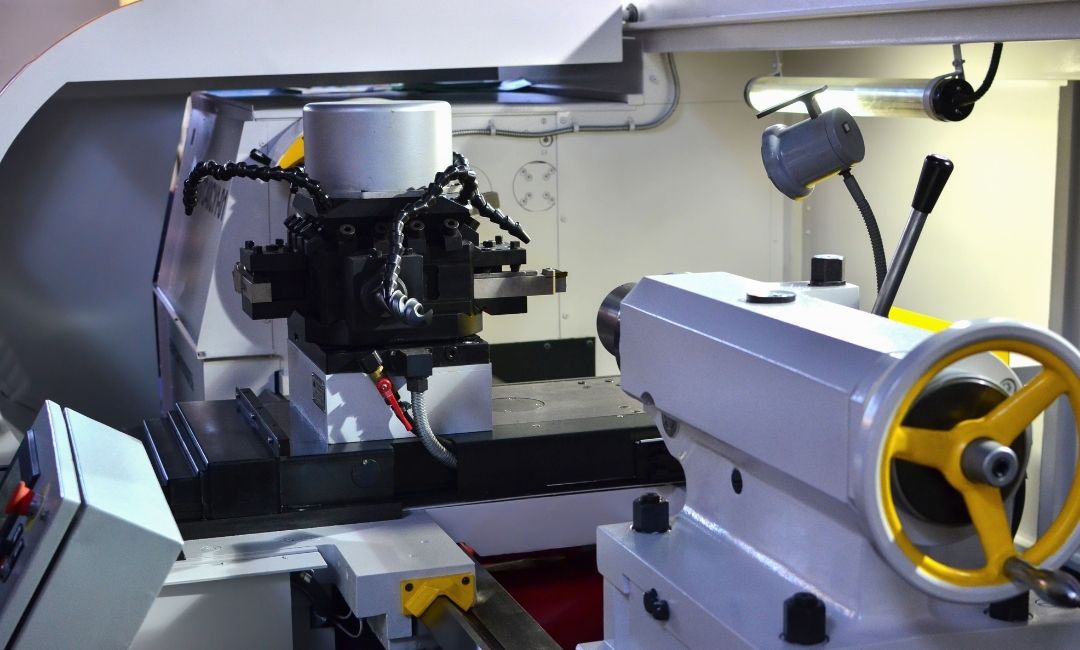

CNC machining is the go-to for precision. It removes material from a solid block using computer-controlled cutting tools, achieving tolerances down to ±0.01mm.
Best for:
● Low-to-medium volume custom chassis production
● Prototypes that need production-grade material properties
● Chassis with complex features: tight pockets, fine holes, precise connector cutouts
● Aluminum, steel, and engineering plastic chassis
The tradeoff: Setup costs and per-part cost are higher than casting at scale. But when precision is non-negotiable, nothing beats it.
TEAM MFG's 5-axis CNC machining handles complex chassis geometries with tolerances down to ±0.01mm and surface finishes of Ra≤0.2μm. That level of accuracy directly impacts connector alignment, PCB fitment, and assembly yield.
High pressure die casting forces molten aluminum or zinc alloy into a steel die at high pressure. It produces dimensionally consistent, high-density parts at volume.
Best for:
● Medium-to-high volume production runs
● Complex chassis geometries that would be expensive to machine
● Applications requiring excellent EMI shielding and thermal conductivity
● Motor protection caps, enclosure bodies, and structural chassis shells
The tradeoff: Tooling costs are significant upfront. Once the die is made, per-part costs drop sharply. Tolerances of ±0.1mm are achievable straight from the die, with CNC finishing where tighter specs are needed.
3D printing builds parts layer by layer from a digital file. No tooling required.
Best for:
● Early-stage electronics chassis prototypes
● Design validation before committing to tooling
● Internal brackets, clips, and complex internal geometry
● Very low volume, highly customized one-off chassis
The tradeoff: Surface finish and mechanical properties don't match CNC or die casting. It's a development tool, not a production solution for most electronics chassis. That said, TEAM MFG offers 3D printing prototyping services as part of a complete rapid prototyping workflow.
Plastic injection molding is the right call for high-volume plastic chassis components. It's fast, repeatable, and cost-effective at scale.
Best for:
● Consumer electronics chassis and enclosures
● High-volume runs where the per-part cost needs to be low
● Plastic chassis parts: covers, bezels, housings, snap-fit enclosures
Method | Best Volume | Typical Tolerance | Tooling Cost | Lead Time |
CNC Machining | Low-Medium | ±0.01mm | Low | Fast |
Pressure Die Casting | Medium-High | ±0.1mm | High | Moderate |
3D Printing | Very Low | ±0.2-0.5mm | None | Very Fast |
Injection Molding | High | ±0.1-0.3mm | High | Moderate |
Off-the-shelf chassis exist for a reason. They're fast to source, widely available, and work fine for standard applications. But standard only gets you so far.
A custom electronics chassis makes sense when:
● Your form factor is non-standard. Unique PCB sizes, specialized mounting configurations, or unconventional component layouts require a chassis built around your design, not the other way around.
● Environmental requirements are strict. Defense, aerospace, and medical applications often demand specific IP ratings, EMI shielding levels, or thermal characteristics that off-the-shelf products can't meet.
● You're scaling a product. At volume, a custom chassis optimized for your assembly process reduces build time, lowers defect rates, and cuts per-unit cost.
● Brand and UX matter. Consumer-facing electronics with custom enclosures communicate quality. The chassis is part of the product experience.
● Integration complexity is high. When a single chassis needs to integrate connectors, heat sinks, mounting hardware, and access panels in precise positions, custom manufacturing is the only reliable path.
Factor | Off-the-Shelf | Custom Chassis |
Cost | Low upfront | Higher upfront, lower at volume |
Lead time | Immediate | Days to weeks |
Fit for purpose | Compromise | Optimized |
Scalability | Limited | Designed for it |
IP/EMI compliance | Generic | Application-specific |
The decision usually comes down to volume and criticality. For prototyping and early-stage development, off-the-shelf is fine. Once you're committing to production, a custom chassis almost always pays for itself.
TEAM MFG specializes in exactly this transition. From rapid prototyping to low-volume manufacturing and full-scale production runs, they work with engineers and product teams to develop custom electronics chassis across aluminum, zinc alloy, and engineering plastics. With clients across 73 countries and 15,000+ projects completed, the experience shows.
Every major industry that runs on electronics needs a reliable chassis to put it in. Here's where electronics chassis do their most critical work:
This is where chassis design gets serious. Aerospace electronics chassis must withstand shock, vibration, extreme temperature swings, altitude pressure changes, and intense EMI environments. Ruggedized chassis in this space often conform to MIL-STD-810 standards and are built from high-strength aluminum alloys with precision-machined features.
Flight control systems, radar modules, communications equipment, and UAV electronics all depend on custom chassis built to tight specifications. TEAM MFG's aerospace manufacturing capabilities address exactly these requirements.
Modern vehicles contain dozens of electronic control units (ECUs), each needing its own housing. As EVs grow in market share, battery management systems, motor controllers, and onboard charging units all require thermally efficient, vibration-resistant chassis.
Die-cast aluminum is the dominant material here. Its thermal conductivity, weight advantage over steel, and ability to produce complex geometries in high volumes make it a natural fit.
Factory floor electronics take a beating. PLC housings, servo drive enclosures, and sensor modules need chassis that resist dust, moisture, and mechanical vibration, often while operating continuously.
The global robotics market reached nearly $50 billion in 2025, growing at 14% annually. Every one of those systems needs precision-manufactured electronic housings. Chassis for this space typically use pressure die casting for volume production or CNC machining for lower-volume custom configurations.
Medical electronics chassis are subject to strict regulatory requirements. Beyond tolerances, they need to withstand sterilization processes, resist chemical exposure, and meet cleanroom compatibility standards in some cases.
Diagnostic instruments, imaging equipment, and patient monitoring systems all rely on custom chassis built to precise, validated specifications. Material traceability and quality documentation are non-negotiable at this level.
At the other end of the spectrum, consumer electronics chassis prioritize aesthetics, weight, and cost efficiency. Smartphones, laptops, smart home devices, and wearables use chassis that are often plastic injection-molded or die-cast aluminum with secondary surface finishing.
TEAM MFG's secondary surface finish services cover anodizing, powder coating, and polishing, which are all commonly applied to consumer electronics chassis for both protection and appearance.
Power distribution units, solar inverter housings, telecom base station enclosures, and EV charging station electronics all require chassis with high environmental protection ratings and long service life. IP65 and above are common requirements in this space.
Getting a chassis from concept to production is a process with real decision points. Rushing any stage carries forward exponentially bigger problems.
Here's the practical path:
Start with a 3D CAD model and run it through a Design for Manufacturing (DFM) review. A good manufacturing partner flags issues before any material is cut. Common DFM catches:
● Draft angles missing on moldable surfaces
● Wall sections too thin for die casting
● Tolerance stack-ups that make connector fitment unreliable
● Undercuts that complicate tooling
Before you commit to tooling, build a physical prototype. This is where 3D printing or CNC-machined samples prove out fit, form, and basic function.
Don't skip this step. A $500 prototype catch saves a $15,000 tooling revision.
Once the design is validated, move to a low-volume production run. This is where you verify manufacturing consistency, catch assembly issues, and confirm tolerances hold across multiple units, not just the first one.
Low-volume runs using CNC or soft tooling bridge the gap between prototype and committed production tooling.
With a validated design and confirmed processes, you commit to hard production tooling for die casting or injection molding. At this stage, per-part costs drop significantly, and production consistency becomes the primary metric.
Stage | Method | Typical Lead Time |
Concept prototype | 3D printing / CNC | 3-7 days |
Functional prototype | CNC machining | 1-2 weeks |
Low-volume run | CNC / soft tooling | 2-4 weeks |
Production tooling | Die casting/injection molding | 4-8 weeks |
Mass production | Full tooling | Ongoing |
Pro tip: The single biggest mistake teams make is going straight from a 3D-printed prototype to full production tooling. The functional prototype stage exists to catch design issues that only reveal themselves in a real machined or cast part. It's not optional if you want your first production run to go smoothly.
TEAM MFG is structured specifically for this journey. With rapid prototyping, CNC machining, pressure die casting, and low-volume manufacturing all under one roof, you move through each stage without changing suppliers or losing context. Delivery within one week is available for qualifying orders, which matters when your product timeline doesn't have room to wait.
Designing and manufacturing a great electronics chassis isn't about picking the flashiest material or the most advanced process. It's about making the right call at every stage, from the first thermal layout decision to the final production run.
Here's what to carry forward:
● The chassis frame is structural; the full chassis system is functional. Know the difference before you design.
● Thermal management comes first. Aesthetics come last.
● Material choice determines machinability, thermal performance, EMI shielding, and long-term cost.
● Match your manufacturing method to your volume and tolerance requirements, not just your budget.
● A custom electronics chassis almost always outperforms off-the-shelf at production scale.
● Never skip the functional prototype stage. It's where expensive mistakes get caught cheaply.
● Prototype-to-production works best when one partner owns the whole process.
When you're ready to move from CAD file to finished chassis, TEAM MFG is built for exactly that workflow. Their ISO 9001-certified facility in China handles everything from rapid prototyping and CNC machining to high-pressure die casting and low-volume manufacturing, all under one roof, all with tolerances down to ±0.01mm. Whether you're validating a first prototype or scaling to thousands of units, you get a dedicated contact, fast turnaround, and a team that has delivered for 1,302 clients across 73 countries.
