Pressure die casting is a high-precision manufacturing process in which molten metal is injected under high pressure into a steel mold (die), producing complex, net-shape metal parts with excellent surface finish and tight tolerances. It is the go-to solution for industries demanding high-volume production of lightweight, structurally sound components. TEAM MFG is a professional pressure die casting manufacturer offering custom die casting services from prototype to mass production, delivering high-precision aluminum, zinc, and magnesium die cast parts with full engineering support, tooling, CNC machining, and surface finishing — all under one roof.

When thousands or millions of identical metal components are required, pressure die casting offers a balance between speed, strength, dimensional consistency, and cost efficiency that traditional machining cannot achieve. That is the reason why companies choose pressure die casting:

• High production efficiency – Cycle times as short as a few seconds per shot

• Repeatable quality – Consistent dimensions across thousands of parts

• Complex geometries – Thin walls, internal features, and integrated functions in a single casting

• Lightweight metal components – Ideal for aluminum and magnesium alloys

• Reduced machining costs – Near-net-shape parts minimize secondary operations

TEAM MFG is your China-based manufacturing partner offering full-service support from engineering consultation through tooling, casting, CNC machining, and surface finishing. We help global customers bring complex metal parts from concept to mass production with confidence.

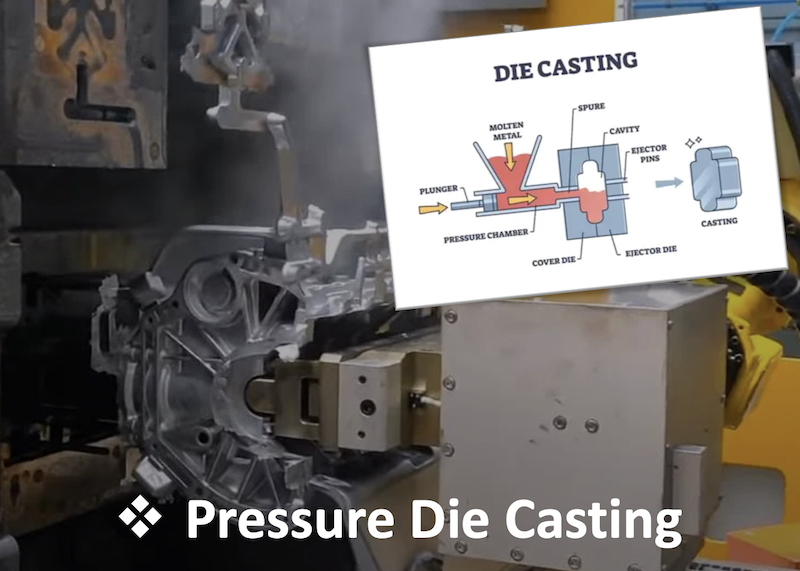

How Does the Pressure Die Casting Process Work?

Understanding the die casting process is essential for design engineers and procurement teams evaluating manufacturing options. Here is a step-by-step overview:

Step 1: Die Preparation

The steel mold (die) is preheated and coated with a release agent to facilitate part ejection and extend tool life.

Step 2: Casting

Molten metal (typically aluminum, zinc, or magnesium alloy) is injected into the die cavity at high pressure (typically 1,500–12,000 PSI). This high pressure ensures the metal fills even the most intricate features of the mold.

Step 3: Solidification

The metal cools and solidifies rapidly within the die. Cooling time depends on wall thickness, alloy type, and part geometry.

Step 4: Ejection

The die opens, and ejector pins push the solidified casting out of the mold.

Step 5: Trimming & Post-Processing

Excess material (flash, overflow, and runners) is trimmed. Parts may then proceed to CNC machining, surface treatment, or assembly.

Key Advantages of the Process:

Design for Pressure Die Casting

Good design is the foundation of successful die casting. At TEAM MFG, our engineering team works with customers during the design phase to optimize parts for manufacturability, reduce cost, and prevent defects.

Wall Thickness

Uniform wall thickness is critical. Uneven walls cause:

• Differential cooling rates

• Shrinkage porosity

• Warpage

TEAM MFG Recommendation: Maintain wall thickness within 10–20% variation across the part. Our engineers can perform mold flow simulation to identify potential issues before tooling is built.

Draft Angles

Draft angles allow the casting to be ejected cleanly from the die without damage.

• Typical draft: 1°–3° per side

• Deeper features require more draft

• Textured surfaces need additional draft

Ribs and Boss Design

How to increase strength without increasing material thickness:

Ribs and bosses are essential design features in die casting. They add structural rigidity and provide mounting points without adding bulk.

Design Guidelines:

Why this matters:

• Prevents sink marks on the opposite surface

• Reduces material usage and cycle time

• Improves filling and reduces porosity risk

At TEAM MFG, we review rib and boss geometry during DFM (Design for Manufacturability) analysis and provide optimization suggestions before tooling begins.

Avoiding Common Die Casting Defects

Understanding common defects and their solutions helps engineers design better parts and select the right supplier.

TEAM MFG Advantage: Our in-house engineering team uses mold flow simulation (Magma, AnyCasting) to predict and eliminate these defects before the first shot is made. This saves our customers time and cost compared to suppliers who rely on trial-and-error.

Pressure Die Casting Materials

TEAM MFG works with a wide range of die casting alloys to meet different mechanical, thermal, and corrosion requirements:

Not sure which alloy is right for your project? Contact TEAM MFG for a free material recommendation based on your application requirements.

Pressure Die Casting Tooling Solutions

Tooling is the heart of pressure die casting. The right tooling strategy depends on your project stage, volume requirements, and budget.

Prototype Tooling

Suitable for:

• Design validation

• Small batch production (100–5,000 pcs)

• Market testing and customer samples

Options:

• Soft tooling (aluminum or pre-hardened steel): Lower cost, faster lead time (2–4 weeks), suitable for low-volume runs

• Rapid tooling with sand casting or gravity casting: For initial form/fit testing before committing to hard tooling

Production Tooling

Suitable for:

• Medium to high volume (10,000+ pcs)

• Long-term supply programs

Features:

• H13 or SKD61 hardened steel dies

• Multi-cavity configurations for higher output

• Conformal cooling channels for cycle time optimization

• Designed for 100,000–1,000,000+ shot life

Tooling at TEAM MFG

• In-house tool design and manufacturing

• Mold flow simulation before cutting steel

• T1 sample delivery within 4–6 weeks (standard)

• Tool life management and maintenance program

• Tooling ownership options: customer-owned or TEAM MFG-managed

Surface Finishing & Post-Processing

Raw die castings often require surface treatment to meet functional or aesthetic requirements. TEAM MFG provides a full range of finishing services in-house or through qualified partners:

CNC Machining

• Precision machining of critical dimensions, threads, and mating surfaces

• Tolerances down to ±0.01mm

• Multi-axis machining for complex features

Powder Coating

Benefits:

• Excellent corrosion resistance

• Wide range of colors and textures

• Durable, scratch-resistant finish

• Environmentally friendly (no solvents)

Typical applications: Outdoor equipment, automotive brackets, industrial housings

Anodizing (Aluminum Parts)

Benefits:

• Superior oxidation and corrosion resistance

• Decorative appearance (clear, black, colored)

• Increased surface hardness

• Improved paint adhesion (when used as primer)

Typical applications: Consumer electronics enclosures, architectural components, automotive trim

Shot Blasting

Benefits:

• Removes surface marks, oxide layers, and minor imperfections

• Creates uniform matte texture

• Improves paint/coating adhesion

• Improves overall appearance consistency

Painting and Plating

Options include:

• Wet painting (spray)

• Electroplating (chrome, nickel, zinc)

• E-coating

• PVD coating

Typical applications: Consumer products, automotive appearance parts, decorative hardware

Quality Control for Pressure Die Casting

Quality control is critical when sourcing die cast parts from overseas. TEAM MFG implements a multi-stage QC system to ensure every shipment meets your specifications.

Incoming Material Inspection

• Alloy verification: Spectrometer analysis to confirm chemical composition

• Material certificates: Mill certificates provided with every batch

• Ingot traceability: Full lot tracking from raw material to finished part

In-Process Inspection

• Dimensional checks: CMM (Coordinate Measuring Machine) measurement at defined intervals

• Visual inspection: 100% visual check for surface defects (cracks, porosity, flash)

• Process monitoring: Real-time tracking of injection pressure, temperature, and cycle time

• X-ray inspection: For critical safety parts requiring internal integrity verification

• First Article Inspection (FAI): Full dimensional report before mass production approval

Final Inspection & Packaging

• AQL sampling or 100% inspection based on customer requirements

• Functional testing (pressure test, torque test) when applicable

• Protective packaging to prevent damage during shipping

• Full inspection reports and certificates included with shipment

Certifications:

• ISO 9001:2015

• RoHS / REACH compliance

Applications

TEAM MFG's pressure die casting capabilities serve a wide range of industries:

Why Choose TEAM MFG as Your Die Casting Supplier?

Our commitment: We don't just make parts. We solve manufacturing problems.

Get Custom Pressure Die Casting Services from TEAM MFG

From initial design review to final production, TEAM MFG helps global customers manufacture reliable custom metal parts through advanced pressure die casting, CNC machining, and finishing solutions.

Whether you need a single prototype for validation or a million-piece annual production program, our team is ready to support your project with engineering expertise, competitive pricing, and dependable delivery.

[Request a Free Die Casting Quote →]

Upload your 3D file (STEP, IGES, or PDF drawing) and receive a detailed quotation with DFM feedback within 24–48 hours.
