You're about to spend $50,000 on production tooling. One wrong decision could delay your launch by months and blow your budget completely. Yet 73% of manufacturers admit they choose tooling based on price alone — then wonder why their parts fail quality checks.
Production tooling isn't just about cutting metal or shaping plastic. It's the backbone that determines whether you'll ship 1,000 perfect parts or 10,000 defective ones. This guide breaks down everything from rapid tooling to bridge tooling strategies that actually work.
What you'll learn:
● Types of tooling and when each makes sense
● Manufacturing tooling selection criteria that matter
● Die casting tooling vs. injection molding tools comparison
● Bridge tooling strategies for faster market entry
● 3D print mold applications and limitations
● Cost-saving tips from tool and die-making companies
We've helped over 1,300 clients select the right tooling for their projects at TEAM MFG. Our engineers have seen what works (and what fails spectacularly) across everything from cavity molding to extrusion tooling. Let's make sure you get it right the first time.

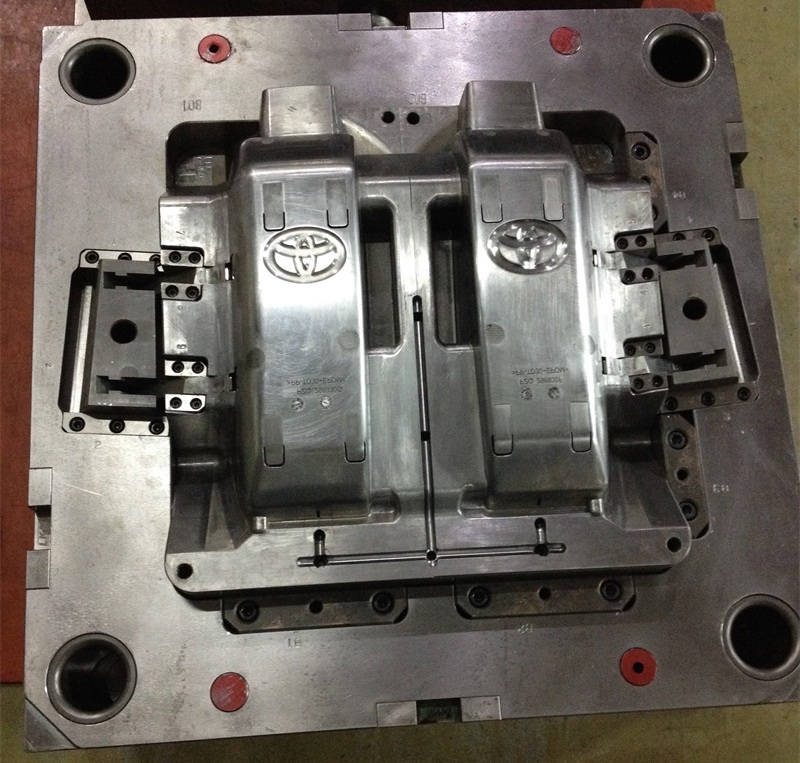

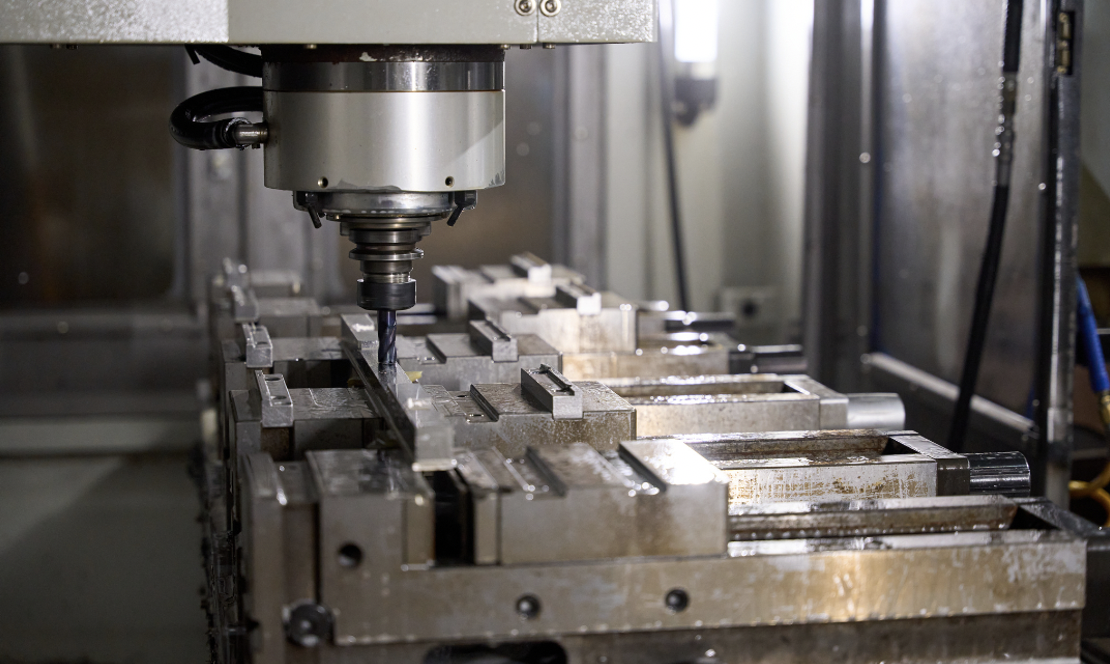

Production tooling is the specialized equipment used to manufacture parts at scale. Think of it as the master template that shapes raw materials into finished products — whether you're stamping metal, molding plastic, or casting aluminum.

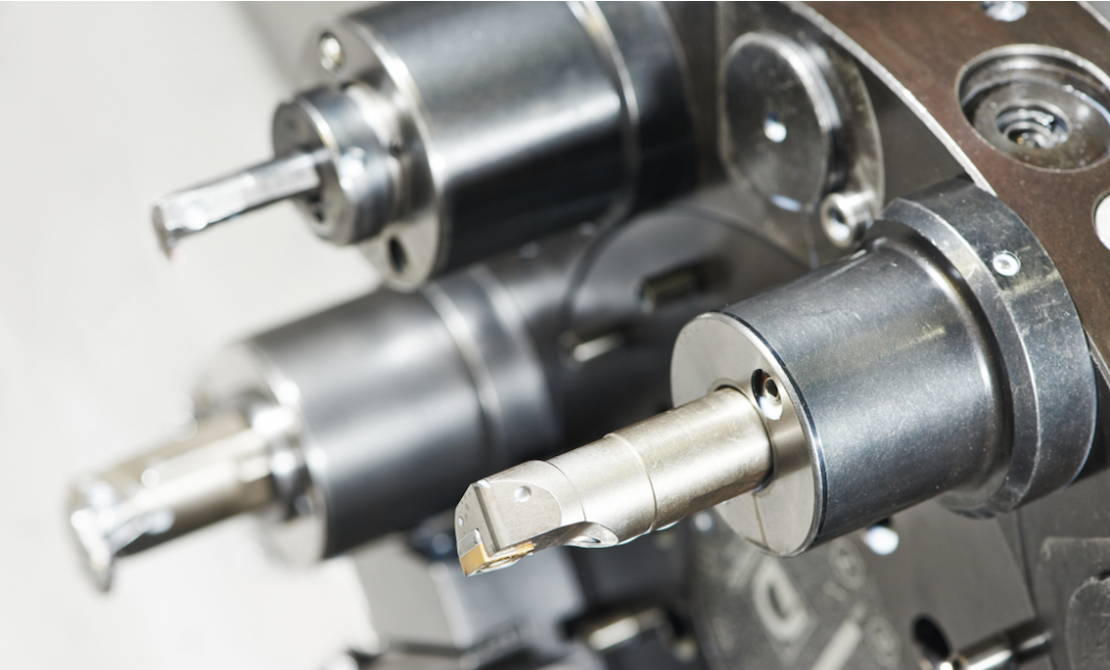

Here's what defines tooling: it's built for repetition. While a prototype might use soft materials or 3D printing, production tools use hardened steel or aluminum to withstand thousands (sometimes millions) of cycles. These aren't just simple molds — they're precision-engineered systems with cooling channels, ejection mechanisms, and tolerances measured in thousandths of an inch.
Manufacturing tooling falls into two camps:
● Hard tooling: Steel-based tools for high-volume production (100,000+ parts)
● Soft tooling: Aluminum or resin tools for shorter runs (under 10,000 parts)
The choice impacts everything. Hard tooling costs more upfront but delivers lower per-part costs at volume. Soft tooling gets you to market faster but wears out sooner.
The bottom line? Production tooling transforms your CAD files into physical products. Without the right tooling strategy, you're either overspending on equipment you don't need or cutting corners that'll cost you later.
Picking the right tooling isn't rocket science — but 87% of projects still blow their budgets because teams focus on the wrong factors. Here's what actually moves the needle.
Your production volume determines everything. Get this wrong, and you'll either overpay upfront or watch your per-part costs eat you alive.
Production Volume | Best Tooling Type | Cost per Part | Initial Investment |
100-1,000 units | 3D print mold or soft tooling | $50-200 | $2,000-10,000 |
1,000-10,000 units | Aluminum tooling | $10-50 | $10,000-30,000 |
10,000-100,000 units | Pre-hardened steel | $2-10 | $30,000-75,000 |
100,000+ units | Hardened steel | $0.50-5 | $75,000-200,000+ |
Not all tools play nice with every material. Glass-filled nylon will destroy aluminum tooling in weeks. Soft plastics might stick to certain steel grades.
Before committing, verify:
● Chemical resistance (especially for POM, PVC)
● Thermal requirements (peek needs 400°C+ capability)
● Abrasion resistance for filled materials
● Surface finish compatibility
Here's the truth: Complex tooling takes 8-12 weeks. Anyone promising 2 weeks for production-ready tools is selling you bridge tooling (which might be exactly what you need).
Standard timelines:
● Simple aluminum tools: 3-4 weeks
● Multi-cavity steel molds: 8-10 weeks
● Complex die casting tools: 10-14 weeks
● Tools with side actions or hot runners: Add 2-3 weeks
Pro tip: Start tooling design during prototype validation. You'll shave 3-4 weeks off your launch timeline. At TEAM MFG, we run both processes parallel — prototype parts ship while production tooling gets cut.
Both create parts from molds, but that's where the similarities end. Choose wrong, and you'll spend twice fixing what should've worked the first time.
● Die casting tooling forces molten metal into steel molds under extreme pressure (10,000-25,000 PSI). These tools must withstand temperatures up to 700°C and erosive metal flow. Think automotive engine blocks, laptop frames, or LED heat sinks.
● Injection molding tools push melted plastic into molds at lower pressures (500-2,000 PSI) and temperatures (200-400°C). They're precision instruments with complex cooling systems and tight tolerances. Perfect for consumer electronics, medical devices, or any plastic part you can imagine.
Factor | Die Casting Mold | Injection Molding Tools |
Initial Cost | $50,000-500,000 | $10,000-100,000 |
Material Options | Aluminum, zinc, magnesium | 100+ plastic types |
Part Strength | Excellent (metal) | Good (varies by plastic) |
Surface Finish | Good, needs machining | Excellent, ready-to-use |
Typical Lead Time | 10-14 weeks | 6-10 weeks |
Lifespan | 50,000-100,000 shots | 100,000-1M+ shots |
Design Changes | Expensive, often impossible | Moderate cost, feasible |
Go with die casting when:
● You need metal properties (conductivity, strength)
● Heat dissipation is critical
● Part requires CNC-level precision after casting
● Volume exceeds 5,000 units annually
Choose injection molding when:
● Plastic properties work for your application
● Complex geometries with undercuts
● Color and texture variety matters
● You need 1,000 to millions of parts
The kicker? Some projects need both. We've seen clients use injection molding for housings and die casting for internal heat sinks. One product, two tooling strategies, perfect results.
You've got orders to fill, but production tooling won't be ready for 12 weeks. Bridge tooling gets you selling in 3-4 weeks while the real tools get built.
Bridge tooling (also called rapid tooling) uses aluminum or soft steel molds to produce 500-5,000 parts fast. These aren't prototypes — they're production-quality parts made with temporary tools.
Here's the genius part: You test the market, validate designs, and generate revenue before committing to expensive hard tooling. If something needs tweaking, you haven't blown $100,000 on the wrong design.
1. Aluminum Cavity Molding
● Speed: 2-3 weeks
● Cost: $5,000-15,000
● Good for: 500-5,000 plastic parts
● Limitation: Simpler geometries only
2. 3D Printed Injection Molds
● Speed: 3-5 days
● Cost: $500-3,000
● Good for: 50-500 parts
● Limitation: Limited materials (ABS, PP, PE)
3. Soft Steel Tools
● Speed: 4-5 weeks
● Cost: $15,000-30,000
● Good for: 5,000-50,000 parts
● Limitation: No glass-filled materials
The math is simple. If hard tooling costs $80,000 and takes 12 weeks, but bridge tooling costs $15,000 and takes 3 weeks, you break even at around 2,000 parts when factoring in lost sales.
Critical success factors:
● Design for both bridge AND production tooling
● Use bridge tools to test risky features
● Plan the transition timing carefully
● Keep bridge tools as backup production capacity
Smart companies use bridge tooling for seasonal products, too. Why invest $200,000 in hard tooling for a product that sells 3 months per year?
You've got orders to fill, but production tooling won't be ready for 12 weeks. Bridge tooling gets you selling in 3-4 weeks while the real tools get built.
Bridge tooling (also called rapid tooling) uses aluminum or soft steel molds to produce 500-5,000 parts fast. These aren't prototypes — they're production-quality parts made with temporary tools.
Here's the genius part: You test the market, validate designs, and generate revenue before committing to expensive hard tooling. If something needs tweaking, you haven't blown $100,000 on the wrong design.
1. Aluminum Cavity Molding
● Speed: 2-3 weeks
● Cost: $5,000-15,000
● Good for: 500-5,000 plastic parts
● Limitation: Simpler geometries only
2. 3D Printed Injection Molds
● Speed: 3-5 days
● Cost: $500-3,000
● Good for: 50-500 parts
● Limitation: Limited materials (ABS, PP, PE)
3. Soft Steel Tools
● Speed: 4-5 weeks
● Cost: $15,000-30,000
● Good for: 5,000-50,000 parts
● Limitation: No glass-filled materials
The math is simple. If hard tooling costs $80,000 and takes 12 weeks, but bridge tooling costs $15,000 and takes 3 weeks, you break even at around 2,000 parts when factoring in lost sales.
Critical success factors:
● Design for both bridge AND production tooling
● Plan the transition timing carefully
● Keep bridge tools as backup production capacity
Smart companies use bridge tooling for seasonal products, too. Why invest $200,000 in hard tooling for a product that sells 3 months per year?
3D printed molds are the wild card of production tooling. They'll either save your project or waste precious time — depending on how you use them.
Low-pressure injection molding is the sweet spot. With desktop injection machines or modified presses running under 100 PSI, these molds can produce surprisingly good parts.
Perfect applications include:
● Overmolding electronics or sensors (50-200 parts)
● Market testing new designs (100-500 units)
● Custom medical devices in small batches
● Replacement parts for legacy equipment
The materials that work best:
● PP (Polypropylene)
● PE (Polyethylene)
● TPE (Thermoplastic Elastomer)
● EVA (Ethylene Vinyl Acetate)
● Low-temperature ABS
Let's be honest about what 3D printed molds can't do:
Challenge | Why It Happens | Workaround |
Surface finish | Layer lines transfer to parts | Post-process with vapor smoothing |
Part tolerance | Molds deform under pressure | Design 0.1mm larger cavities |
Cooling time | Poor thermal conductivity | Run 50% slower cycles |
Material options | Can't handle temps over 150°C | Stick to low-temp plastics |
Lifespan | 50-500 shots max | Plan for multiple molds |
The secret? Don't treat them like traditional molds. They need special handling:
Print settings matter: Use 100% infill, 0.1mm layers, and oriented for strength
Post-processing is mandatory: Anneal resin molds, vapor smooth SLA prints
Mold release is critical: Apply every 5-10 shots
Monitor degradation: Check dimensions every 25 parts
Pro tip: Combine 3D printed mold inserts with aluminum frames. You get the speed of printing with the stability of metal. We've pushed these hybrid tools to 2,000 shots at TEAM MFG — 10x what pure printed molds achieve.
After building tools for 15,000+ projects, mould manufacturing pros know exactly where money gets wasted. Here's what they won't always tell you upfront.
Standardize your base dimensions. Mold bases come in standard sizes. Design your part to fit a 6"×6" base instead of 6.5"×6.5", and you'll save $5,000-8,000 instantly.
Eliminate unnecessary complexity:
● Each side action adds $8,000-12,000
● Hydraulic cores: Add $15,000+
● Hot runner systems: $10,000-30,000
● Optical surface finish: $5,000-10,000
Ask yourself: Does this feature sell the product or just look cool on CAD?
Everyone thinks more cavities = lower part cost. Wrong. There's a calculation most skip:
● 1 cavity: $30,000 tool, 30-second cycle = 120 parts/hour
● 4 cavity: $65,000 tool, 35-second cycle = 411 parts/hour
● 8 cavity: $110,000 tool, 40-second cycle = 720 parts/hour
The truth? Unless you're making 500,000+ parts annually, 2-4 cavities hit the sweet spot. Beyond that, you're just financing expensive steel.
Order tools during slow seasons (January-February, July-August). Shops discount 10-15% to keep machines running.
Bundle your projects. Got three products launching this year? Order all tooling together for 20-25% savings. Tool shops love predictable workflow.
Design with standard components:
● Standard ejector pins: Save $2,000
● Off-the-shelf hot runner tips: Save $5,000
● Common gate locations: Save $3,000
Here's what separates pros from amateurs: preventive maintenance costs $2,000 yearly but prevents $20,000 repairs.
Must-do maintenance schedule:
● Every 10,000 shots: Clean and inspect
● Every 50,000 shots: Replace wear plates
● Every 100,000 shots: Full refurbishment
● Daily: Proper storage with rust prevention
Skip this, and watch your tools die at 200,000 shots instead of 1 million.
Yes, offshore tooling costs 40-60% less. But factor in:
● Shipping: $2,000-5,000
● Engineering changes: 3-week delays
● Quality issues: 15-20% rejection rate first batch
● Communication delays: Everything takes 2x longer
The smart play? Use offshore for simple, high-volume tools. Keep complex or iterative projects local. TEAM MFG bridges this gap — China prices with Western communication standards and 5-day delivery to your door.
Production tooling decisions shape your entire manufacturing journey. Choose wisely, and you'll ship quality parts on time and on budget. Choose poorly? You'll join the 73% burning cash on fixes and delays.
Key takeaways that'll save you time and money:
● Match tooling type to production volume — soft tooling under 10,000 units, hard tooling above
● Bridge tooling lets you sell while production tools get built
● 3D printed molds work for 50-500 parts with the right materials
● Standard mold bases and components cut costs by 30-40%
● Multi-cavity molds only make sense above 500,000 parts annually
● Preventive maintenance extends tool life from 200,000 to 1 million shots
We've guided 1,300+ companies through these exact decisions at TEAM MFG. Whether you need rapid prototypes, bridge tooling to test markets, or full production tools for millions of parts, our engineers know what works. One call saves weeks of costly mistakes — and gets you parts in 5 days.
Production tooling refers to the durable molds, dies, and fixtures used to mass-produce parts with consistent accuracy and efficiency. It’s the foundation of scalable manufacturing processes like injection molding, die casting, and CNC machining.
Prototype tooling is made from softer materials for small batches and quick design validation. Production tooling, on the other hand, uses hardened steel or aluminum to handle thousands or millions of production cycles with high precision.
Lead time depends on tool complexity and material.
Simple steel tools: 3–4 weeks
Multi-cavity steel molds: 8–10 weeks
Complex die casting tools: 10–14 weeks
Starting tooling design during prototype validation can shorten timelines.
Costs vary by size, material, and part geometry.
Steel tools: $6,000–$200,000+
Investing in the right tooling ensures lower per-part costs and higher production efficiency.
The most common types include:
Injection molding tools for plastic parts
Die casting tools for metal components
Stamping dies for sheet metal
Extrusion and blow molds for continuous profiles or hollow products
TEAM MFG provides end-to-end tooling solutions — from design and rapid prototyping to high-volume production. Our engineering team optimizes each tool for cycle time, surface finish, and durability, ensuring you get reliable results and faster market entry.
