Pressure die casting is a volume metal forming process in which molten alloy is casted under high pressure into a reusable steel die to produce complex, near-net-shape components with tight tolerances and excellent surface finish. It produces complex, near-net-shape components with tight dimensional tolerances and a smooth surface finish. For engineers and purchasing teams comparing production methods, understanding the process helps determine whether it fits the part geometry, production volume, and cost targets.
Pressure die casting injects molten metal—typically aluminum, zinc, or magnesium—into a reusable steel die at pressures ranging from 3,000 to more than 15,000 psi. The die, also called a tool or mold, is machined from hardened tool steel and consists of two halves: a fixed half and a moving half.
After the metal solidifies, the die opens and ejector pins push the casting out. The result is a dimensionally accurate component that often needs little or no secondary machining. That combination makes pressure die casting highly efficient for producing complex metal parts in high volumes.
The process follows a repeatable five-step cycle:
Melting: The selected alloy is melted in a furnace to a controlled temperature.
Casting: Molten metal is injected into the die cavity at high velocity and pressure through a shot sleeve or gooseneck.
Solidification: The metal cools and solidifies rapidly against the water-cooled steel die walls.
Die opening: The two die halves separate along the parting line.
Ejection: Ejector pins push the casting out of the die, and the cycle repeats.
Cycle times typically range from a few seconds to under a minute, depending on part size and wall thickness. This speed is what makes the process economically viable for medium-to-high production volumes.
Manufacturers turn to pressure die casting when a project requires speed, precision, and design flexibility. Few alternative processes deliver all three advantages at the same time.
First, production rates are high. A single die can produce hundreds of thousands of parts over its service life with consistent dimensional repeatability.
Second, the high injection pressure allows the metal to fill thin-wall sections—often below 1 mm—that would be impossible with gravity-fed processes.
Third, complex internal and external geometries can be formed in a single shot, reducing or eliminating assembly steps. Finally, the smooth as-cast surface finish (typically Ra 1.6–3.2 µm) minimizes post-processing, lowering total part cost at volume.
Understanding the major pressure die casting methods helps engineers select the right machine configuration for their alloy, part design, and production budget.

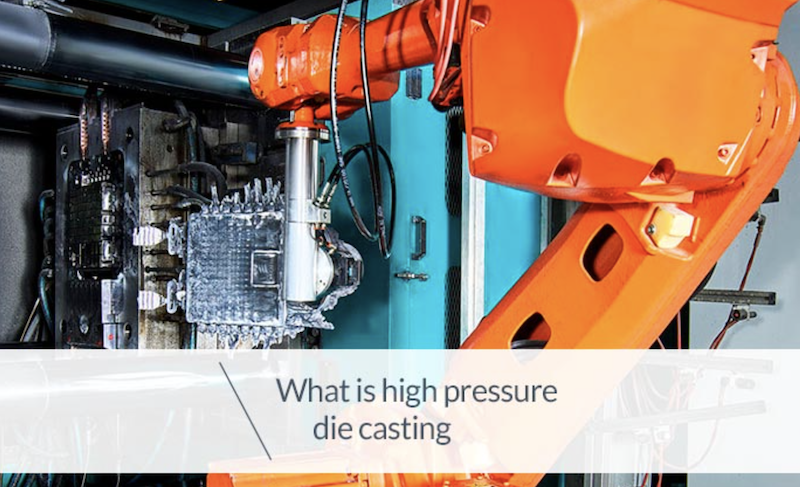

High pressure die casting, commonly abbreviated as HPDC, is the most widely used variant in industrial manufacturing. In HPDC, molten metal is injected at high velocity—often 20 to 60 m/s—and pressures between3,000 and 15,000 psi into the die cavity.
This combination of speed and pressure makes it possible to produce thin-walled, complex parts with excellent surface quality. HPDC is widely used for aluminum and magnesium components in automotive, electronics, and industrial applications where dimensional consistency over large production runs is essential.
The two main machine configurations for pressure die casting differ in how molten metal is delivered to the die.
Hot chamber die casting uses a gooseneck mechanism submerged directly in the molten metal pool. The injection system is in constant contact with the melt, which allows very fast cycle times. This method is suited for low-melting-point alloys such as zinc and magnesium, where operating temperatures stay below approximately 450 °C.
Cold chamber die casting uses a separate ladle to transfer molten metal into a shot sleeve before injection. Because the injection system is not submerged, it can handle higher-melting-point alloys like aluminum and copper-based alloys. Cycle times are slightly longer, but the process accommodates the temperatures required for these materials.
Feature | Hot Chamber | Cold Chamber |
Compatible alloys | Zinc, magnesium, lead | Aluminum, copper, brass |
Operating temperature | Up to ~450 °C | Up to ~700 °C+ |
Cycle time | Faster (shorter shot cycle) | Slightly longer |
Typical applications | Small hardware, connectors, housings | Automotive parts, structural components |
Machine cost | Generally lower | Higher due to larger tonnage requirements |
Choosing between the two depends primarily on your alloy selection and part size.
Buyers often need to compare pressure die casting with other manufacturing methods. The table below highlights the key differences:
Criteria | Pressure Die Casting | Sand Casting | Investment Casting | Gravity Die Casting |
Tooling cost | High (steel die) | Low (sand mold) | Medium (ceramic shell) | Medium (metal mold) |
Surface finish | Excellent (Ra 0.8–1.6 µm) | Rough (Ra 6.3–25 µm) | Good (Ra 1.6–6.3 µm) | Fair (Ra 3.2–12.5 µm) |
Dimensional tolerance | ±0.1–0.3 mm typical | ±0.5–1.0 mm | ±0.1–0.5 mm | ±0.2–0.5 mm |
Production volume | High (10,000+) | Low to medium | Low to medium | Medium |
Part complexity | High (thin walls, intricate features) | Moderate | High | Moderate |
Secondary machining | Minimal | Often required | Minimal to moderate | Moderate |
Pressure die casting often becomes more economical when annual volumes reach roughly 5,000–10,000 units and the part requires tight tolerances or thin walls. For prototypes and low-volume projects, sand casting or investment casting may involve less upfront tooling expense.
Pressure die casting is used across many industries. The examples below show how material and design choices relate to real product requirements.
The automotive industry is the largest consumer of pressure die cast parts. Aluminum HPDC components include transmission housings, engine brackets, oil pans, and structural members.
In electric vehicles, die casting is increasingly used for battery tray enclosures, motor housings, and inverter casings. These parts demand high dimensional accuracy for sealing surfaces, good thermal conductivity, and the ability to integrate mounting features directly into the casting—reducing part count and assembly time.
Aluminum and zinc die castings are common in consumer electronics for housings, heat sinks, and structural frames. The process produces thin-wall enclosures with integrated bosses, ribs, and snap-fit features that would be expensive to machine from billet.

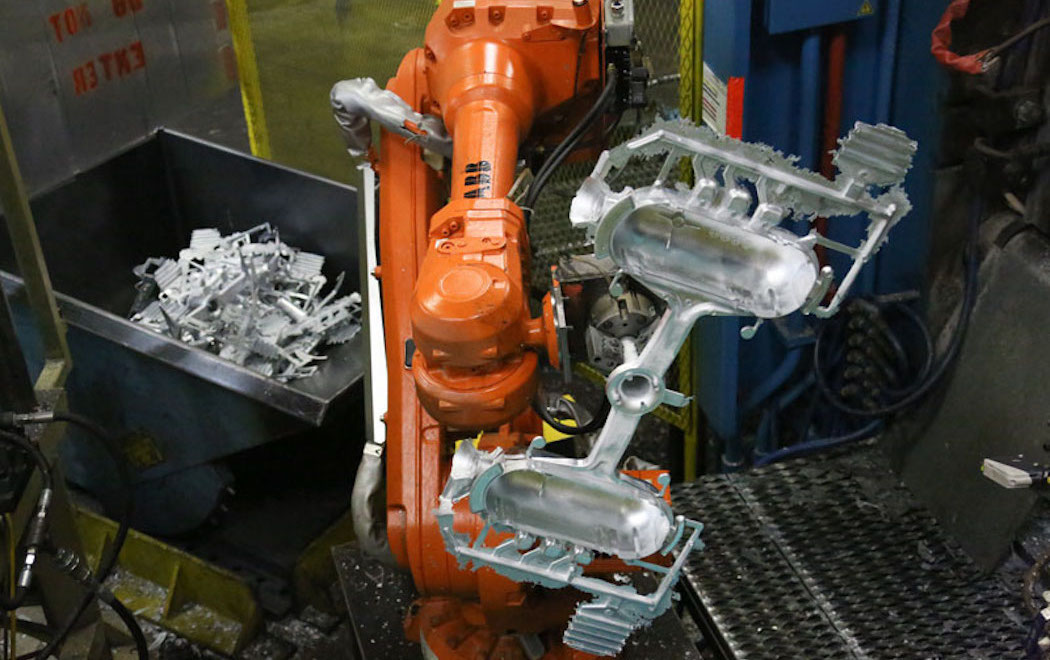

Zinc die casting is particularly popular for small connectors, shielding cans, and hardware components where tight tolerances and a smooth as-cast finish reduce or eliminate plating preparation. For thermal management, aluminum castings provide a cost-effective path to integrated heat dissipation without secondary bonding operations.
In industrial applications, pressure die casting produces pump housings, gear cases, motor end bells, valve bodies, and equipment brackets. These components benefit from the process's ability to maintain consistent wall thickness and internal passage geometry across large production runs.
For machinery builders, the repeatability of die cast parts simplifies assembly and reduces incoming inspection burden. Aluminum alloys such as A380 and ADC12 offer a favorable balance of strength, castability, and corrosion resistance for these applications.
Even a well-controlled pressure die casting process can produce defects that affect part performance or appearance. Understanding the root causes helps engineers improve designs and work with suppliers to reduce risk.
Porosity is the most common defect in pressure die castings. It appears as small voids or bubbles within the casting wall and can compromise pressure-tightness, fatigue strength, and weldability.
Causes:
Turbulent metal flow during injection traps air in the cavity.
Inadequate or blocked venting prevents displaced air from escaping.
Excessive shot speed creates spray-like filling that folds air into the melt.
Lubricant or release agent decomposition generates gas at the die surface.
Prevention approaches:
Optimize gate design and runner geometry to promote laminar, directional filling.
Size and position overflow wells and vents to capture the last metal to fill.
Use vacuum-assist systems to evacuate air from the cavity before injection.
Control shot profile with a slow first phase to minimize turbulence, followed by a fast second phase to fill thin sections.
Select low-gas release die lubricants and apply them in controlled quantities.
For parts requiring pressure tightness or structural integrity, specifying porosity acceptance criteria (such as ASTM E505 reference radiographs) during the quoting stage helps align expectations between buyer and supplier.
