This guide cuts through the theory and shows you exactly how to turn raw stock into precision parts. We'll cover everything from basic G-code to advanced techniques that separate good parts from perfect ones.
What you'll learn:
● G-code fundamentals and when to use each command
● Tool selection secrets for different materials
● Setup techniques that save hours of troubleshooting
● Programming shortcuts pros actually use
● Common crashes and how to avoid them
● Quality control methods that catch problems early
At TEAM MFG, we've run thousands of CNC lathe programs across 12+ years. Our machinists handle everything from prototypes to production runs, so we know what actually works on the shop floor. Need parts made instead? We've got you covered with our CNC machining services.

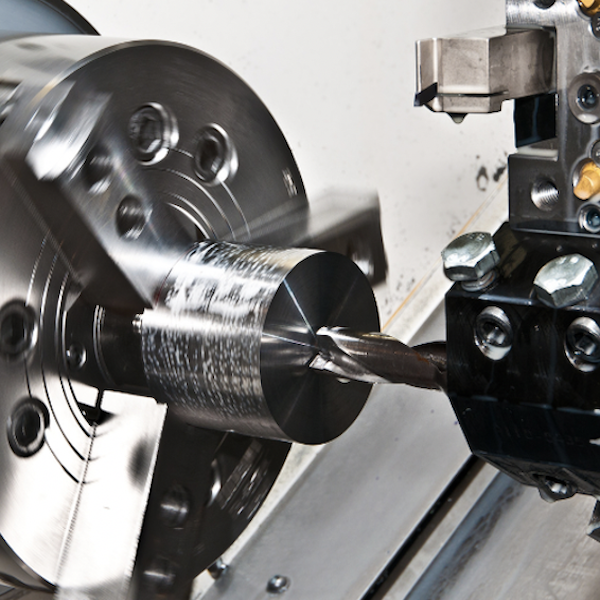

A CNC lathe is basically a computer-controlled machine that spins your workpiece while cutting tools shape it. Think of it like pottery, except you're working with metal, plastic, or composites instead of clay. And instead of using your hands, you've got precision tools to do the work.
The "CNC" part stands for Computer Numerical Control. You feed the machine a program (written in G-code), and it executes every move automatically. No more cranking handles or eyeballing measurements like the old manual lathes.
Here's what makes CNC lathes different from other machines:
● Rotation-based cutting: The part spins, tools stay (mostly) stationary
● Ideal for round parts: Shafts, bushings, threads, tapers
● 2-axis standard: X-axis (diameter) and Z-axis (length)
● Live tooling options: Some models add milling capabilities
● Sub-spindle features: Advanced lathes can work both ends
The core components you need to know:
Component | What It Does | Why It Matters |
Spindle | Holds and rotates your part | RPM range determines material options |
Chuck | Grips the workpiece | Wrong chuck = flying parts |
Turret | Holds multiple tools | Quick tool changes = faster cycles |
Tailstock | Supports long parts | Prevents deflection on shafts |
Control Panel | Your interface to the machine | Where you'll spend most of your time |
Modern CNC lathes come in several flavors. You've got your basic 2-axis machines for simple turning. Then there's multi-axis beasts with Y-axis movement, live tooling, and sub-spindles that can machine complex parts in one setup. Some even have automatic bar feeders that run lights-out for hours.
The accuracy? We're talking ±0.0002 inches on quality machines with proper setup. That's thinner than a human hair. But here's the thing – that precision only happens when you know what you're doing.
Modern manufacturing relies on different lathe configurations for different jobs. You can't machine a brake rotor on the same setup that makes watch components. Let's break down what's actually out there and when to use each type.

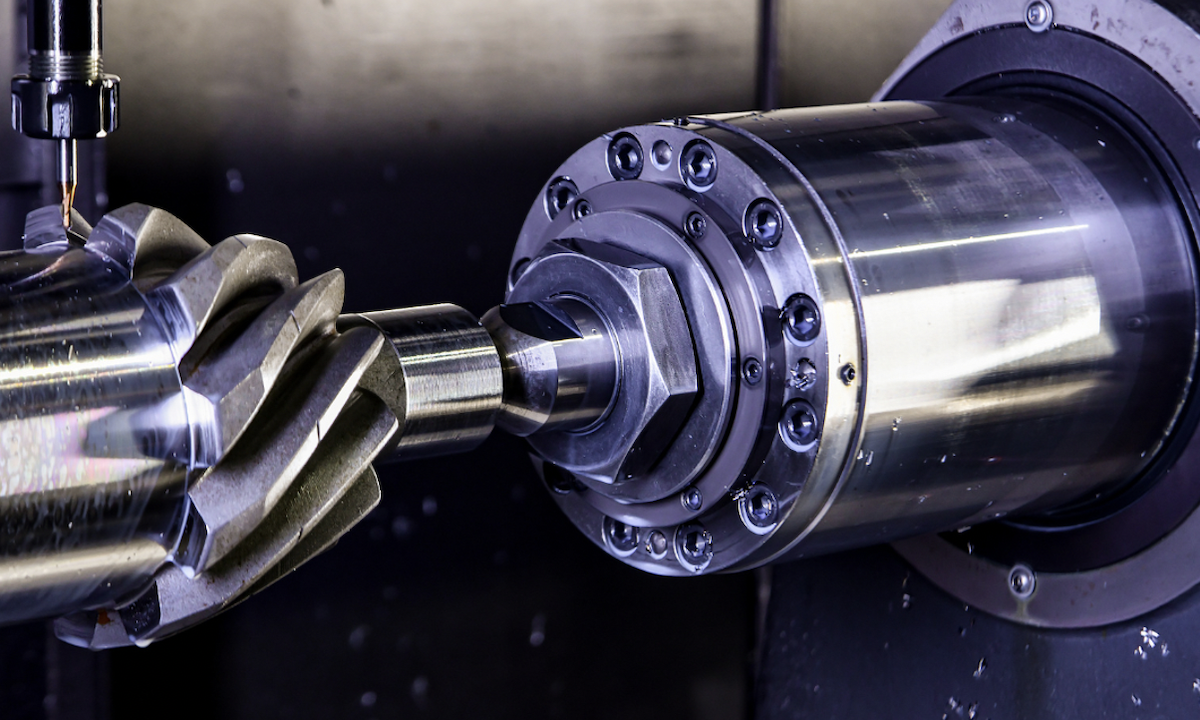

CNC machining is the umbrella term – it covers mills, routers, lathes, you name it. CNC lathe turning is specifically about rotating parts against cutting tools. While a mill moves the tool around a stationary part, a lathe spins the part itself.
The difference matters when you're choosing how to make something. Need a complex bracket? That's milling territory. Want a precision shaft? Now we're talking lathe work. The best manufacturers know when to use which process, and sometimes you need both. That's why TEAM MFG offers complete CNC services – some parts need milling and turning operations.

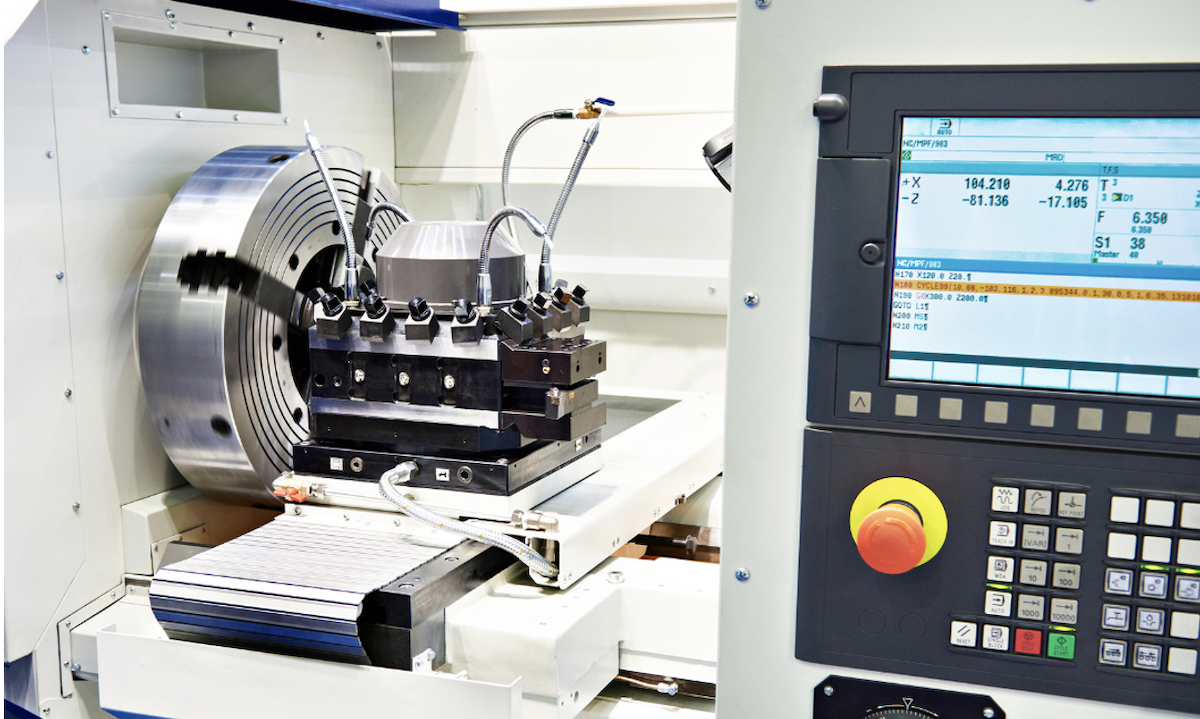

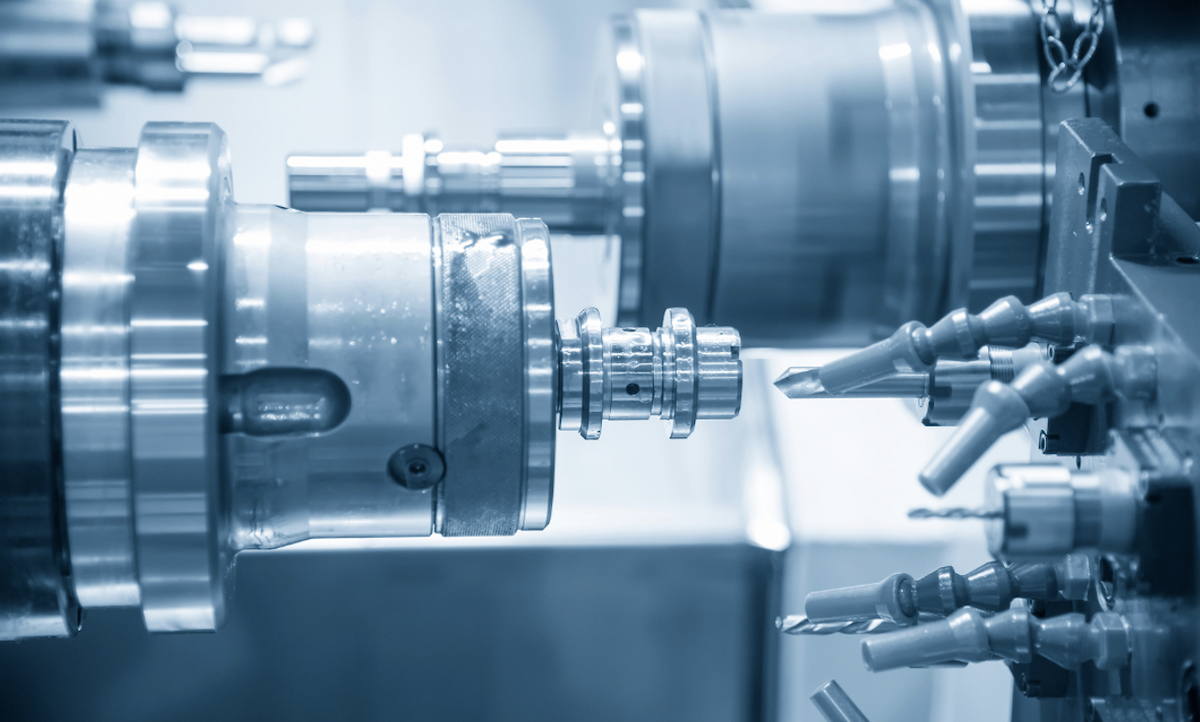

Forget the 50-page parts diagram. Here's what you'll interact with daily:
● Spindle nose: Where your chuck mounts (check that runout)
● Tool turret: Houses 8-12 tools typically
● Coolant nozzles: Aim these wrong and watch tools burn
● Door interlocks: Safety first – machine won't run without them
● Control pendant: Some operators never leave this spot
The quality of these components separates a $30K machine from a $300K one. Better parts mean tighter tolerances and longer life between rebuilds.
These are your workhorses. The spindle sits horizontal, and gravity helps with chip evacuation. 90% of turned parts get made on horizontal lathes because they're versatile, accessible, and relatively affordable.
Best for:
● Shafts and pins
● Threaded components
● Small to medium batch runs
● Parts under 20" diameter
Picture a massive record player. Vertical lathes handle the big, heavy stuff that would sag on a horizontal setup. The part sits on a rotating table, and gravity becomes your friend instead of your enemy.
VTLs excel at:
● Large diameter parts (think 10+ feet)
● Heavy workpieces (brake rotors, flywheels)
● Short, wide components
● Parts that need minimal Z-axis travel
The catch? VTLs cost serious money and need reinforced floors. But when you're machining a 2-ton turbine component, nothing else will do.
Programming breaks down into three chunks that every machinist needs to master. Miss one and your parts come out wrong – or worse, you crash the machine.
1. Setup Commands
G54 (work coordinate)
G90 (absolute positioning)
G95 (feed per revolution)
2. Cutting Operations
G01 (linear cutting)
G02/G03 (circular interpolation)
G76 (threading cycle)
3. Tool Changes & Safety
T0101 (tool selection)
M08 (coolant on)
G28 (return home)
Pro tip: Start with proven programs and modify them. Nobody writes from scratch anymore unless they're showing off. We keep a library of tested programs at TEAM MFG that we adapt for new parts – saves hours of debugging.
Here's the real sequence operators follow (not the textbook version):
Load program (and actually verify it's the right one)
Set work offset (touch off tools or use probe)
Dry run at 25% rapids with no part
First part at 50% speed with finger on feed hold
Measure everything before going full speed
Production mode once you're confident
Skip any step and you're asking for crashed tools or scrap parts. I've seen operators with 20 years of experience still follow this sequence religiously.
Let's talk real numbers that include everything you'll actually spend:
Machine Type | Price Range | Sweet Spot For |
Entry-level 2-axis | $30K - $80K | Startups, simple parts |
Production 2-axis | $80K - $200K | Job shops, repeat work |
Multi-axis with live tools | $200K - $500K | Complex parts, one-setup jobs |
Large VTL | $500K - $2M+ | Aerospace, energy sector |
But here's what nobody mentions – the machine is maybe 40% of your total cost. Add tooling ($20K minimum), workholding ($10K+), programming software, and training. Oh, and maintenance contracts that run $10K+ yearly. Suddenly, that "affordable" lathe needs a $200K budget.
Manual lathes still have their place. They're great for one-offs, repairs, and when you need to "feel" the cut. But for production? CNC wins every time.
Manual lathe strengths:
● Quick setup for simple jobs
● No programming needed
● Cheaper upfront cost
● Better for unique repairs
CNC lathe advantages:
● Consistency across 1000+ parts
● Complex geometries possible
● Unattended operation
● Faster cycle times
● Built-in quality control
We keep one manual lathe at TEAM MFG for quick modifications and repairs. Everything else runs CNC because consistency pays the bills.
Every turned part uses some combination of these fundamental operations. Master these seven, and you can make 80% of the turned parts out there.
● Facing: Cleaning up the end of your stock
● Straight turning: Reducing diameter
● Taper turning: Angled cuts (morse tapers, anyone?)
● Grooving: Cutting recesses for O-rings or snaprings
● Threading: External or internal threads
● Boring: Opening up internal diameters
● Parting: Cutting the finished part off
The trick isn't knowing what each cut does – it's knowing which order to do them in. Wrong sequence means re-fixturing or worse, impossible cuts.
Beginners always ask what they should practice on. Here's the progression that actually builds skills without wasting expensive material:
Starter Projects:
● Aluminum chess pieces (learn facing and profiling)
● Brass bushings (practice boring and tolerances)
● Steel pins (master surface finish)
Intermediate Builds:
● Threaded couplers (internal and external threads)
● Pulleys with grooves (multiple features)
● Custom spacers (holding tight tolerances)
Advanced Components:
● Hydraulic fittings (precise angles and sealing surfaces)
● Motor shafts (concentricity and balance)
● Medical implant prototypes (exotic materials)
Picking the wrong tool is like bringing a butter knife to cut steel. You'll get there eventually, but your tool life (and sanity) will suffer.
Aluminum wants sharp tools and high speeds. Forget those general-purpose inserts – you need polished edges with positive rake angles. We're talking 2-3 flute tools with massive chip evacuation.
● Speeds: 800-1500 SFM (yes, really)
● Best coating: Uncoated or ZrN (skip the TiN)
● Chip breaker: Wide, open geometries
● Coolant: Flood it or use mist – aluminum loves to weld to tools
Steel cutting separates beginners from pros. You need negative rake angles for strength and coatings that handle heat.
● Go-to insert: CNMG with TiAlN coating
● Speed range: 400-600 SFM for mild steel
● Depth of cut: .030"-.060" per pass
● Never skip: Proper chip breakers (or enjoy bird's nests)
Stainless work-hardens faster than your teenager's attitude changes. Keep tools moving and use sharp edges.
Material | Insert Grade | Speed (SFM) | Key Tip |
304 SS | PVD coated | 275-325 | Constant feed, no dwelling |
316 SS | CVD multi-layer | 250-300 | Through-coolant mandatory |
17-4 PH | Cermet | 200-250 | Small depths, high feed |
At TEAM MFG, we stock material-specific tooling. Generic inserts cost you time and money in the long run.
A solid setup is worth 10 good programs. Rush this part, and you'll spend all day chasing dimensions.
Touch off your tools three times, take the average. Sounds excessive? Watch your scrap rate drop 40% when you start doing this.
First touch – rough position
Second touch – verify
Third touch – confirm or investigate
If all three don't match within .0005", something's wrong. Maybe chips on the tool, maybe spindle warmup needed.
Here's what actually works:
● Always warm up the spindle (10 minutes at 50% max RPM)
● Set your Z-zero .005" proud, then face to the final
● Use an edge finder for X, never eyeball it
● Write your offset values down – machines crash, parameters disappear
Poor rigidity causes chatter, bad finish, and broken tools. Fix it with:
● Stick-out ratio: Keep tools under 4:1 length-to-diameter
● Jack screws: Use them on thin-wall parts
● Tailstock support: Anything over 3:1 length-to-diameter needs it
● Steady rests: Your friend for long shafts
We machine parts from prototype to production at TEAM MFG. These setup rules work whether you're making one part or one thousand.
Nobody has time to write perfect code from scratch. Here's how experienced programmers actually work.
Stop writing line-by-line code for standard operations. Use these instead:
G71 - Roughing cycle (removes 80% of material in 3 lines)
G76 - Threading (handles everything automatically)
G83 - Peck drilling (no more broken drills)
One G71 cycle replaces 50+ lines of code. Same result, fraction of the time.
Build a library of proven code blocks:
● Tool change template: T0101 M06 / G00 X6.0 Z2.0 / S1200 M03
● Rough turn macro: Saves 20 minutes per program
● Finish pass template: Consistent surface finish every time
Smart programmers are lazy programmers. Why reinvent what works?
Instead of hard-coding dimensions, use variables:
#100=2.500 (FINAL DIAMETER)
#101=4.000 (LENGTH)
G01 X#100 Z-#101
Change one number, update the entire program. This trick alone prevents 90% of scrap from typos.
Focus on the 20% of code that matters:
● Roughing passes (remove material fast)
● Final finish pass (determines quality)
● Tool changes (where crashes happen)
Everything else? Standard feeds and speeds from your chart.
TEAM MFG's programming team uses these shortcuts daily. Whether it's rapid prototyping or full production, efficient code means competitive pricing and faster delivery.
Crashes happen. The difference between rookies and pros? Pros crash less expensively. Here's what sends machines to the repair shop.
This kills more spindles than anything else. You updated tool 3's length but forgot to save it. Now your spindle's trying to go through the part at a rapid speed.
Prevention protocol:
● Write tool lengths on the setup sheet
● Double-check after any tool change
● Run the first approach at 5% rapids
● Keep your finger on the feed hold
Loading the wrong work offset (G54 vs G55) means your tool starts cutting air – or worse, the chuck.
Simple fix that nobody does:
● Label your programs: "G54-PART-A-FRONT.NC"
● Clear unused offsets to zero
● Add safety lines: IF [#5221 EQ 0] GOTO 9999
● Always dry run with no part first
Typing X2500 instead of X2.500 sends your turret on a journey to another zip code. At rapid. Through whatever's in the way.
Decimal discipline:
● Always use decimals (X2. not X2)
● Enable "decimal required" in parameters
● Read numbers out loud before the cycle starts
● Use CAM software for complex profiles
We've seen every crash imaginable at TEAM MFG. The expensive ones always come from overconfidence. Stay paranoid, keep your machines running.
Bad parts cost more than time – they cost reputation. Here's how to catch problems before they become shipments.
Your first part tells you everything. Listen to it.
Measure these in order:
Overall length (easiest to fix)
Critical diameters (most likely wrong)
Surface finish (indicates tool wear)
Thread pitch (if applicable)
Find a problem here? Stop. Don't make 50 bad parts hoping they'll measure differently.
Don't wait until part 100 to find out your tool shifted at part 20.
● Every 10th part: Check one critical dimension
● Every 25th part: Full inspection
● Every tool change: Verify the first part after
● Random checks: Keeps operators honest
Document everything. "Looks good" isn't data.
You don't need a PhD to spot trends. Track three things:
Measurement | What It Tells You | Action Trigger |
Size trend | Tool wear rate | Adjust when .0003" from nominal |
Surface finish | Insert condition | Change at 32 Ra |
Cycle time | Machine health | Investigate 10% increase |
Plot these on paper by the machine. Trends jump out instantly.
Count parts, not time. Set tool life at 70% of maximum, and you'll never ship a bad part from worn tools.
Real numbers that work:
● Aluminum: 500-800 parts per insert
● Steel: 100-200 parts
● Stainless: 50-100 parts
At TEAM MFG, our quality system catches issues before they become problems. Whether you need 10 prototypes or 10,000 production parts, consistent quality control keeps customers coming back.
CNC lathe mastery isn't about memorizing G-codes – it's about knowing what actually works on the shop floor. From tool selection to quality control, these techniques turn beginners into machinists who deliver consistent, profitable results.
Key takeaways:
● Match tools to materials (polished edges for aluminum, coated carbide for steel)
● Touch off three times and average the results
● Use canned cycles – one G71 replaces 50+ lines of code
● Prevent crashes with decimal discipline and labeled programs
● Check critical dimensions every 10 parts, not just first and last
● Set tool life at 70% maximum to guarantee quality
Whether you're setting up your first CNC lathe or optimizing existing operations, sometimes the smartest move is partnering with experts. At TEAM MFG, we've refined these processes across 15,000+ projects. Need parts instead of headaches? Our CNC turning services deliver tight tolerances without the learning curve.
