In the fast-paced world of hardware development and manufacturing, the margin for error is shrinking. As supply chains evolve and material costs fluctuate in 2026, Design for Manufacturability (DFM) is no longer just a "nice-to-have"—it is a critical business strategy. Optimizing your CAD models before they hit the shop floor is the single most effective way to control your bottom line. This 2026 CNC DFM guide empowers engineers to optimize part designs by aligning geometry, tolerances, and tooling with manufacturing realities, significantly reducing machining costs and lead times without sacrificing quality.
A poorly designed part doesn’t just cost more to machine; it causes a cascade of hidden expenses. These include extended lead times due to custom tooling, high scrap rates from part deformation, and costly secondary operations. In CNC machining, up to 70% of manufacturing costs are determined during the design phase.
This comprehensive guide will walk you through the exact principles of CNC DFM. From optimizing part geometry and selecting standard tooling to mastering tolerances and surface finishes, you will learn how to design parts that are faster, cheaper, and higher quality to produce.
Design for Manufacturability (DFM) is the engineering practice of designing parts in a way that makes them easy, cost-effective, and reliable to manufacture. In CNC machining, this means designing with the physical limitations of cutting tools, machine axes, and material properties in mind.
DFM sits at the intersection of the manufacturing triangle:
Cost: Simplified geometries require less machine time and fewer setups.
Quality: Designs that avoid tool deflection and vibration yield better dimensional accuracy.
Lead Time: Using standard tools and minimizing setups drastically reduces production time.
The most frequent DFM errors include over-tolerancing non-critical features, designing sharp internal corners, creating deep and narrow pockets, and ignoring the necessary space for workholding.

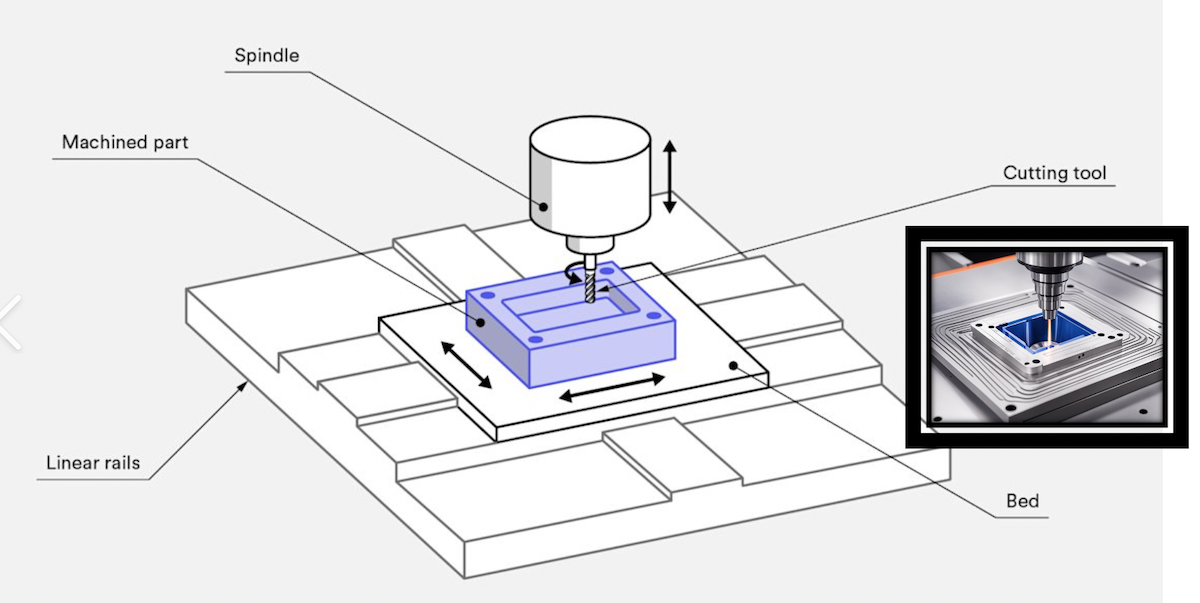

CNC machining offers unparalleled precision and excellent material properties. However, it is a subtractive process, meaning you pay for the material you cut away. If your part is a simple bracket, CNC might be overkill.
Sheet Metal: Best for thin-walled, hollow enclosures and brackets.
Die Casting/Investment Casting: Ideal for high-volume production of complex, near-net-shape metal parts.
3D Printing (Additive): Perfect for highly complex internal geometries (like conformal cooling channels) or low-volume prototypes where lead time is the primary constraint.
Modern manufacturing often blends processes. For example, using Metal 3D Printing to create a near-net shape, followed by CNC machining to achieve tight tolerances on critical mating surfaces. This hybrid approach minimizes material waste and machining time.
CNC end mills are cylindrical, meaning they cannot cut perfectly sharp internal corners. Attempting to do so requires expensive EDM (Electrical Discharge Machining) or broaching. Rule of thumb: Always add an internal corner radius that is at least 1/3 the depth of the pocket, and slightly larger than standard end mill radii (e.g., use a 3.2mm radius instead of 3.0mm to allow for tool clearance).
Deep, narrow pockets require long-reach end mills. These tools are prone to deflection, vibration (chatter), and breakage, which slows down feed rates and ruins surface finishes. Keep pocket depth-to-width ratios below 4:1 whenever possible.
Tall, thin walls are highly susceptible to vibration and bending under cutting forces. Keep the height-to-thickness ratio of walls below 10:1 for metals and 5:1 for plastics to prevent deformation.
Every feature adds machine time. Remove cosmetic fillets on external edges, unnecessary engraving, or redundant alignment pins if the part functions perfectly without them.
Designing holes to standard fractional, number, or letter drill sizes ensures the machinist doesn't have to use custom reamers or bore the hole with an end mill, which takes significantly longer.
Stick to standard UNC, UNF, or Metric thread sizes. Avoid obscure thread pitches. Also, ensure the threaded hole is not deeper than necessary (usually 1.5x to 2x the nominal diameter is sufficient).
Design pockets and slots to match standard end mill diameters (e.g., 6mm, 8mm, 10mm, 1/4", 3/8"). If you design a 9.5mm slot, the machinist may have to make multiple passes with an 8mm tool, doubling the machining time for that feature.
Custom form tools require design, manufacturing, and lead time. If a feature requires a custom tool, ask yourself if the design can be slightly altered to accommodate a standard off-the-shelf cutter.
Aluminum is highly machinable but can be flexible. The recommended minimum wall thickness for aluminum is 0.8mm to 1.0mm (0.03" - 0.04") for short walls, and up to 2.0mm for taller walls.
Steel is much stiffer but harder to cut. Minimum wall thickness should be 1.5mm to 2.0mm (0.06" - 0.08") to prevent tool chatter and work hardening.
Plastics like Delrin, PEEK, and Nylon are prone to heat deformation and melting. Maintain a minimum wall thickness of 2.0mm to 3.0mm (0.08" - 0.12") to ensure structural integrity during the cutting process.
Thicker walls dissipate heat better and resist cutting forces. If a thin wall is absolutely necessary, design it to be as short as possible and consider adding ribs or gussets for support.
The industry standard tolerance for CNC machining is typically ±0.005" (±0.125mm). For most non-mating features, this standard tolerance is more than adequate and is applied automatically by the machine shop.
Tolerances tighter than ±0.001" (±0.025mm) require slower machining speeds, specialized tooling, temperature-controlled environments, and extensive CMM (Coordinate Measuring Machine) inspection. Cost increases exponentially as tolerances tighten. Only apply tight tolerances to critical mating surfaces, bearing bores, or alignment features.
Geometric Dimensioning and Tolerancing (GD&T) allows you to control the function of a part rather than just its size. Using features like True Position or Profile of a Surface can actually save money by providing a larger, more functional tolerance zone than standard plus/minus tolerancing.
Review your assembly. Ask: "What happens if this dimension is off by 0.1mm?" If the answer is "nothing," remove the tight tolerance callout from your drawing.
Every time a part is unclamped, flipped, and re-zeroed, it costs time and introduces potential alignment errors. A part requiring 5 setups will cost significantly more than a part requiring only 1 or 2.
CNC machines need to hold the part securely. Design flat, parallel surfaces for the vise to grip. If the part is entirely organic or curved, consider adding temporary "workholding tabs" or a sacrificial base that can be machined off later.
Ensure that all features can be accessed from the same direction (usually the top). If a part requires features on all six sides, consider redesigning it into two separate parts that are assembled later.
Group features on the same plane. If you have three pockets of varying depths on the same face, the machine can process them in one setup. If they are on different angled faces, it requires a multi-axis machine or multiple fixtures.
Standard drill bits perform best when the depth is no more than 3x to 4x the diameter. For example, a 5mm hole should ideally be no deeper than 20mm. Deeper holes require peck drilling, which drastically increases cycle time.
Always design through holes instead of blind holes whenever possible. Through holes are easier to drill, allow for better chip evacuation, and don't require the flat-bottoming operation that blind holes do.
You do not need a 2-inch deep threaded hole for a 1/4-20 screw. Maximum thread engagement for metals is usually 1.5x the nominal diameter. For plastics, increase this to 2x the diameter due to lower shear strength.
Avoid placing holes too close to the edge of a part (which can cause breakout) or intersecting two holes at non-standard angles, which makes drilling incredibly difficult.
Surface finish is measured in Ra (Roughness average).
Ra 3.2 μm (125 μin): Standard as-machined finish. Visible tool marks.
Ra 1.6 μm (63 μin): Smooth finish, requires slower feed rates or secondary passes.
Ra 0.8 μm (32 μin) or lower: Very smooth, requires grinding, polishing, or specialized tooling.
Only specify fine finishes for sealing surfaces (like O-ring grooves), bearing surfaces, or highly visible cosmetic exterior faces. Internal pockets and non-mating surfaces should be left at the standard Ra 3.2 μm.
Requesting a mirror polish or anodizing on a complex part with deep pockets can double your finishing costs. Be explicit on your drawing about which specific surfaces require cosmetic treatment.
Before you upload your files to Team MFG, run through this quick mental check:
Check your internal radii, hole sizes, and thread pitches against standard catalogs.
Remove any tolerance tighter than ±0.005" unless it is strictly required for the part to function in the assembly.
Look at your 3D model. Can you access all critical features from just the top and bottom?

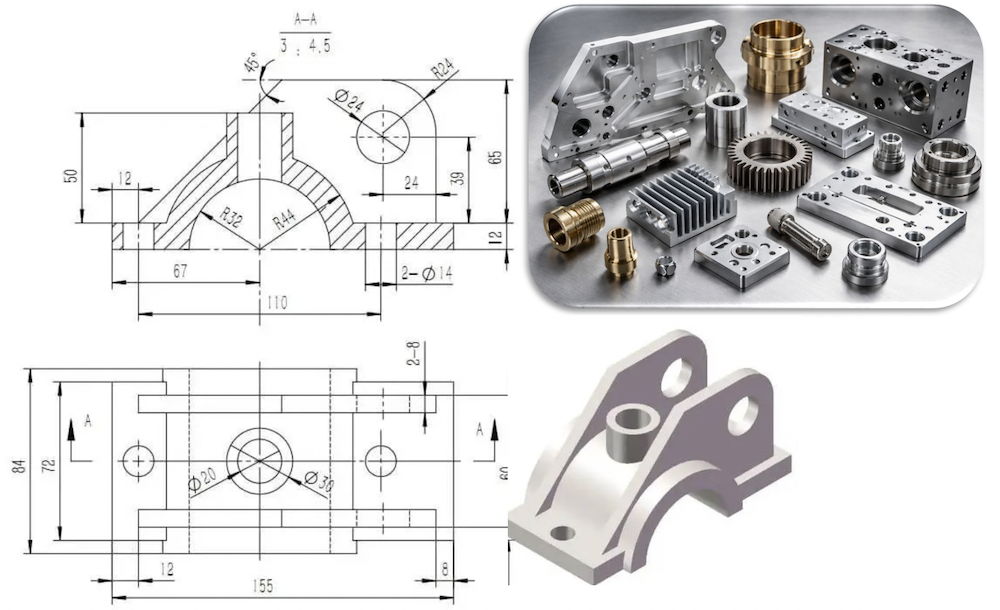

Ensure your 2D drawing matches the 3D CAD model. Highlight critical dimensions, specify material grades, and note any required surface treatments.
Before: An engineer designed an internal pocket with a 3.0mm radius. The machinist had to use a 2.5mm end mill to leave a clearance, resulting in slow cutting and tool breakage. After: The radius was changed to 3.2mm. A standard 6mm end mill could be used, cutting the pocket machining time by 40%.
Before: A 10mm wide pocket was designed to be 60mm deep (6:1 ratio). After: The design was split into two mating halves, each with a 30mm deep pocket. Assembly took 2 minutes, but machining costs dropped by 60%.
In 2026, AI algorithms can instantly analyze a CAD model, highlight non-machinable features, and automatically suggest geometry tweaks to reduce costs before the file even leaves the engineer's computer.
Major CAD software (SolidWorks, Fusion 360, Creo) now feature built-in DFM plug-ins that flag deep pockets, thin walls, and tight tolerances in real-time as you design.
Cloud manufacturing platforms now provide instant, automated quoting that breaks down costs by feature. This allows engineers to see the financial impact of a design change in seconds.
Modern DFM isn't just about the first prototype; it’s about designing a part that can transition smoothly from 3-axis prototyping to 5-axis production, or even transition to casting once volumes exceed 10,000 units.
Keep this checklist at your desk:
Geometry Checklist:
Internal radii are larger than standard tool sizes.
Pocket depth-to-width ratio is less than 4:1.
Wall thickness meets material minimums.
Unnecessary cosmetic features removed.
Tolerance Checklist:
Standard ±0.005" (0.125mm) applied to non-critical features.
GD&T used for functional mating surfaces.
No over-specified surface finishes (Ra 3.2 μm default).
Tool Accessibility Checklist:
All features accessible from minimal setups (ideally 1 or 2).
Standard drill and thread sizes utilized.
Hole depth-to-diameter ratio is under 4:1.
Through-holes used instead of blind holes where possible.
Cost Reduction Checklist:
Part designed for standard workholding (vise/chuck).
Material chosen appropriately (e.g., 6061 Al instead of 7075 if strength allows).
2D drawing perfectly matches 3D CAD model.
DFM (Design for Manufacturability) is the process of designing CNC parts to be as easy, fast, and cost-effective to machine as possible, without compromising the part's function.
It depends on the material. For aluminum, the minimum is generally 0.8mm - 1.0mm. For steel, it is 1.5mm - 2.0mm, and for plastics, 2.0mm - 3.0mm.
CNC tools are round and cannot cut sharp internal corners. If you design a sharp corner, it requires secondary operations like EDM. Adding a proper radius allows the part to be machined in a single setup, drastically reducing costs.
Standard CNC tolerance is ±0.005" (±0.125mm). You should only specify tighter tolerances (like ±0.001" or ±0.0005") for critical mating surfaces, as tighter tolerances increase costs exponentially.
Deep and narrow pockets, sharp internal corners, extremely thin walls, tight tolerances on non-critical features, and complex geometries that require multiple machine setups.
Use standard tool sizes, relax unnecessary tolerances, design for fewer setups, avoid deep pockets, and choose easily machinable materials like 6061 Aluminum or Delrin.
Optimizing your part design for CNC machining is a balance between functional requirements and manufacturing realities. By designing with standard tooling in mind, keeping geometries simple, applying tolerances only where necessary, and minimizing setups, you can drastically reduce costs and lead times while maintaining high quality.
Spending an extra hour in the CAD environment applying DFM principles will save you days of lead time and hundreds (or thousands) of dollars in manufacturing costs. DFM is an investment that pays immediate dividends.
