The core of the CNC machining material guide is that optimal material selection requires balancing end-use performance with manufacturability (DFM), because the true cost of a part is driven by machining efficiency, not just raw material price.
In custom CNC machining, material selection is the foundational decision that dictates the success of your project. It is not merely about picking a material that "looks right" on a CAD model; it is about understanding how the raw stock will behave under the cutting forces of a spindle. The wrong choice can lead to catastrophic tool failure, out-of-tolerance parts, and skyrocketing production costs.
As a CNC manufacturing expert, I often see engineers focus solely on the end-use performance of a part, ignoring its manufacturability. The right material balances mechanical performance with machinability. A highly durable material like Titanium Grade 5 offers incredible performance but drastically increases cycle times and tool wear, impacting cost and lead time. Conversely, a highly machinable material like Brass C360 slashes cycle times but lacks the strength for structural applications.
This comprehensive guide goes beyond basic material datasheets. We will explore the hidden costs of CNC material selection, provide machinist-level insights into tool wear and cycle times, and introduce 2026 sustainability trends. Whether you are designing aerospace components or consumer electronics, this guide will help you optimize your Design for Manufacturability (DFM).
Before opening your material library in SolidWorks or Fusion360, evaluate these critical factors:
Mechanical Strength: Does the part need high yield strength (Titanium) or just adequate rigidity (Aluminum 6061)?
Weight Requirements: Crucial for aerospace and automotive; dictates the use of Aluminum, Magnesium, or engineered plastics.
Corrosion Resistance: Will the part face saltwater, chemicals, or sterilization processes? (Points to 316 SS, PEEK, or PTFE).
Heat Resistance: Operating temperatures dictate whether you need standard plastics (ABS) or high-performance polymers (PEEK) / superalloys.
Electrical Conductivity: Required for busbars or RF shielding (Copper, Brass, Aluminum).
Surface Finish Requirements: Some materials, like 6061 Aluminum, anodize beautifully, while others, like 303 Stainless, pit during anodizing.
Tolerance Requirements: Plastics expand and contract with temperature and moisture; metals hold tighter, more stable tolerances.
Production Volume: High volumes justify harder-to-machine materials if the per-part raw cost is low, while prototypes favor free-machining materials.
Quick Decision-Making Guide:
Is it a structural/load-bearing part?
Yes → Go to Metals (Al, Steel, Ti).
No → Go to Step 2.
Does it require high temperature (>150°C) or chemical resistance?
Yes → PEEK, PTFE, or Stainless Steel.
No → Go to Step 3.
Is weight the primary constraint?
Yes → Magnesium, Al 7075, Delrin, or UHMW-PE.
No → Choose the most cost-effective machinable option (Al 6061, Brass, ABS).
Feature | CNC Machined Metals | CNC Machined Plastics |
|---|---|---|
Cost (Raw) | Moderate to Very High | Low to Very High (PEEK) |
Machinability | Varies widely (Brass = Excellent, Ti = Poor) | Generally excellent, but prone to melting/burring |
Strength | High to Extremely High | Low to Moderate |
Weight | Heavy (except Al, Mg, Ti) | Very Light |
Temp Resistance | High (Steel, Ti) | Low to Moderate (except PEEK) |
Surface Finish | Excellent (can be anodized, plated, polished) | Good (can be polished, but limited coatings) |
Typical Applications | Aerospace, automotive, structural, tooling | Gears, insulators, medical, lightweight housings |
Strongest Materials: Titanium Grade 5, 17-4PH Stainless Steel, 7075 Aluminum.
Lightest Materials: Magnesium (AZ31), UHMW-PE, PEEK.
Most Cost-Effective Materials: Aluminum 6061, ABS, Delrin (POM).
Easiest Materials to Machine: Brass C360, Aluminum 6061, Delrin.
Best for Tight Tolerances: Brass C360, Aluminum 6061, Delrin (POM).
Advantages: Excellent strength-to-weight ratio, superb machinability, highly corrosion-resistant, and takes surface finishes (anodizing) beautifully.
Limitations: Lower strength compared to steel; 7075 is prone to stress corrosion cracking.
Best Applications: Aerospace fittings, automotive parts, consumer electronics enclosures.
Machinability Score: 9/10 (6061), 8/10 (7075).
Advantages: Outstanding corrosion resistance, high strength, and excellent hygiene properties. 17-4PH can be precipitation hardened.
Limitations: 304 is "gummy" and work-hardens quickly. 316 is tough on cutting tools.
Best Applications: Medical devices, marine hardware, food processing equipment.
Machinability Score: 8/10 (303), 5/10 (304/316), 6/10 (17-4PH). Pro-tip: Always specify 303 instead of 304 for machined parts unless welding or extreme corrosion resistance is required.
Advantages: High strength, excellent wear resistance, and very cost-effective raw material. 4140 offers great toughness after heat treatment.
Limitations: Prone to rust; requires secondary operations like black oxide or zinc plating.
Best Applications: Jigs, fixtures, heavy-duty gears, and structural supports.
Advantages: Biocompatible, extreme strength-to-weight ratio, and highly corrosion-resistant.
Limitations: Poor thermal conductivity means heat stays in the cutting tool, causing rapid tool wear. Requires high-pressure coolant.
Aerospace and Medical Uses: Jet engine components, bone screws, and surgical implants.
Advantages: The undisputed king of machinability. Produces small, broken chips, allows for extreme spindle speeds, and yields a beautiful golden finish.
Limitations: Low strength, not suitable for structural loads, and can tarnish.
Precision Components and Connectors: Electrical terminals, plumbing fittings, and high-volume precision pins.
Advantages: Unmatched electrical and thermal conductivity.
Limitations: Extremely gummy; requires specialized highly polished, high-rake-angle cutting tools to prevent material welding to the tool.
Electrical and Thermal Applications: Busbars, heat sinks, and EDM electrodes.
Advantages: The lightest structural metal (30% lighter than aluminum) with excellent damping characteristics. Machines incredibly fast.
Limitations: Highly flammable in chip form; requires strict shop-floor safety protocols. Poor corrosion resistance.
Lightweight Engineering Applications: Drone frames, racing components, and camera housings.
Advantages: Cheap, good impact resistance, and easily glued or painted.
Limitations: Low melting point; prone to melting and gumming up endmills if tools are dull or feeds are too slow.
Ideal Applications: Prototypes, consumer product housings, and jigs.
Advantages: The "machinist’s plastic." High stiffness, low friction, excellent dimensional stability, and machines to incredibly tight tolerances with a great surface finish.
Limitations: Difficult to glue; sensitive to strong acids.
Precision Mechanical Components: Gears, bushings, insulators, and conveyor parts.
Advantages: Excellent wear resistance, high tensile strength, and good fatigue resistance.
Limitations: Hygroscopic (absorbs moisture). CNC Insight: Parts will change dimensions as they absorb ambient humidity post-machining. Machine it dry and account for swelling.
Wear-Resistant Parts: Bearings, wear pads, and heavy-duty gears.
Advantages: High impact strength and naturally transparent.
Limitations: Prone to chipping and melting. Requires specialized single-flute "O-flute" endmills designed specifically for plastics.
Transparent Components: Sight glasses, protective shields, and automotive lenses.
Advantages: Superior optical clarity (better than PC) and excellent UV resistance.
Limitations: Brittle and highly susceptible to cracking and melting during machining. Requires light passes and specialized tooling.
Optical Applications: Light pipes, display lenses, and decorative transparent parts.
Advantages: The pinnacle of engineering plastics. Withstands high temps (up to 250°C), highly chemical resistant, and radiolucent.
Limitations: Very expensive raw material and highly abrasive, causing significant tool wear.
High-Performance Engineering Applications: Semiconductor components, aerospace interiors, and spinal implants.
Advantages: Incredible impact resistance, extremely low coefficient of friction, and highly wear-resistant.
Limitations: Very soft and "springy." Holding tight tolerances (< +/- 0.005") is nearly impossible due to material deflection under clamping and cutting forces.
Low-Friction Applications: Conveyor liners, cutting boards, and chute linings.
Advantages: The lowest coefficient of friction of any solid; virtually impervious to all chemicals.
Limitations: Extremely soft and deforms easily. Like UHMW, it is very difficult to hold tight tolerances.
Chemical Resistance Applications: Valve seats, chemical lab equipment, and semiconductor fluid handling.
Beyond basic rankings, understanding estimated machining speeds and tool life is critical for accurate quoting and DFM.
Brass C360 (The gold standard for speed)
Aluminum 6061-T6 (The industry workhorse)
Delrin / POM (Best plastic for tight tolerances)
Aluminum 7075-T6 (Slightly harder than 6061, but chips break well)
Magnesium AZ31 (Machines like butter, but requires safety protocols)
Stainless Steel 303 (Free-machining stainless)
ABS (Easy to cut, but requires sharp tools to avoid melting)
Carbon Steel 1018 (Easy to machine, but slower than Al/Brass)
Polycarbonate (Easy if using correct O-flute tooling)
Nylon PA6 (Machines cleanly but requires strict moisture control)
Titanium (Grade 5): Low thermal conductivity transfers heat directly to the cutting edge.
Stainless Steel 316 & 17-4PH: High work-hardening rates and toughness destroy standard carbide.
PEEK & Glass-Filled Plastics: The glass/carbon fibers act like sandpaper on cutting edges.
Inconel / Hastelloy: Extreme heat resistance makes them notoriously difficult to cut.
Acrylic & PC: Require solid carbide, single-flute, high-polish O-flute endmills to evacuate chips and prevent melting.
Carbon Fiber/G10: Require diamond-coated (CVD) tooling to prevent rapid abrasive wear.
Copper: Requires high-positive rake angle tools with mirror-polished flutes to prevent built-up edge (BUE).
Material | Estimated Surface Speed (SFM) | Tool Life Multiplier (vs. 6061 Al) | Cycle Time Impact |
|---|---|---|---|
Brass C360 | 1,000 - 1,500 | 1.5x (Longer) | -20% (Faster) |
Aluminum 6061 | 800 - 1,200 | 1.0x (Baseline) | Baseline |
Delrin (POM) | 600 - 900 | 1.2x | -10% (Faster) |
Stainless 304 | 200 - 350 | 0.4x (Shorter) | +150% (Slower) |
Titanium Gr 5 | 150 - 250 | 0.2x (Very Short) | +300% (Much Slower) |
PEEK | 300 - 500 | 0.5x | +80% (Slower) |
New Viewpoint: Most articles discuss raw material price only, but actual CNC cost depends heavily on machining efficiency, tool wear, and secondary operations.
ABS / UHMW-PE
Carbon Steel 1018 / Aluminum 6061
Delrin / Nylon / PC
Stainless Steel 304 / 316
Aluminum 7075 / PEEK
Titanium Grade 5 / Copper
When factoring in cycle time, tool wear, and setup, the ranking shifts dramatically:
Aluminum 6061 / Brass (Lowest total cost due to blazing fast cycle times).
Delrin / ABS (Low tool wear, fast machining).
Stainless 303 (Higher raw cost, but machines predictably).
Stainless 316 / 17-4PH (High tool wear and slow feeds increase machine hourly costs).
Titanium / PEEK (Exorbitant raw material cost + massive tooling costs + slow cycle times).
Tool Wear: Machining one Titanium part might require 150inworn−outendmills,whereasmachiningtenAluminumpartsmightuseasingle 30 endmill.
Scrap Rates: Soft plastics (PTFE) and gummy metals (Copper) have higher scrap rates due to deformation and cosmetic defects.
Secondary Operations: Carbon steel requires plating to prevent rust. Aluminum 6061 requires anodizing for surface hardness. These add lead time and cost.
Material Waste: A part machined from a solid block of PEEK (which costs $400/kg) generates massive expensive chips. Designing the part closer to net-shape (e.g., using near-net extrusions or forgings) saves thousands.
Aerospace Components: Al 7075, Ti Grade 5, PEEK. (Focus on strength-to-weight and fatigue resistance).
Automotive Parts: Al 6061, 4140 Steel, Nylon. (Focus on cost-efficiency at volume and wear resistance).
Medical Devices: 316 SS, Ti Grade 2/5, PEEK, Delrin. (Focus on biocompatibility and sterilization resistance).
Electronics and Electrical: Al 6061 (enclosures), Copper C101 (conductors), PTFE (insulators).
Robotics and Automation: Al 7075, Delrin, 4140 Steel. (Focus on rigidity, low friction, and tight tolerances).
Consumer Products: ABS, PC, Al 6061. (Focus on aesthetics, surface finish, and low cost).
Best for Lightweight Parts: Magnesium AZ31, Al 7075, UHMW-PE.
Best for High Strength: Ti Grade 5, 17-4PH Stainless, 4140 Alloy Steel.
Best for Corrosion Resistance: PTFE, 316 Stainless Steel, Titanium.
Best for High Temperature: PEEK, Inconel, 316 Stainless Steel.
Best for Electrical Conductivity: Copper C101/C110, Brass C360, Al 6061.
Best for Wear Resistance: UHMW-PE, Nylon, 4140 Steel (hardened).
Best for Food-Grade/Medical: 316 SS, Delrin (FDA compliant grades), PEEK.
New Viewpoint: Engineers often pay 30–50% more because of material over-engineering. Specifying the "best" material when the "adequate" material would suffice is the #1 budget killer.
Using 7075-T6 Aluminum when 6061-T6 provides more than enough yield strength. 7075 is more expensive to buy, slightly harder to machine, and much more difficult to anodize beautifully.
Specifying Titanium or 17-4PH Stainless for a simple bracket that will sit in a dry, indoor environment. Carbon steel with a cheap zinc plating will perform identically for 20% of the cost.
Choosing 304 Stainless instead of 303 Stainless. They have nearly identical mechanical properties, but 304 work-hardens, destroys tools, and increases cycle time by up to 40%.
Ignoring thermal expansion or moisture absorption. Designing a high-tolerance plastic gear out of Nylon without accounting for humidity-induced swelling will result in a jammed assembly.
Specifying an obscure alloy or a highly specific plastic rod diameter that isn't stocked locally. This forces the machine shop to buy full mill runs or wait weeks for shipping, destroying lead times.
2026 Trend Section: As corporate ESG (Environmental, Social, and Governance) mandates tighten, sustainable CNC machining is no longer optional.
Aluminum and Steel are infinitely recyclable. In 2026, we are seeing a massive shift toward specifying certified recycled aluminum (e.g., from RealAlloy or Hydro CIRCAL), which reduces the carbon footprint of the raw material by up to 80% without sacrificing CNC machinability.
While traditional plastics like ABS and Delrin are petroleum-based, bio-based and recyclable engineering plastics are entering the CNC space. Furthermore, optimizing DFM to reduce plastic scrap during the subtractive machining process is a major focus.
Lowest Footprint: Recycled Aluminum, Brass, Wood-based composites.
Highest Footprint: Titanium (energy-intensive extraction), Virgin PEEK, Plated Steels (chemical waste from plating).
Choosing materials that require fewer secondary chemical treatments (like opting for 303 Stainless which doesn't need passivation as urgently as carbon steel, or using naturally corrosion-resistant Al 6061 without anodizing) directly reduces the chemical waste and water usage associated with your supply chain.
Use this matrix to quickly align your primary design requirement with the optimal CNC material.
Requirement | Recommended Material | Why? |
|---|---|---|
Lowest Total Cost | Aluminum 6061 | Cheap raw stock, ultra-fast machining, great all-rounder. |
Highest Strength | Titanium Grade 5 | Unmatched strength-to-weight, extreme durability. |
Best Corrosion Resistance | Stainless Steel 316 | Withstands harsh chemicals and saltwater environments. |
Best Machinability | Brass C360 | Allows maximum spindle speeds, excellent chip breaking. |
Best Wear Resistance | PEEK / UHMW-PE | PEEK for high temp wear; UHMW for low-friction impact wear. |
Best Lightweight Metal | Magnesium AZ31 | 30% lighter than aluminum, excellent damping. |
Best Precision Plastic | Delrin (POM) | Extremely stable, holds tight tolerances, low friction. |
Choosing the right material is only half the battle; partnering with a machine shop that understands how to cut it is the other. At TEAM MFG, we bridge the gap between engineering design and manufacturing reality.
We maintain a vast, verified supply chain of aerospace-grade metals and engineering plastics, ensuring you get the exact alloy and temper you need without supply chain delays.

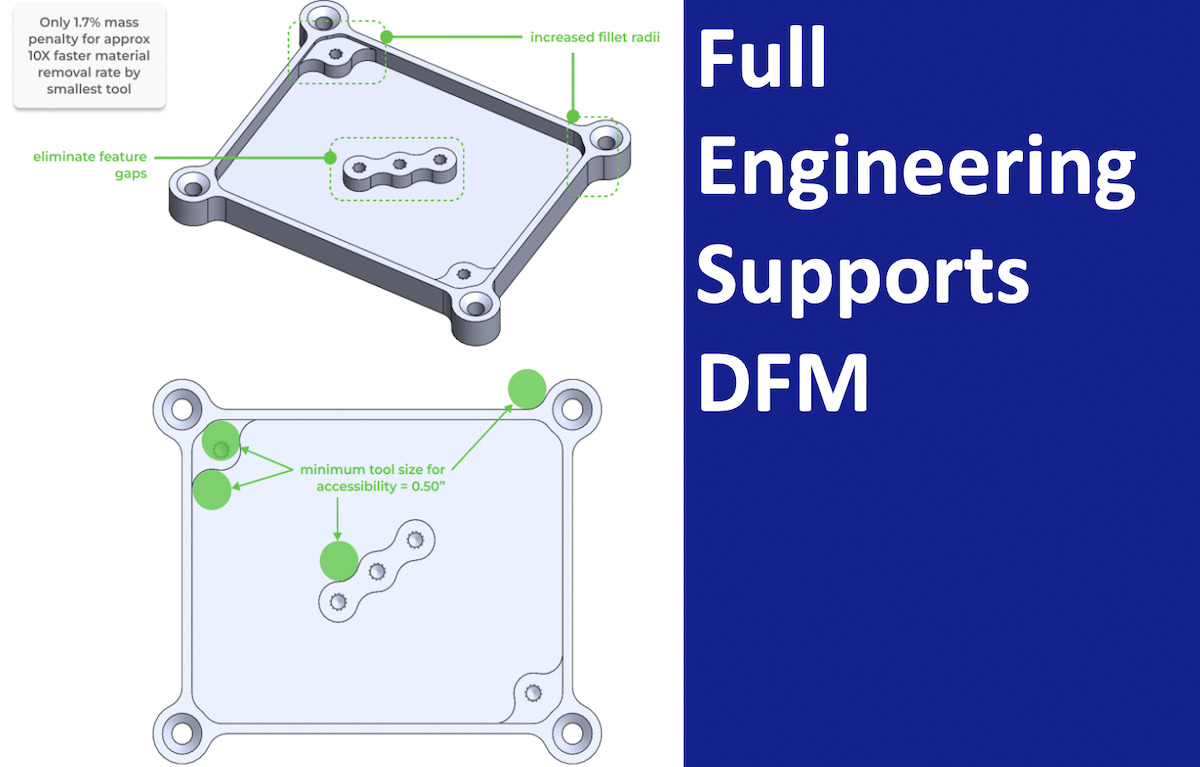

Our in-house CNC engineers will review your CAD models and suggest material alternatives or minor design tweaks that can reduce your per-part cost by 20% to 50% without compromising functionality.
Whether you need 5 prototype parts in PEEK to test a medical device, or 50,000 production pins in Brass C360 on our Swiss lathes, TEAM MFG scales with your project.
With optimized toolpaths, high-speed machining centers, and a streamlined logistics network, we deliver high-quality parts on time, anywhere in the world.
Ready to optimize your next project? Upload your CAD files to TEAM MFG today for a free, no-obligation quote and a comprehensive DFM analysis from our engineering team.
Brass C360 is universally considered the easiest CNC material to machine. It allows for extremely high cutting speeds, produces small manageable chips, and results in very low tool wear. Aluminum 6061 and Delrin (POM) are close runners-up.
Among standard CNC materials, Titanium Grade 5 (Ti-6Al-4V) offers the highest overall strength-to-weight ratio. For sheer yield and tensile strength in steel, 17-4PH Stainless Steel (when heat-treated to H900) or hardened 4140 Alloy Steel are the strongest options.
For metals, Brass C360 and Aluminum 6061 hold the tightest tolerances due to their stability and predictable cutting behavior. For plastics, Delrin (POM/Acetal) is the undisputed king of precision, as it does not melt easily and has excellent dimensional stability.
"Better" depends on the application. Aluminum (6061/7075) is much faster and cheaper to machine, lighter, and highly corrosion-resistant. Stainless steel (303/304/316) is much stronger, harder, and more resistant to extreme heat and harsh chemicals, but it is significantly more expensive and slower to machine.
The most common CNC plastics are ABS (for cheap prototypes), Delrin/POM (for precision gears and bushings), Polycarbonate (for transparent parts), Nylon (for wear resistance), and PEEK (for high-temp/medical applications).
Avoid over-specifying. Choose a free-machining material (like 303 SS instead of 304, or 6061 Al instead of 7075). Design your part to require minimal material removal, and avoid materials that require expensive secondary surface treatments unless absolutely necessary.
Aluminum 7075-T6 (for structural airframe parts), Titanium Grade 5 (for engine and high-stress components), and PEEK (for lightweight, high-temp interior and electrical components) are the aerospace industry standards.
For prototypes, prioritize speed and cost: use Aluminum 6061, ABS, or Delrin. For production, shift to the material that offers the best lifecycle performance and lowest total cost at scale, which might involve moving to a harder steel, a specialized plastic, or utilizing near-net-shape forgings to reduce CNC cycle times.
