Aluminum die casting is a high-pressure manufacturing process that injects molten aluminum alloys—such as A380, A383, and A360—into reusable steel dies to produce complex, lightweight, and dimensionally precise parts widely used in automotive, electronics, and industrial applications. It is a pressure die casting method to produce complex, high-precision metal parts at scale. Engineers and purchasing teams rely on this process to deliver components with tight tolerances, excellent surface finish, and consistent mechanical properties. Whether you are designing a new housing, selecting a supplier, or optimizing an existing part for production, understanding the full aluminum die casting workflow helps you make better decisions and avoid costly mistakes.
This guide covers the materials, process steps, common defects, applications, and supplier selection criteria that matter most to engineering and procurement teams.
The choice of alloy directly affects castability, mechanical performance, and cost. Most aluminum die casting alloys belong to the aluminum-silicon system, which offers excellent fluidity and low shrinkage during solidification.
A380 (ADC10) is the most widely used alloy in pressure die casting. It provides a balanced combination of strength, castability, and corrosion resistance. A380 suits a broad range of structural and functional components, from automotive brackets to electronic housings.
A383 (ADC12) offers slightly better fluidity than A380, making it ideal for thin-wall castings and parts with complex geometry. It is the dominant alloy in Asian supply chains and increasingly adopted in European and North American production.
A360 delivers superior corrosion resistance and pressure tightness. Engineers select A360 when parts must withstand harsh environments or hold internal pressure without leaking.
A413 contains a higher silicon content (around 11–13%), which further improves fluidity. This alloy is preferred for intricate castings with very thin sections where complete mold fill is critical.
When selecting an alloy, consider the part's mechanical requirements, wall thickness, surface treatment needs, and operating environment. Your die casting supplier should be able to recommend the best alloy based on your specific application.
Understanding each stage of the aluminum pressure die casting process helps engineers design better parts and buyers evaluate supplier capability. Below is the complete workflow from design to finished part.
Every successful aluminum die casting project starts with a thorough Design for Manufacturability (DFM) review. Key design parameters include draft angles, wall thickness uniformity, rib placement, fillet radii, parting line location, and gating system design.Refer to our pressure die casting design guidelines.
Draft angles of 1–3 degrees on vertical surfaces allow clean ejection without damaging the part or the die. Uniform wall thickness prevents localized shrinkage and reduces porosity risk. Ribs add stiffness without increasing overall wall thickness, which helps maintain dimensional stability.
The gating system—consisting of the sprue, runners, and gates—controls how molten aluminum fills the cavity. Poor gate design leads to air entrapment, cold shuts, and inconsistent fill patterns. An experienced tooling engineer will simulate the fill process using software like MAGMA or Flow-3D before cutting steel.
Once the die design is approved, the steel mold is manufactured, assembled, and validated.
Die steel selection starts with H13 tool steel (the one used commonly at TEAM MFG), the industry standard for aluminum HPDC due to its hot hardness and thermal fatigue resistance. Premium-grade H13 (e.g., Uddeholm 8407) extends die life for high-volume programs.
CNC machining and EDM shape the die blocks, cores, and cavities. 5-axis CNC milling handles complex 3D geometries, while EDM produces deep ribs, sharp corners, and fine details that are difficult to mill.
Heat treatment hardens H13 dies to 44–48 HRC through quenching and double tempering, balancing wear resistance with toughness to resist thermal cracking.
Surface treatment such as gas nitriding or PVD coatings (TiAlN, CrN) reduces soldering and slows thermal fatigue crack progression.
Die assembly involves mounting cores, slides, ejector pins, and cooling lines into the die halves. Proper alignment prevents flash and ensures consistent closure.
T1 tryout is the first production shot. Engineers evaluate fill pattern, dimensions, and ejection, then adjust gating or venting as needed. Additional trials (T2, T3) may follow before production approval.
A well-built die directly determines casting quality, cycle time, and tooling life. Buyers should verify the supplier's in-house tooling capability, steel sourcing, and heat treatment process.

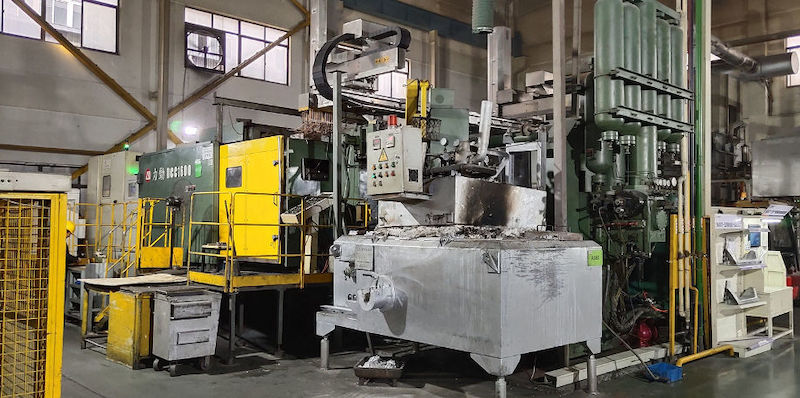

Aluminum alloy ingots or recycled scrap are melted in a central furnace or a holding furnace adjacent to the die casting machine. Typical melting temperatures range from 650°C to 720°C depending on the alloy composition.
Before injection, the molten metal undergoes degassing to remove dissolved hydrogen, which is the primary cause of porosity in finished castings. Rotary degassing with nitrogen or argon is the standard method. Flux treatment may also be applied to remove oxide inclusions.
Temperature control is critical. If the melt is too hot, it accelerates die erosion and increases gas absorption. If too cold, fluidity drops and the cavity may not fill completely.
In the high-pressure die casting (HPDC) process, molten aluminum is injected into the steel die cavity at high speed and pressure. Injection speeds typically range from 20 to 80 meters per second at the gate, with intensification pressures reaching 400 to 1,200 bar depending on part geometry and machine tonnage.
The injection phase is divided into slow shot and fast shot. The slow shot pushes the plunger forward to fill the shot sleeve and minimize air entrapment. The fast shot then drives the metal into the cavity at high velocity.
After cavity fill, intensification pressure is applied to compensate for shrinkage during solidification. Cooling channels within the die extract heat rapidly, allowing cycle times as short as 20–60 seconds for small to medium parts. Proper cooling design directly affects dimensional stability, cycle time, and the formation of shrinkage porosity.

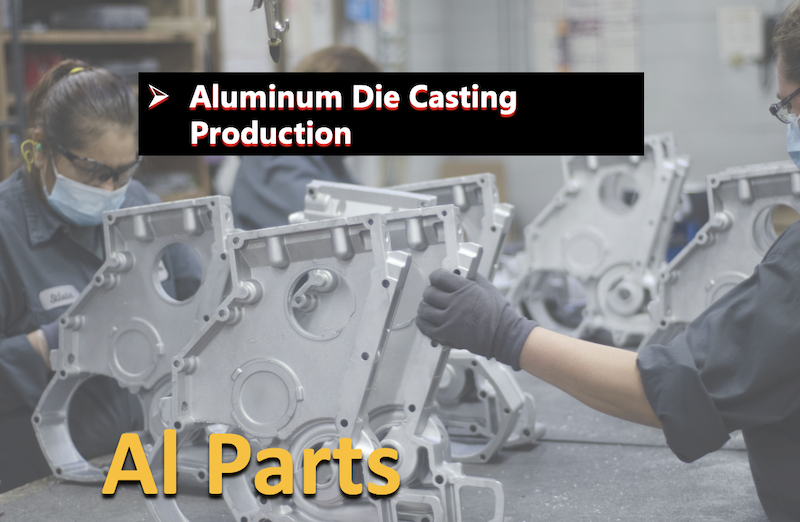

After ejection, castings typically carry excess material called flash or overflow. Trimming removes this material using a trim die or press. This is usually the first secondary operation.
Many aluminum die casting parts require CNC machining to achieve tight tolerances on critical features such as bore diameters, mounting surfaces, or threaded holes. Deburring removes sharp edges left from trimming or machining.
Surface finishing options include powder coating, anodizing, e-coating, chromate conversion coating, and painting. The choice depends on corrosion requirements, aesthetic needs, and whether the part will be visible in the final assembly. Anodizing, for example, provides both corrosion protection and a decorative finish but requires specific alloy compositions for best results.
Quality inspection ensures that every casting meets dimensional, mechanical, and visual requirements. Common inspection methods include:
Dimensional inspection using calipers, micrometers, and go/no-go gauges for critical features.
CMM (Coordinate Measuring Machine) measurement for complex geometries and GD&T verification.
Visual inspection for surface defects such as cold shuts, blisters, or flow marks.
X-ray inspection to detect internal porosity or shrinkage voids in safety-critical parts.
Leak testing (pressure decay or helium leak test) when parts must be pressure-tight.
Mechanical testing including tensile tests on separately cast test bars or machined specimens from the casting.
A reliable manufacturer will define inspection criteria during the PPAP or first article inspection phase and maintain statistical process control (SPC) throughout production.
Aluminum die casting delivers strong cost performance from low-volume runs through high-volume production. Steel dies used in HPDC can last 100,000 to 200,000 shots or more with proper maintenance, spreading tooling cost across the entire program life.
For low-volume projects (500–5,000 parts), pressure die casting still offers advantages over sand casting or CNC machining from solid stock. Near-net-shape casting reduces material waste and minimizes secondary machining, lowering total part cost even at modest quantities. Simplified tooling approaches—such as single-cavity dies or prototype dies—make low-volume die casting accessible without excessive upfront investment.
At medium to high volumes, the economics improve further. Fast cycle times—often under 60 seconds per shot—enable high output rates that reduce labor cost per unit. Multi-cavity dies can produce several parts per shot, multiplying throughput without adding machine time.
Compared to sand casting or investment casting, pressure die casting offers tighter tolerances and better surface finish out of the die. This means fewer post-processing steps and faster time to market regardless of order size. Whether you need 1,000 parts for a pilot program or 500,000 parts for annual production, aluminum die casting provides a scalable and economical path.
Aluminum die casting serves a wide range of industries where lightweight, strong, and dimensionally stable components are required. Common application areas include automotive, electronics, industrial equipment, telecommunications, and consumer products.
Engineers select aluminum cast components when they need a combination of low weight, good thermal conductivity, EMI shielding, and the ability to produce complex shapes in a single operation. The process is especially attractive when part consolidation—replacing multiple fabricated or machined parts with one casting—reduces assembly time and total system weight.
The automotive industry is the largest consumer of aluminum die castings. Key applications include:
Category | Specific Parts |
|---|---|
Engine Components | Valve covers, oil pans, timing chain covers, intake manifolds |
Transmission Housings | Clutch housings, gearbox cases |
EV Battery Enclosures | Battery module protective housings (large structural castings) |
Motor Housings | Electric motor end caps, stator housings |
Structural Parts | Cross-car beams, shock towers, subframe components |
The shift toward electric vehicles is driving increased demand for large, thin-wall aluminum castings. Gigacasting and mega-casting trends are pushing the boundaries of machine tonnage and die design capability.
Good design is the foundation of defect-free aluminum die casting. Following proven design guidelines reduces tooling iterations, shortens lead time, and improves first-pass yield. For a detailed reference, see our Aluminum Die Casting Design Guidelines.
Key principles include:
Maintaining uniform wall thickness.
Adding generous fillet radii at internal corners
Avoiding deep pockets that trap air.
Positioning parting lines to simplify ejection.
Ribs should be no thicker than 60% of the adjacent wall to prevent sink marks on the opposite surface.
Even with good design and process control, certain defects can appear. Understanding their root causes helps engineers and quality teams troubleshoot effectively. Here are the common defects in aluminum die casting parts:
Porosity is one of the most common pressure die casting defects in production. It appears as small voids inside the casting and is caused by trapped gas or shrinkage during solidification. Porosity weakens the part and can cause leaks in pressure-tight applications. Proper degassing, optimized gating, and vacuum-assisted casting reduce porosity risk.
Shrinkage occurs when the metal contracts during cooling and no additional molten metal is available to feed the shrinking region. It typically appears in thick sections or at thermal centers. Uniform wall thickness and proper intensification pressure help minimize shrinkage.
Cold shuts form when two flow fronts of molten metal meet but fail to fuse completely. They appear as visible lines or seams on the part surface. Cold shuts result from low melt temperature, slow injection speed, or poor gate placement.
Flash is excess metal that escapes through the parting line or ejector pin gaps. It indicates excessive injection pressure, worn die surfaces, or insufficient clamping force. Regular die maintenance and proper machine setup prevent flash.
Surface defects such as blisters, flow marks, and soldering (metal sticking to the die) affect appearance and may require additional finishing. Blisters are caused by trapped gas expanding during heat treatment or painting. Flow marks result from premature solidification during cavity fill.
Selecting the right supplier is as important as the part design itself. A capable manufacturer reduces risk, shortens development time, and delivers consistent quality over the life of the program. For a full overview of our capabilities, visit our Pressure Die Casting Services page.
Die design experience directly affects casting quality, cycle time, and tooling life. A manufacturer with in-house tooling capability can iterate die designs quickly, run flow simulations, and optimize gating before the first shot.
Ask potential suppliers about their die steel selection (H13 is standard for aluminum HPDC), expected die life, and whether they perform in-house heat treatment and surface coating such as nitriding or PVD. These factors determine how long the die maintains dimensional accuracy and surface quality.
Evaluate the supplier's machine tonnage range to ensure it matches your part size and projected volume. A 400-ton machine suits small brackets, while large structural castings may require 2,500-ton or larger machines.
Beyond machine capability, review the supplier's quality management system. Look for IATF 16949 certification (automotive), ISO 9001, and documented process control procedures. Ask about their scrap rate, Cpk data on critical dimensions, and how they handle non-conforming material.
Experienced manufacturers help customers move from initial prototypes to reliable mass production. This support may include rapid prototyping using sand casting or 3D-printed sand molds, followed by soft tooling for low-volume validation before committing to hard production dies.
A good supplier will also assist with DFM feedback, material selection, tolerance analysis, and post-processing recommendations during the development phase. This collaborative approach reduces design changes after tooling is cut and accelerates time to production.
Most manufacturers require a minimum annual volume of 1,000–5,000 parts to justify the tooling investment. However, some suppliers offer low-volume production using prototype dies or sand casting for initial validation before committing to hard steel tooling. The exact MOQ depends on part size, complexity, and the supplier's business model.
Standard commercial tolerances for aluminum die casting are ±0.1 mm per 25 mm of linear dimension for features up to 50 mm, with additional tolerance added for larger dimensions. Critical features that require tighter tolerances (±0.02–0.05 mm) are typically achieved through secondary CNC machining after casting.
Standard high-pressure die castings are generally not suitable for T6 heat treatment because trapped gas porosity causes surface blistering at solution treatment temperatures. However, vacuum-assisted die casting and squeeze casting produce parts with minimal porosity that can be heat treated. Alloys like A356 and A357 are commonly used for heat-treatable applications.
Hot chamber die casting uses a gooseneck mechanism submerged in molten metal and is typically used for zinc and magnesium alloys with lower melting points. Aluminum die casting always uses the cold chamber process, where molten aluminum is ladled into a shot sleeve and then injected by a plunger. This prevents the aluminum from reacting with and eroding the injection mechanism.
Die casting is more cost-effective at volumes above 5,000–10,000 parts per year because it produces near-net-shape parts with minimal material waste. CNC machining offers tighter tolerances and no tooling cost, making it better for prototypes or very low volumes. Many production parts combine both processes: die casting for the bulk shape, then CNC machining for critical featur
Aluminum die casting produces parts with higher strength, better thermal conductivity, and superior EMI shielding compared to plastic injection molding. Metal castings also withstand higher operating temperatures. However, plastic injection molding offers lower tooling cost, lighter weight, and better electrical insulation. The choice depends on structural, thermal, and environmental requirements.
Aluminum die casting remains one of the most versatile and cost-efficient methods for producing complex metal parts at scale. From alloy selection through process control to final inspection, each step offers opportunities to optimize quality and reduce cost.
For engineering teams and purchasing professionals, the key is to partner with a manufacturer that combines strong tooling expertise, proven process control, and transparent communication. If you are evaluating suppliers for your next aluminum die casting project, TEAM MFG offers full-service support from DFM review through mass production. Contact us to discuss your part requirements and get a detailed quotation.
