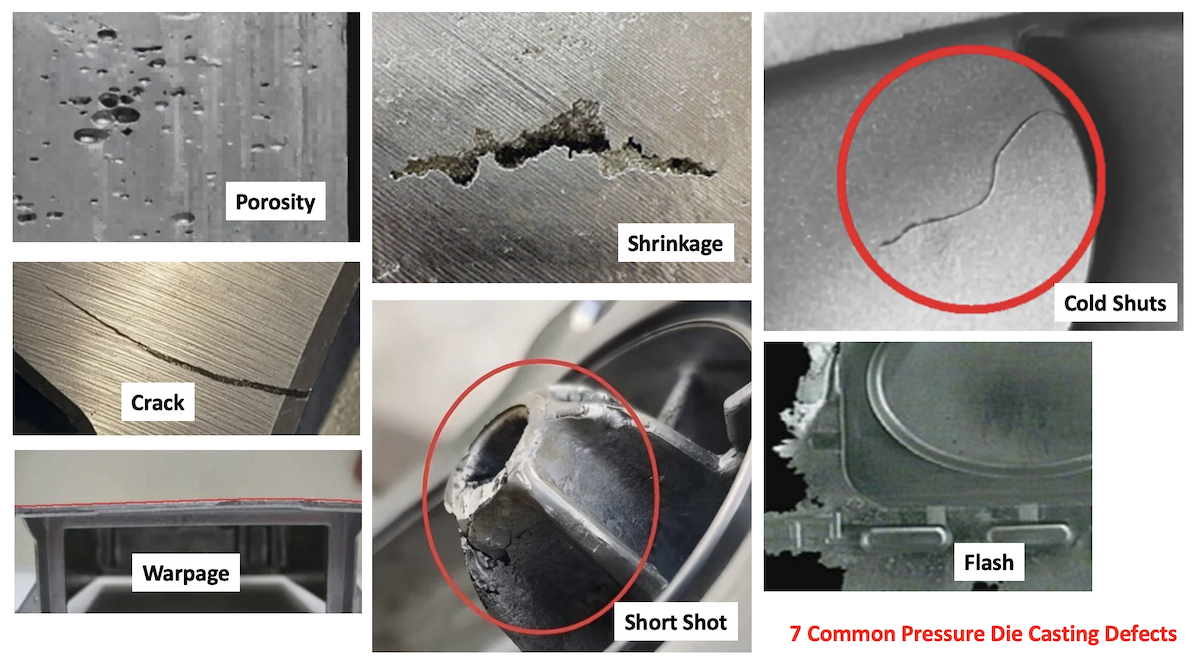

Common pressure die casting defects include porosity, shrinkage, cold shuts, flash, short shots, cracks, and warpage, part design, tooling condition, process parameters, and material quality are the factors that lead to these defects, and they can be prevented through proper DFM practices, optimized gating and venting systems, controlled injection parameters, and appropriate inspection methods such as X-ray, CT scanning, and leak testing.
Pressure die casting defects are the single biggest risk to part quality, delivery schedules, and total cost in high-volume metal component production. Whether you are sourcing aluminum housings for an EV powertrain or zinc connectors for industrial equipment, understanding how and why these defects form is the first step toward reliable supply. This guide breaks down each major defect type, explains root causes, and provides actionable prevention strategies that engineers and purchasing teams can apply immediately. If you are evaluating suppliers for custom metal parts, our Pressure Die Casting Services page covers capabilities, materials, and tolerances in detail.
A pressure die casting defect is any deviation from the intended geometry, surface condition, or internal integrity of a cast part that compromises its function or appearance. These defects originate from interactions between molten metal behavior, tooling condition, process parameters, and part geometry.
Common root causes include improper gate design, insufficient injection pressure, incorrect melt temperature, worn tooling surfaces, and inadequate venting. Each of these factors can act alone or combine with others to produce visible or hidden flaws.
The pressure die casting process involves injecting molten metal into a steel die under high pressure, typically between 150 and 1,200 bar depending on the alloy and part complexity. Filling speed, intensification pressure, and solidification sequence all directly influence whether a defect forms. Understanding these process variables is essential for both design engineers and quality teams.
Defects can be classified as surface defects, internal defects, or dimensional defects. Surface defects like flash or cold shuts are often caught during visual inspection. Internal defects such as porosity or shrinkage cavities require non-destructive testing to detect. Dimensional defects like warpage may only become apparent during assembly or functional testing.
Many pressure die casting defects are not caused on the production floor. They are designed into the part before the tool is ever manufactured. Proper design for manufacturability (DFM) decisions made during the engineering phase can eliminate entire categories of defects before they have a chance to occur.
A well-designed casting considers metal flow paths, solidification sequence, thermal gradients, and ejection mechanics simultaneously. Ignoring any one of these factors increases the probability of defects and drives up scrap rates. Refer to the pressure die casting design guidelines for more info.
Large variations in wall thickness are one of the most common design-related causes of pressure die casting defects. Thick sections cool slower than thin sections, creating localized hot spots where shrinkage porosity concentrates. The transition between thick and thin walls also disrupts laminar metal flow, increasing the risk of air entrapment.
Uniform wall thickness promotes directional solidification from the thinnest section toward the feed point. When thickness changes are unavoidable, gradual transitions with a ratio no greater than 1.5:1 help maintain consistent filling and reduce turbulence.
Thin walls below the minimum recommended for the chosen alloy can cause short shots or cold shuts because the metal solidifies before completely filling the cavity. For aluminum alloys, minimum wall thickness is typically 1.0–1.5 mm depending on part size and geometry.
Draft angles of 1° to 3° per side allow clean ejection without dragging or scoring the part surface. Insufficient draft increases ejection force, which can cause surface tears, dimensional distortion, or premature tooling wear.
Ribs and bosses add structural rigidity without increasing overall wall thickness. However, they must be designed with proper thickness ratios—typically 60–70% of the adjacent wall—to avoid creating localized hot spots that lead to shrinkage porosity.
Fillet radii at internal corners reduce stress concentration during solidification and improve metal flow into tight geometry. Sharp internal corners act as stress risers and can initiate hot tearing or cracking during ejection.
Porosity is the most frequently encountered internal defect in pressure die casting. It appears as small voids or cavities within the casting wall and can be caused by trapped gas, dissolved hydrogen, or shrinkage during solidification.
Gas porosity forms when air or lubricant vapor is trapped in the cavity during filling. It typically appears as round, smooth-walled voids distributed near the surface or along flow paths. Shrinkage porosity, by contrast, forms irregular cavities in thick sections where the metal contracts without adequate feed.
Prevention starts with proper venting and overflow design to evacuate air ahead of the metal front. Vacuum-assisted die casting reduces gas porosity significantly for critical applications. Controlling melt temperature and using degassing treatments for aluminum alloys minimizes dissolved hydrogen.
For shrinkage porosity, the solution is thermal management. Proper gate placement, cooling channel design, and intensification pressure ensure that thick sections receive adequate metal feed during solidification. Simulation software can predict shrinkage locations before tooling is manufactured.
Shrinkage defects occur when molten metal contracts during solidification and no additional liquid metal is available to compensate for the volume loss. The result is an internal cavity or a surface depression, typically in the last area to solidify.
In pressure die casting, shrinkage is most common in thick cross-sections, bosses, and areas far from the gate where the solidification front has already sealed off the feed path. Unlike gravity casting, pressure die casting relies on intensification pressure rather than risers to feed shrinkage.
Prevention requires controlling the solidification sequence through tooling design. Conformal cooling channels, localized cooling pins, and proper gate sizing help ensure directional solidification toward the feed point. Increasing intensification pressure and holding time also forces additional metal into shrinking regions.
Part design plays a critical role. Reducing section thickness, adding ribs instead of solid bosses, and maintaining uniform wall thickness all reduce the volume of metal that must be fed during solidification.
Cold shuts form when two streams of molten metal meet inside the cavity but fail to fuse completely. The result is a visible seam or lap line on the part surface, often with a rounded edge that indicates incomplete bonding.
This defect occurs when metal temperature drops below the fusion point before the cavity is fully filled, or when flow paths converge at low velocity. Thin walls, long flow distances, and low injection speed are the primary contributors.
Prevention focuses on maintaining adequate metal temperature and filling velocity throughout the shot. Increasing injection speed, raising melt temperature within the alloy's safe range, and redesigning the gate to reduce flow distance all help eliminate cold shuts.
Tooling temperature also matters. A cold die surface extracts heat too quickly from the metal front, increasing the risk of premature solidification. Proper die preheating and thermal balance between die halves are essential for consistent filling.
Flash is excess metal that escapes the parting line or ejector pin locations and solidifies as a thin fin on the casting surface. It is one of the most visible pressure die casting defects and often requires secondary trimming operations.
The primary cause is insufficient clamping force relative to the internal cavity pressure. When the injection pressure exceeds the lock force of the machine, the die halves separate slightly and metal penetrates the gap. Worn parting line surfaces, damaged die inserts, and thermal distortion also contribute.
Prevention starts with selecting a machine with adequate tonnage for the projected area of the part. A general rule is 2–4 tons of clamping force per square inch of projected area, depending on alloy and wall thickness. Regular maintenance of parting line surfaces and proper die alignment prevent flash caused by tooling wear.
Process optimization also helps. Reducing peak injection pressure where possible, using multi-stage injection profiles, and ensuring proper die temperature uniformity all reduce the tendency for flash formation.
A short shot occurs when molten metal fails to completely fill the die cavity, leaving an incomplete part with missing geometry. This defect is immediately visible and results in 100% scrap for the affected shot.
Common causes include insufficient shot volume, low injection pressure, blocked or undersized gates, low melt temperature, and inadequate venting that creates back-pressure against the metal front. Cold die surfaces can also cause premature solidification before the cavity is filled.
Prevention requires verifying shot sleeve fill volume and ensuring the plunger tip is in good condition. Injection parameters should be validated during process development using shot curve monitoring. Gate and runner sizing must be confirmed through flow simulation before tooling is finalized.
For parts with long, thin flow paths, increasing injection speed and using vacuum assist can ensure complete cavity filling. Die temperature should be monitored and controlled to prevent cold spots that block metal flow.
Cracks in pressure die castings can occur during solidification (hot tearing), during ejection, or during post-casting operations such as trimming or machining. They appear as linear discontinuities on the surface or internally and are critical defects for structural or pressure-containing parts.
Hot tearing happens when the casting is still partially solid and thermal contraction creates tensile stress that exceeds the material's strength at that temperature. It is most common in alloys with wide solidification ranges and in areas with constrained geometry.
Ejection cracks result from excessive ejection force, insufficient draft, or sharp corners that concentrate stress. They typically appear near ejector pins or along deep ribs.
Prevention of hot tearing requires proper gate design that allows free contraction, adequate fillet radii, and controlled cooling rates. For ejection-related cracks, increasing draft angles, polishing ejector pin surfaces, and optimizing ejection speed and sequence are effective countermeasures.
Warpage is a dimensional defect where the casting deviates from its intended flatness or shape after ejection. It is caused by uneven residual stresses that develop during non-uniform cooling and solidification.
Asymmetric wall thickness, uneven cooling between die halves, and premature ejection while the part is still above the recrystallization temperature are the primary causes. Thin, flat parts with large surface areas are most susceptible.
Prevention begins with balanced cooling channel design that ensures uniform temperature across both die halves. Ejection timing should allow sufficient solidification before the part is released. For critical flatness requirements, fixturing or straightening operations may be specified.
Part design also contributes. Symmetric geometry, uniform wall thickness, and strategic rib placement reduce the thermal gradients that drive warpage. Simulation tools can predict distortion patterns and guide design modifications before production begins.
Defect | Appearance | Root Causes | Prevention Methods |
|---|---|---|---|
Porosity | Small voids or cavities within the casting wall; gas porosity appears as round, smooth-walled voids near the surface; shrinkage porosity appears as irregular cavities in thick sections | Trapped gas (air/lubricant vapor), dissolved hydrogen, shrinkage during solidification without adequate feed | Proper venting and overflow design; vacuum-assisted die casting; degassing treatments; controlled melt temperature; proper gate placement; cooling channel design; adequate intensification pressure; simulation software for prediction |
Shrinkage | Internal cavity or surface depression in the last area to solidify; most common in thick cross-sections, bosses, and areas far from the gate | Metal contraction during solidification with no additional liquid metal available to compensate for volume loss | Conformal cooling channels; localized cooling pins; proper gate sizing; increased intensification pressure and holding time; reducing section thickness; adding ribs instead of solid bosses; maintaining uniform wall thickness |
Cold Shuts | Visible seam or lap line on the part surface with a rounded edge indicating incomplete bonding | Two metal streams meet but fail to fuse; metal temperature drops below fusion point; flow paths converge at low velocity; thin walls; long flow distances; low injection speed | Increase injection speed; raise melt temperature within safe range; redesign gate to reduce flow distance; proper die preheating; thermal balance between die halves |
Flash | Thin fin of excess metal at the parting line or ejector pin locations | Insufficient clamping force relative to cavity pressure; worn parting line surfaces; damaged die inserts; thermal distortion | Select machine with adequate tonnage (2–4 tons per sq. in. of projected area); regular maintenance of parting line surfaces; proper die alignment; reduce peak injection pressure; multi-stage injection profiles; die temperature uniformity |
Short Shots | Incomplete part with missing geometry; immediately visible; 100% scrap | Insufficient shot volume; low injection pressure; blocked/undersized gates; low melt temperature; inadequate venting; cold die surfaces | Verify shot sleeve fill volume; maintain plunger tip condition; shot curve monitoring; confirm gate/runner sizing via flow simulation; increase injection speed; vacuum assist; monitor and control die temperature |
Cracks | Linear discontinuities on the surface or internally; can occur during solidification (hot tearing), ejection, or post-casting operations | Hot tearing: thermal contraction stress exceeds material strength while partially solid; Ejection cracks: excessive ejection force, insufficient draft, sharp corners | Proper gate design for free contraction; adequate fillet radii; controlled cooling rates; increase draft angles; polish ejector pin surfaces; optimize ejection speed and sequence |
Warpage | Deviation from intended flatness or shape after ejection; dimensional defect | Uneven residual stresses from non-uniform cooling; asymmetric wall thickness; uneven cooling between die halves; premature ejection | Balanced cooling channel design; proper ejection timing; fixturing or straightening for critical flatness; symmetric geometry; uniform wall thickness; strategic rib placement; simulation tools for distortion prediction |
At TEAM MFG, defect prevention is built into every stage of production rather than relying solely on final inspection. Our approach combines DFM review, process simulation, controlled production parameters, and multi-level quality verification to deliver consistent, defect-free pressure die castings.
Before tooling is manufactured, our engineering team conducts a full DFM analysis covering wall thickness uniformity, gate and runner design, venting strategy, and ejection mechanics. We use solidification and flow simulation to identify potential defect locations and optimize the tooling design before steel is cut.
During production, we monitor shot parameters in real time, including injection speed, intensification pressure, cycle time, and die temperature. Statistical process control (SPC) tracks critical dimensions and flags trends before they produce out-of-spec parts.
Our quality system includes incoming material certification, first-article inspection, in-process checks, and final dimensional and visual inspection per AQL sampling plans or 100% inspection for critical characteristics.
Internal defects such as porosity, shrinkage cavities, and cracks cannot be detected by visual inspection alone. For parts with structural, pressure, or safety requirements, X-ray radiography provides a two-dimensional image of internal integrity.
Computed tomography (CT) scanning goes further by generating a full three-dimensional volumetric dataset of the casting. This allows precise measurement of pore size, location, and distribution against acceptance criteria such as ASTM E505 or customer-specific standards.
X-ray and CT inspection are appropriate when parts serve in load-bearing applications, contain pressurized fluid, or must meet aerospace or automotive quality standards.
Housings, manifolds, valve bodies, and other fluid-handling components require verified pressure integrity. Leak testing confirms that no through-wall porosity, crack, or shrinkage path exists that would allow fluid or gas to escape under operating conditions.
Common methods include air decay testing, helium mass spectrometry, and hydrostatic pressure testing. The choice of method depends on the required sensitivity, part geometry, and production volume.
TEAM MFG integrates leak testing into the production workflow for all pressure-sensitive castings. Test parameters are defined during the quality planning phase and validated against customer specifications before serial production begins.
Pressure die casting defects are not random failures. Each defect type has identifiable root causes in part design, tooling, process parameters, or material condition. By understanding these relationships, engineering and purchasing teams can work with suppliers to prevent defects rather than simply detect them after the fact.
The most effective approach combines early DFM involvement, process simulation, controlled production, and appropriate inspection methods matched to the part's functional requirements. This reduces scrap, shortens lead times, and lowers total cost per part.
If you are developing a new pressure die casting project or experiencing quality issues with an existing supplier, contact TEAM MFG for a free DFM review and quotation. Our engineering team will identify potential defect risks before tooling is manufactured and provide a clear path to production-ready parts.
