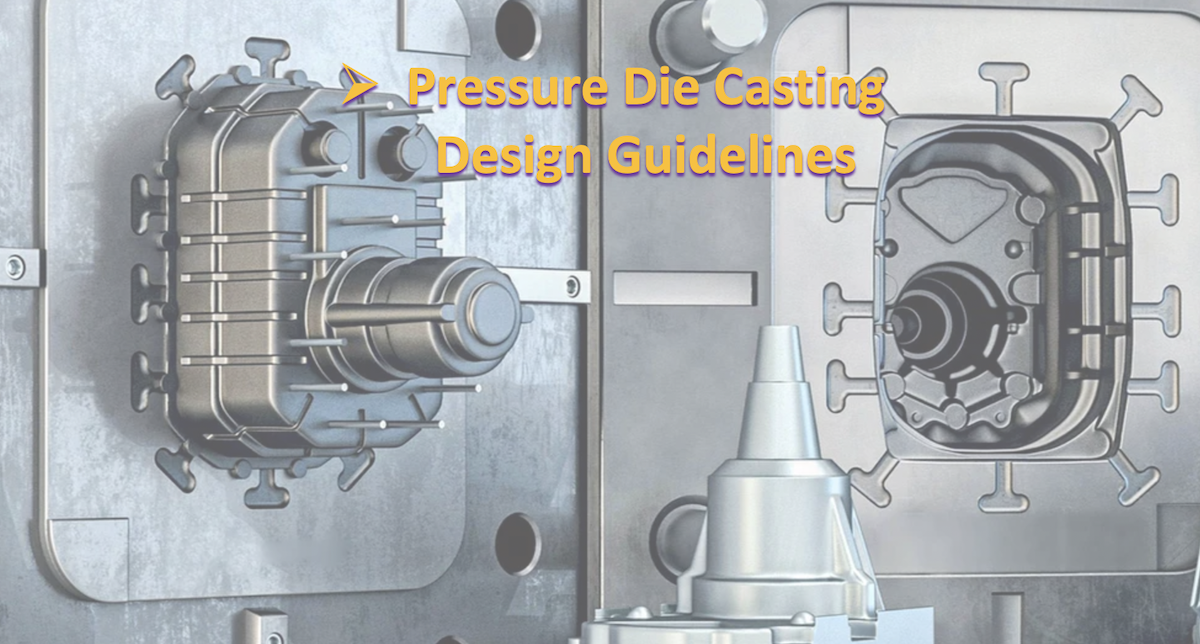

Pressure die casting design guidelines help designers and engineers to optimize wall thickness, draft angles, fillet radii, parting line placement, and dimensional tolerances to produce high-quality aluminum, zinc, or magnesium die cast parts with minimal defects, reduced tooling cost, and efficient cycle times from prototype through full-scale production.
With these design guidelines, designers and engineers can develop parts that fill completely, eject cleanly, and hold the required dimensions without excessive secondary machining. When geometry, alloy selection, and tooling limits are considered early, teams can reduce scrap, shorten cycle times, and control part cost. This guide covers the design decisions that have the biggest effect on castability, die life, part quality, and production reliability.
Pressure die casting design is the process of defining part geometry, wall thickness, draft angles, rib placement, and feature locations so molten metal can fill the die cavity evenly and the finished casting can be ejected without damage. It connects the functional requirements of the part with the physical limits of the pressure die casting process. A good design considers metal flow, solidification shrinkage, die thermal cycling, and ejection mechanics from the first sketch.
These decisions have a direct effect on whether the part can be produced at the required volume, tolerance, and cost. If these constraints are overlooked, the result can be expensive tooling changes or a part that does not perform as intended in service.
Insufficient draft can cause a part to stick in the cavity. Thick sections can create shrinkage porosity and hot spots. Sharp internal corners concentrate stress and can accelerate cracking in the die.
When manufacturability is not considered early, problems can include incomplete filling, excessive flash, premature die wear, and extra CNC machining to correct dimensional issues. Each problem adds cost and can extend lead time. Designing for manufacturability from the beginning addresses these risks before the die steel is cut.
Metal flow determines whether a casting fills completely and solidifies without trapped air or cold shuts. Part geometry, gate location, and runner design all affect the path molten metal takes through the cavity. Understanding these relationships helps engineers develop parts that can maintain consistent quality at production speed.
The pressure die casting process injects metal at high velocity and pressure. As a result, even small geometric features can create turbulence, trap air, or produce uneven solidification if they are not considered during design.
Aluminum alloys such as ADC12, A380, and A383 are widely used in high-pressure die casting. They provide a strong strength-to-weight ratio, good thermal conductivity, and excellent fluidity at typical casting temperatures of 620°C to 680°C.
For aluminum die cast parts, maintain a minimum wall thickness of 1.5 mm for small features and 2.0 mm for larger structural areas. Aluminum shrinks approximately 0.6–0.7% during solidification, so keeping wall thickness uniform is important for controlling sink marks and internal porosity. Draft angles of 1° to 2° per side are standard for aluminum, while deeper draws require additional draft.
Zinc alloys such as Zamak 3 and Zamak 5 flow at lower temperatures, around 400°C–420°C, and can fill thin sections more easily than aluminum. This makes zinc well suited to small, detailed parts with wall thicknesses as low as 0.8 mm. Zinc also provides excellent dimensional stability and surface finish directly from the die.
Magnesium alloys such as AZ91D have the lowest density among common die casting metals, making them suitable for weight-critical aerospace and automotive applications. Magnesium requires careful gating design because of its high reactivity and fast solidification rate. Both zinc and magnesium can allow tighter tolerances than aluminum in many applications, but their tooling wear characteristics are different and should be discussed with the die caster early.
Abrupt transitions between thick and thin walls create localized hot spots where the metal solidifies last. These areas are more prone to shrinkage porosity, surface sink marks, and internal voids that can weaken the part.
Use gradual transitions instead, with a taper ratio of at least 3:1 between adjacent sections. Add a fillet where thick and thin areas meet to distribute thermal mass more evenly. This approach also helps reduce turbulence during filling and promotes directional solidification toward the overflow and venting system.
Consistent wall thickness can improve cycle time because the die cools more uniformly. Parts with more even sections can eject sooner and with less distortion, reducing the need for post-casting straightening.
Holes, slots, and recessed features are common in die cast parts, but each feature adds complexity to the die. Through-holes can be formed with fixed core pins. Blind holes require movable cores or slides, which increase tooling cost and maintenance frequency.
Whenever practical, design holes as through-holes instead of blind holes. If a blind hole is necessary, keep the depth-to-diameter ratio below 3:1 so the core pin does not deflect during injection. Minimize slides and lifters because they add moving components that wear over time and can introduce flash at the parting line.
Ribs increase stiffness and load-bearing capacity without adding bulk to the overall wall. As a practical rule, keep rib thickness at 60% to 70% of the adjacent wall thickness. This keeps the rib base from becoming a thick section where shrinkage porosity can develop.
Space ribs evenly to distribute the load and avoid isolated thick areas. For most aluminum and zinc alloys, a rib height of no more than three times the wall thickness is a practical limit. Taller ribs may need additional draft or may not fill completely at the tip.
Sharp internal corners act as stress concentrators in the finished part and can become crack initiation points in the die steel. A minimum fillet radius of 0.5 mm to 1.0 mm on internal corners improves metal flow and can significantly extend die life.
External corners should also be radiused, typically at 0.5 mm or greater, to reduce stress on the die during thermal cycling. Fillets at the base of ribs, bosses, and walls help spread stress and reduce the risk of cracking during ejection. These small geometry changes can have a substantial effect on part quality and tooling longevity.
Bosses are common mounting features in die cast housings and enclosures. To reduce the risk of shrinkage defects, keep the boss outer diameter no more than twice the wall thickness. Connect the boss to the wall with ribs rather than a solid base.
Threaded holes in die castings should use standard thread sizes. For aluminum, UNC threads generally perform better than fine threads because the coarser profile is more resistant to stripping. If high clamping force is required, consider cast-in inserts or post-machined threads instead of relying on threads formed directly in the die.
Mounting tabs and flanges should have generous fillets at their base to reduce cracking under load. Keep these features away from the parting line when possible so flash does not interfere with mating surfaces.
Before releasing a die for manufacturing, validate the design against the production requirements. This review can catch problems that are inexpensive to fix in CAD but costly to correct after the tool has been built. A structured review helps protect both the schedule and the budget.
Start the review by looking for common issues in the original geometry. Check for insufficient draft on deep walls, thick sections exceeding 4 mm without coring, undercuts that require complex slides, and surfaces that may be difficult to machine after casting.
Also look for features that can trap air during filling, such as deep pockets without a vent path. Check whether the parting line crosses a critical dimension or sealing surface. These problems are relatively straightforward to address during design but can become major obstacles once tooling is underway.
Once the problems are identified, make targeted geometry changes. Add draft where it is missing. Core out thick sections to bring wall thickness into the recommended range. Replace undercuts with features that can be formed in the die opening direction.
Simplify machining by designing cast-in features that meet near-net-shape tolerances. Adjust rib and boss geometry to remove thick junctions. Evaluate each change for its effect on filling, cooling, ejection, and downstream machining operations.

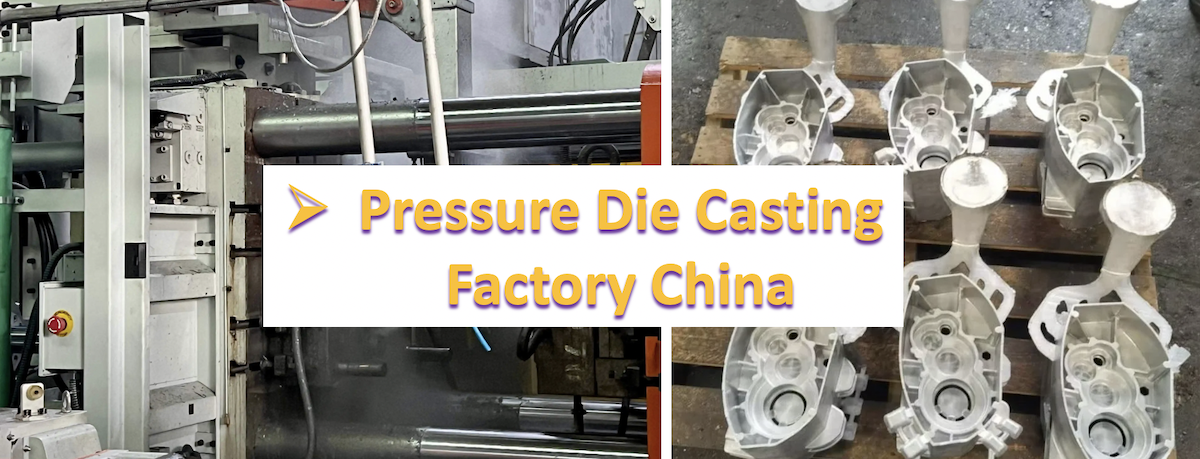

When you are ready to move from design to production, partnering with an experienced team for pressure die casting services helps preserve your design intent through tooling, sampling, and full-scale manufacturing.
The final review should confirm that all critical dimensions can be achieved within standard die casting tolerances, typically ±0.1 mm for features under 25 mm and ±0.2 mm for larger features. Verify that draft angles, fillet radii, and wall thicknesses meet the agreed specifications.
Confirm gate location, overflow placement, and venting strategy with your die caster. Review the parting line and make sure it does not interfere with functional surfaces. For complex geometry, obtain a filling simulation. Release the die for manufacturing only after these checks are complete.
The most important pressure die casting design guidelines can be summarized as follows:
• Wall thickness: Keep walls uniform. Minimum 1.5 mm for aluminum and 0.8 mm for zinc. Avoid sections thicker than 4 mm without coring.
• Draft angles: Apply 1° to 2° per side on all surfaces parallel to the die opening direction. Deeper draws require more draft.
• Ribs: Use ribs at 60%–70% of adjacent wall thickness to add stiffness without creating thick sections.
• Fillets: Add a minimum 0.5 mm radius on all internal corners. Larger radii are preferred for high-stress areas.
• Holes: Prefer through-holes over blind holes. Keep blind hole depth-to-diameter ratio below 3:1.
• Parting line: Place the parting line on non-critical surfaces. Avoid crossing sealing faces or tight-tolerance features.
• Ejection: Ensure adequate draft and surface finish on ejection-side features. Avoid undercuts that prevent straight ejection.
Following these rules can reduce defects, extend die life, and lower total part cost.
