When bringing a new product to market, selecting the right manufacturing process is one of the most critical decisions an engineering team will make. The choice directly impacts your budget, lead times, part quality, and time-to-market. For product developers and procurement managers, the debate often narrows down to CNC machining vs die casting. While both are premier methods for producing custom metal parts, they operate on fundamentally different economic and mechanical principles. CNC machining is better for low-volume production under 1,000 parts due to zero upfront tooling costs and faster lead times, whereas die casting becomes more economical as quantities scale toward 10,000 parts.
In recent years, low-volume manufacturing (typically 10 to 10,000 parts) has become increasingly common. This shift is driven by the demand for product customization, rapid product development cycles, and the explosive growth of industries like electric vehicles (EVs), robotics, medical devices, and agile hardware startups.
In this comprehensive 2026 guide, we will conduct a deep-dive manufacturing process comparison between CNC machining and die casting. We will explore cost break-even analyses, technical tolerances, and real-world case studies to help you determine the most economical and efficient process for your next project.

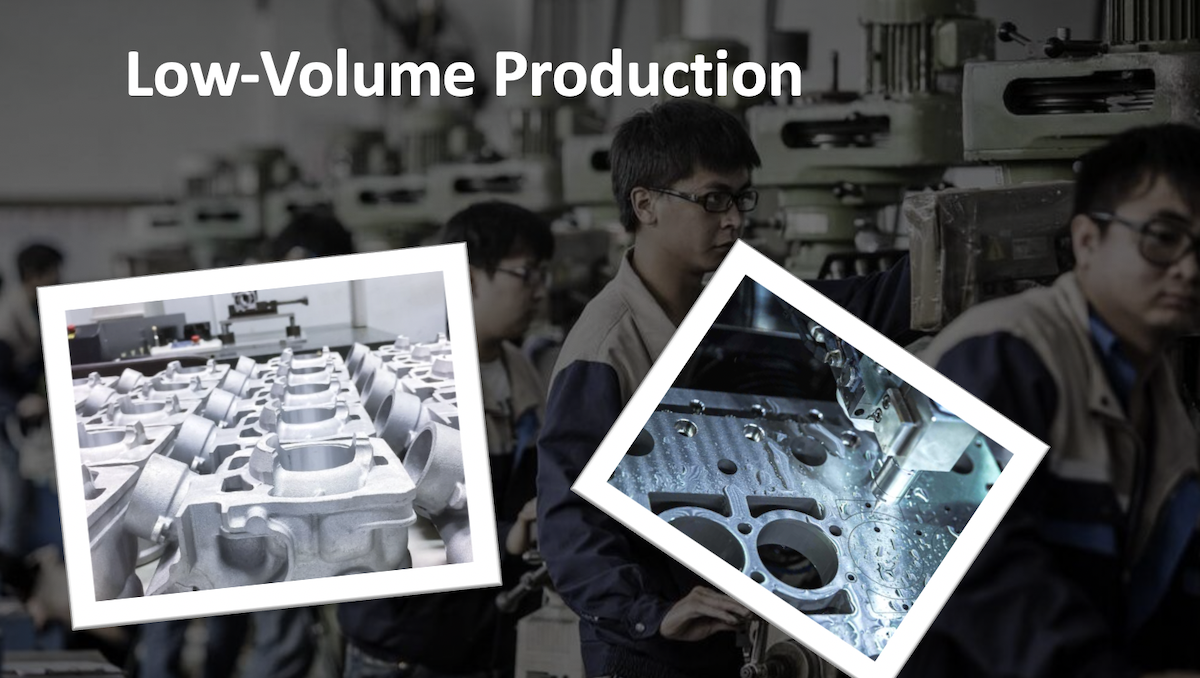

Before comparing processes, we must define the parameters of low-volume production. Historically, manufacturing was divided strictly into "prototyping" and "mass production." Today, the landscape is much more nuanced. Low-volume production bridges the gap between initial design validation and full-scale commercialization, allowing companies to test markets, iterate designs, and fulfill niche demand without the massive capital expenditure of high-volume tooling.
While definitions can vary slightly by sector, the general industry consensus for production volumes is as follows:
Prototype Manufacturing (1–20 parts): Used for form, fit, and function testing. Speed and design flexibility are prioritized over unit cost.
Bridge Production (20–500 parts): Used for pilot runs, clinical trials (in medical devices), or initial market launches.
Low-Volume Manufacturing (500–10,000 parts): Used for established niche products, aftermarket parts, or scaling up before committing to mass-production tooling.
Note: If you are looking to produce parts in these ranges, exploring specialized [Low-Volume Manufacturing Services at TEAM MFG] can help optimize your supply chain.
To make an informed decision, it is essential to understand the technical capabilities and limitations of both processes. CNC machining is a subtractive process where material is removed from a solid block, while die casting (specifically aluminum die casting or zinc) is a formative process where molten metal is injected into a steel mold.
Below is a technical comparison table detailing their capabilities:
Feature | CNC Machining | Die Casting |
|---|---|---|
Process Type | Subtractive (Milling/Turning) | Formative (Metal Injection) |
Standard Tolerances | ±0.005 mm (Highly precise) | ±0.1 mm to ±0.2 mm (Standard) |
Complex Geometries | Excellent (3, 4, 5-axis capabilities) | Moderate (Requires draft angles, no undercuts without complex slides) |
Material Options | Virtually any metal or plastic | Mostly non-ferrous metals (Aluminum, Zinc, Magnesium) |
Mechanical Properties | Superior (Parts machined from wrought billet retain full material strength) | Good (Slightly lower tensile strength due to potential internal porosity) |
Surface Finish | Excellent (Can achieve mirror finishes directly from the machine) | Good (Requires secondary machining or polishing for critical surfaces) |
Lead Time for Tooling | None (Digital toolpaths only) | 3 to 6 weeks (Hard steel mold creation required) |
The most common question our engineers receive is regarding the CNC vs die casting cost. The financial decision hinges on the relationship between fixed costs (tooling/setup) and variable costs (per-part production).
CNC Machining: Low fixed costs, high variable costs. You pay for machine time and labor per part.
Die Casting: High fixed costs, low variable costs. You pay heavily upfront for the mold, but the per-part cost drops dramatically once running.
Volume Tier | CNC Machining Economics | Die Casting Economics | Winner for this Tier |
|---|---|---|---|
1 - 100 Parts | No tooling cost. High per-part cost, but total spend is lowest. | Mold cost (3,000− 10,000+) ruins ROI at this volume. | CNC Machining |
100 - 500 Parts | Per-part cost remains steady. Total cost begins to climb. | Mold cost is amortized, but per-part savings haven't offset tooling yet. | CNC Machining |
500 - 2,000 Parts | Total cost is high due to machine hours. | Tooling cost is absorbed. Per-part cost plummets. Break-even occurs here. | Tie / Transition Zone |
2,000 - 10,000 Parts | Prohibitively expensive for simple parts. | Highly economical. Fast cycle times yield massive ROI. | Die Casting |
Pro Tip: For complex parts requiring tight tolerances, a hybrid approach is often best: use low-volume die casting for the near-net shape, followed by secondary CNC machining services for critical faces and holes.
Use this quick decision matrix to identify the right process for your specific project requirements:
Project Requirement | Choose CNC Machining If... | Choose Die Casting If... |
|---|---|---|
Part Complexity | Part has deep cavities, complex 3D contours, or strict internal geometries. | Part has uniform wall thickness and can accommodate draft angles. |
Material Needs | You need stainless steel, titanium, brass, or high-performance plastics. | You are using aluminum, zinc, or magnesium alloys. |
Timeline | You need parts in 3 to 7 days (Rapid prototyping). | You have 4 to 8 weeks to allow for mold design and fabrication. |
Surface & Tolerance | Requires ultra-tight tolerances (±0.01mm) and pristine surface finishes. | Standard tolerances are acceptable; secondary finishing will be applied. |
Budget Profile | You want to avoid upfront capital expenditure (CapEx) on tooling. | You have the budget for upfront tooling to secure a lower long-term unit price. |

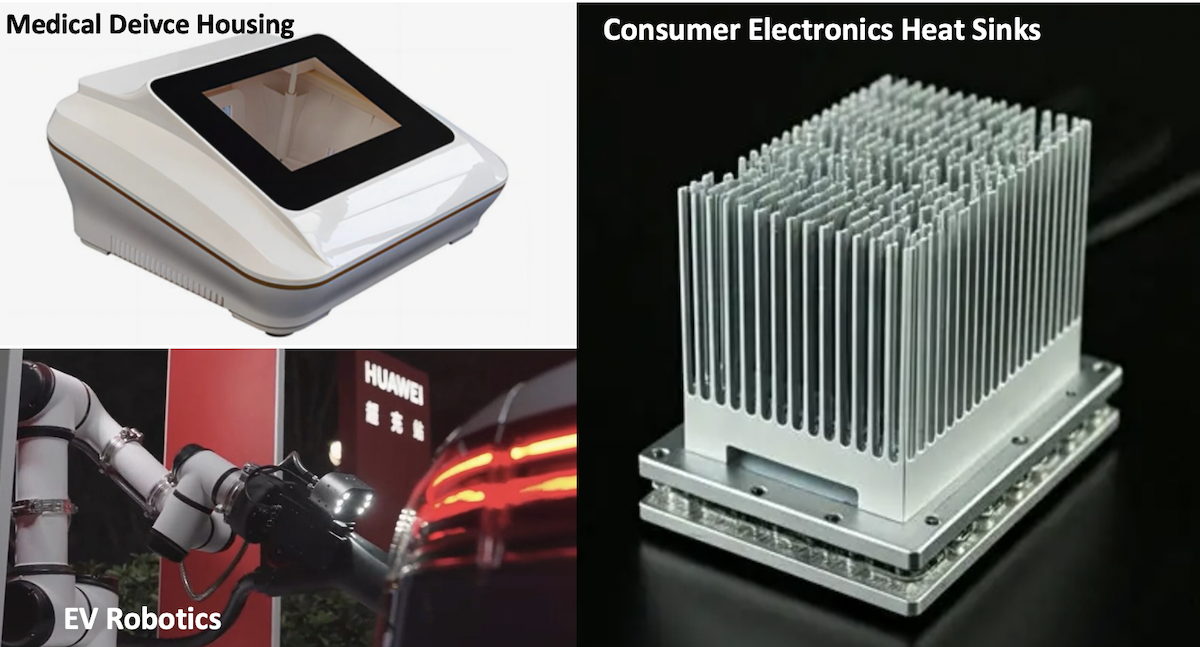

To demonstrate how these theories apply in the real world, here are three case studies from our production floor at TEAM MFG.
Challenge: A medical startup needed 300 titanium housings for FDA clinical trials.
Solution: We utilized 5-axis CNC machining. Because titanium cannot be die cast, and the volume was too low to justify expensive metal injection molding (MIM) tooling, CNC provided the required biocompatibility, precision, and speed without tooling costs.
Challenge: A hardware company needed 5,000 complex aluminum heat sinks.
Solution: We utilized aluminum die casting. The high thermal conductivity of cast A380 aluminum was perfect. By using a multi-cavity mold, we achieved a cycle time of just 15 seconds per part, drastically reducing the unit cost compared to machining them from solid billet.
Challenge: An EV robotics company needed to produce a complex motor mount. They required 50 units for initial testing, but projected a need for 20,000 units for mass production within 18 months.
The Transition Strategy:
Prototype Phase (1-50 parts): We used CNC machining from 6061-T6 aluminum. This allowed the engineering team to test the mount, make three rapid design iterations, and validate the fit without waiting for tooling.
Mass Production Phase (20,000+ parts): Once the design was frozen, we transitioned to die casting. We used the CNC-machined prototype data to design the die cast mold, incorporating necessary draft angles and adjusting wall thicknesses for optimal metal flow.
Result: The client saved 6 weeks of lead time during the critical R&D phase, and ultimately achieved a 65% reduction in per-part cost during mass production.
As we move through 2026, sustainability and advanced tech are reshaping the CNC machining vs die casting debate.
Sustainability: Die casting is highly sustainable regarding material waste, as almost all sprues and runners are immediately recycled back into the furnace. CNC machining generates more scrap (chips), though modern facilities like TEAM MFG utilize advanced recycling programs to repurpose metal swarf.
2026 Trends - AI Toolpath Optimization: AI-driven CAM software has reduced CNC machining cycle times by up to 20%, pushing the break-even point for CNC slightly higher and making it more competitive for volumes up to 1,500 parts.
2026 Trends - 3D Printed Sand Molds: For low-volume die casting and sand casting, 3D printing sand molds is eliminating the need for expensive hard tooling for runs of 50–200 parts, blurring the lines between prototyping and low-volume production.
A: Yes, low-volume die casting is highly viable. By utilizing softer tooling materials (like aluminum molds instead of hardened H13 steel) or rapid tooling techniques, manufacturers can produce runs of 500 to 5,000 parts cost-effectively before the mold degrades.
A: Generally, CNC machining produces stronger parts. Because CNC parts are machined from extruded or forged billets, the metal grain structure is continuous and dense. Die cast parts can occasionally suffer from microscopic internal porosity, which can slightly reduce tensile strength under extreme stress.
A: Transitioning requires Design for Manufacturability (DFM) adjustments. You must add draft angles to vertical walls, ensure uniform wall thickness to prevent sink marks, and remove deep undercuts. Consulting with an expert manufacturing partner early in the design phase is crucial.
There is no universal "better" option in the CNC machining vs die casting debate; the right choice depends entirely on your volume, material requirements, geometric complexity, and budget.
Choose CNC machining for ultra-precise, complex parts, low upfront costs, and rapid prototyping (1 to 500 parts).
Choose die casting for high-volume, lower-complexity non-ferrous parts where minimizing the per-unit cost is the ultimate goal (1,000 to 10,000+ parts).
Navigating these variables can be complex. We strongly encourage you to consult an experienced manufacturing partner to evaluate your specific project and determine the most economical process.
Ready to optimize your next production run? Upload your CAD files today and get an instant, detailed DFM (Design for Manufacturability) analysis and quote from the engineering experts at TEAM MFG. Let us help you bridge the gap from prototype to mass production seamlessly.
