In modern manufacturing, selecting the right production method is the difference between a profitable product launch and a financial disaster. Yet, the CNC Machining vs Injection Molding debate remains one of the most misunderstood topics among product designers, procurement professionals, and startup founders, how to choose? According to our experiences: Choose CNC machining for low-volume production, rapid prototyping, and high-precision metal parts, but opt for injection molding when scaling to high-volume mass production of plastic components to minimize per-unit costs.
Some of the engineers and buyers have the biggest misconception is that "injection molding is always cheaper." While the per-part cost of molded parts is incredibly low at high volumes, choosing the wrong process for your specific production volume, part complexity, or material can increase project costs by 30% to 80% due to hidden tooling fees, design revisions, and scrapped inventory.
In this comprehensive guide, we will move beyond basic definitions. You will learn about the Break-even Volume, the Total Cost of Ownership (TCO), and Hybrid Manufacturing Strategies that will fundamentally change how you approach your next project. Whether you are looking for rapid prototyping, low-volume manufacturing, or full-scale production manufacturing, this guide will help you make the optimal choice.

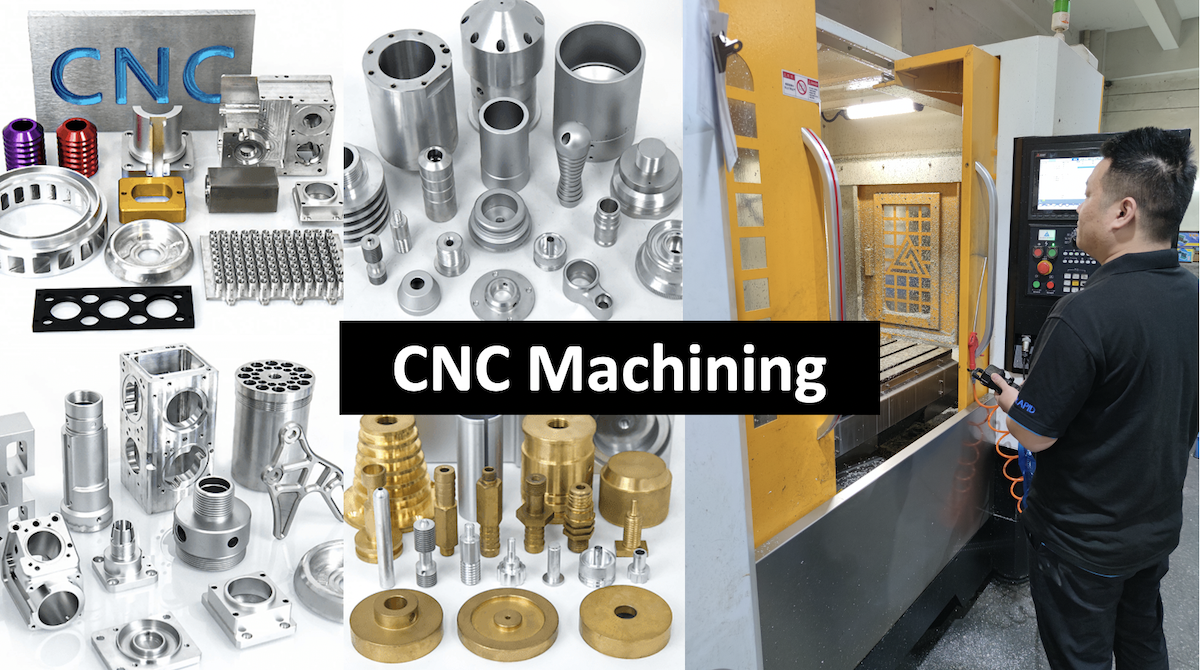

CNC (Computer Numerical Control) machining is a subtractive manufacturing process where pre-programmed computer software dictates the movement of factory tools and machinery.
CNC Milling: Rotary cutters remove material from a stationary workpiece to create complex geometries, pockets, and slots.
CNC Turning: The workpiece rotates while a stationary cutting tool shapes it, ideal for cylindrical parts.
5-Axis Machining: Allows the cutting tool to move across five different axes simultaneously, enabling the creation of highly complex, aerospace-grade geometries in a single setup.
EDM and Secondary Operations: Electrical Discharge Machining (EDM) uses electrical sparks to cut hard metals, often used for intricate mold details or tight internal corners.
CNC machining supports a vast array of materials, including:
Metals: Aluminum, Stainless Steel, Titanium, Brass, Copper.
Plastics: Engineering plastics (Delrin/POM, Nylon) and High-performance plastics (PEEK, PTFE, Ultem).
Aerospace, Medical Devices, Automotive, Robotics, and High-end Electronics.

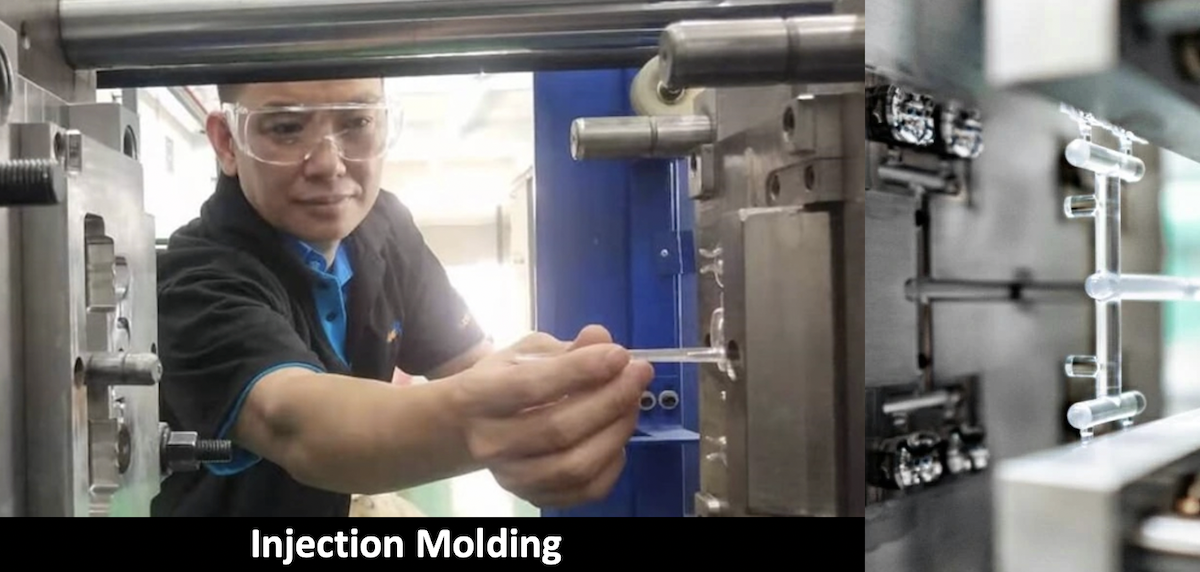

Injection molding is a formative manufacturing process where molten material is injected into a custom-designed mold cavity under high pressure.
Mold Manufacturing: A custom metal mold (usually steel or aluminum) is precision-machined.
Plastic Melting: Plastic resin pellets are fed into a heated barrel and melted.
Injection: A screw mechanism forces the molten plastic into the mold cavity at high pressure.
Cooling: The part cools and solidifies inside the mold.
Ejection: The mold opens, and ejector pins push the finished part out.
ABS, PP (Polypropylene), PC (Polycarbonate), PA (Nylon), POM (Acetal), PMMA (Acrylic), TPU, and PEEK.
Consumer Products, Medical Devices, Automotive Interiors/Exteriors, Home Appliances, and Electronics Enclosures.
To quickly understand the manufacturing process comparison, refer to this comprehensive breakdown:
Factor | CNC Machining | Injection Molding |
|---|---|---|
Manufacturing Principle | Subtractive (removing material) | Formative (shaping molten material) |
Suitable Materials | Metals, Plastics, Wood, Composites | Primarily Plastics, Elastomers, Liquid Silicone |
Initial Tooling Cost | Very Low (No custom tooling needed) | Very High (Custom mold required) |
Per-Part Cost | High (Decreases slightly at volume) | Very Low (Drops significantly at volume) |
Lead Time | Fast (Days to weeks) | Slow initially (Weeks for mold), fast per part |
Accuracy | Extremely High (±0.01mm or better) | High (±0.05mm to ±0.1mm, subject to shrinkage) |
Surface Finish | Excellent (Depends on tooling/feeds) | Excellent (Replicates mold texture perfectly) |
Production Volume | 1 to 1,000 parts | 1,000 to 1,000,000+ parts |
Design Flexibility | High (Easy to alter CAD/CAM) | Low (Requires physical mold modifications) |
Part Complexity | Limited by tool access and setups | High (Can include snap-fits, living hinges) |
Material Waste | High (Subtractive chips/swarf) | Low (Runners can often be reground) |
Engineering Changes | Cheap and fast | Expensive and slow (welding/re-machining mold) |
Scalability | Linear (More machines = more output) | Exponential (Multi-cavity molds scale massively) |
Automation Level | High (Lights-out machining possible) | Extremely High (Fully automated cycles) |
Environmental Impact | High waste, but metal chips are 100% recyclable | Low waste, but mixed plastic scrap is hard to recycle |
When evaluating CNC vs injection molding cost, looking solely at the unit price is a critical mistake.
Material Cost: Bought in standard billets/blocks; higher raw material cost.
Machine Time: The largest variable; complex parts require longer spindle time.
Tool Wear: Cutting tools degrade and must be replaced.
Labor & Programming: CAM programming and machine setup.
Finishing & Inspection: Deburring, anodizing, and CMM inspection add to the final cost.
Mold Tooling: The massive upfront capital expenditure (can range from 2,000foraluminumto 100,000+ for hardened steel).
Material: Bought in bulk pellets; very low raw material cost.
Machine Cycle: Highly automated; cost per cycle is divided by the number of cavities.
Labor & Packaging: Minimal labor per part; mostly automated ejection and packaging.
New Insight: The Break-even Volume is the exact number of parts where the high initial tooling cost of injection molding is offset by its lower per-part cost, making it cheaper than CNC machining.
1 - 10 parts: CNC is 90% cheaper.
100 parts: CNC is still significantly cheaper.
500 parts: The gap narrows; aluminum rapid tooling for IM becomes competitive.
1,000 parts: The typical break-even point for simple, small parts.
5,000 parts: Injection molding becomes dramatically cheaper.
10,000 to 100,000+ parts: Injection molding is the undisputed king of cost-efficiency.
Expert Takeaway: The break-even volume shifts based on part size and complexity. A massive, complex part might require a 80,000 steelmold, pushing the break −even point to 15,000 parts. A simple, small clip might only need a 3,000 aluminum mold, breaking even at just 400 parts.
Time-to-market is critical. Here is how the timelines compare for a standard production run:
Phase | CNC Machining | Injection Molding |
|---|---|---|
Design Preparation | 1-2 Days (CAD cleanup) | 3-7 Days (DFM, draft angles, shrinkage) |
CAM/Mold Design | 1-2 Days (Toolpath generation) | 5-14 Days (Complex 3D mold design) |
Tooling/Mold Mfg | 0 Days (Standard stock used) | 3-8 Weeks (Machining the mold itself) |
First Article Insp. | 1 Day | 3-5 Days (T1 sampling and adjustments) |
Production Ramp-up | Immediate | 1-2 Weeks (Process optimization) |
Total Initial Lead Time | 3 to 7 Days | 5 to 10 Weeks |
If your design requires Aluminum, Steel, Titanium, or Copper, CNC machining (or casting/forging) is your only viable route. Standard injection molding is strictly for polymers.
For plastics like ABS, Nylon, POM, PC, and PEEK, both methods work, but the material properties differ:
Mechanical Strength: CNC machined plastics are cut from extruded or compression-molded billets, offering superior, isotropic mechanical strength. Injection molded parts can have weld lines and anisotropic strength due to polymer flow.
Temperature & Chemical Resistance: High-performance plastics like PEEK machine beautifully and retain exact chemical resistance. In molding, the high-heat shear can sometimes degrade sensitive polymers if not processed perfectly.
New Insight: Material Availability Dictates the Route. Often, it’s not just about what the machine can do, but what material is available. If you need a specific glass-filled Nylon for a low-volume run, buying a 500kg minimum order of resin pellets for injection molding makes no sense. CNC machining allows you to buy a single $50 plastic rod, making it the logical choice for low-volume manufacturing.
Feature | CNC Machining | Injection Molding |
|---|---|---|
Typical Tolerance | ±0.01mm to ±0.025mm | ±0.05mm to ±0.15mm |
Repeatability | Extremely High | High (but subject to thermal variation) |
Flatness | Excellent (can be machined perfectly flat) | Prone to warping/bowing during cooling |
Hole Accuracy | Perfect (drilled/bored to exact size) | Subject to shrinkage (requires mold compensation) |
Thread Quality | True machined threads (high strength) | Molded threads (weaker, prone to stripping) |
Engineering Considerations: CNC easily holds strict ISO 2768 fine tolerances and complex GD&T callouts. Injection molding requires designers to account for mold shrinkage (which varies by material and wall thickness) and often requires secondary CNC machining allowances for critical mating surfaces.
Finish Type | CNC Machining Options | Injection Molding Options |
|---|---|---|
Standard | As-machined (visible tool marks) | As-molded (glossy or matte depending on steel) |
Textured | Bead blasting, Sandblasting | SPI finishes (A1 to D3), VDI textures, Laser engraving |
Coated | Anodizing, Powder coating, Plating | In-mold decoration (IMD), Paint (rarely needed) |
Polished | Hand polishing, Buffing | Mold polishing (transfers to part) |
Injection molding wins for out-of-the-box aesthetic finishes because the part perfectly replicates the mold's surface. CNC requires secondary post-processing to achieve similar cosmetic results.
New Insight: "Complexity" means entirely different things for each process.
CNC Complexity = Tool Access. CNC struggles with internal, hidden geometries that a cutting tool cannot physically reach. However, it excels at:
Deep, precision pockets.
Extremely thin walls (in metals).
True, high-strength internal threads.
Heavy, solid metal components.
Injection Molding Complexity = Ejection and Flow. Molding struggles with undercuts that prevent the part from ejecting (requiring expensive side-actions or lifters). However, it excels at:
Snap-fits and living hinges (impossible in CNC).
Complex ribbing for structural support without adding weight.
Bosses for screw assembly.
Multi-cavity production (making 16 parts per cycle).
DFM Tip: Always apply Design for Manufacturability (DFM) principles. Add draft angles for molding; ensure tool clearance radii for CNC.
Use this chart to select the right manufacturing methods based on your annual quantity:
Annual Quantity | Recommended Process | Why? |
|---|---|---|
1 – 20 | CNC Machining / 3D Printing | Zero tooling costs; fastest turnaround for rapid prototyping. |
20 – 100 | CNC Machining | Still cheaper than paying for a mold; ideal for bridge production. |
100 – 500 | CNC or Rapid Aluminum Tooling | The transition zone. Aluminum molds become viable for simple parts. |
500 – 2,000 | Injection Molding (Aluminum Mold) | Per-part cost drops significantly; ideal for low-volume manufacturing. |
2,000 – 10,000 | Injection Molding (P20/Pre-hardened Steel) | Mold durability increases; ROI on tooling is guaranteed. |
10,000 – 100,000+ | Injection Molding (Hardened Steel) | Full-scale production manufacturing. Multi-cavity molds maximize output. |
Most buyers only compare the unit price. To truly evaluate CNC machining services vs injection molding services, you must calculate the Total Cost of Ownership (TCO).
Here are the hidden costs that can derail your budget:
Engineering Changes: Changing a dimension in CNC costs on tooling, Changing it in injection molding requires welding the mold, re−machining, and re−polishing(Cost: 500 - $5,000+).
Inventory & Warehousing: Injection molding requires high Minimum Order Quantities (MOQs) to be cost-effective. Storing 50,000 parts costs money. CNC allows for Just-In-Time (JIT) manufacturing.
Machine Setup & Scrap Rate: Molding requires purging the machine and running 20-50 scrap parts to stabilize temperature and pressure before good parts are made.
Spare Tooling: Molds wear out. A mold rated for 100,000 shots will need to be replaced if your product lifecycle extends to 300,000 units.
Production Downtime: If a CNC tool breaks, you replace the insert in 2 minutes. If an injection mold ejector pin breaks inside the cavity, the machine is down for hours.
Modern buyers care about their carbon footprint.
Material Utilization: Injection molding is highly efficient, using near-net-shape material. CNC generates up to 60-80% waste in the form of chips.
The Green Paradox (When CNC is Greener): Metal chips from CNC machining are 100% recyclable and easily melted down with zero loss of properties. Conversely, plastic sprues and runners from injection molding are often "downcycled" or sent to landfills because regrinding plastic degrades its polymer chains. Furthermore, machining high-performance recycled metals often yields a lower carbon footprint than producing virgin plastic resins from petroleum.
New Insight: The most successful hardware companies don't choose just one process; they use a phased Hybrid Manufacturing Strategy.
Instead of risking $50,000 on a production mold before the market is proven, follow this lifecycle workflow:
Prototype (1-5 parts): Use CNC machining or high-res 3D printing to test form and fit.
Functional Testing (10-50 parts): Use CNC machining in the exact final production material to test mechanical strength, thermal limits, and regulatory compliance.
Small Batch CNC (100-500 parts): Launch the product to early adopters or run a Kickstarter campaign using low-volume CNC manufacturing.
Bridge/Rapid Tooling (500-2,000 parts): Once market demand is proven, invest in a low-cost aluminum injection mold to scale up and reduce unit costs.
Production Injection Molding (10,000+ parts): Reinvest profits into a multi-cavity, hardened steel mold for mass production.
This strategy minimizes upfront financial risk, allows for design iterations based on real user feedback, and optimizes cash flow.
The debate of CNC Machining vs Injection Molding doesn't have a single winner; it has a right application for every scenario.
Choose CNC Machining: if you need metal parts, extreme precision, tight tolerances, low volumes, or if your design is still evolving.
Choose Injection Molding: if you are producing high volumes of plastic parts, require complex cosmetic textures, and want the lowest possible per-part cost at scale.
By understanding the break-even volume, calculating the Total Cost of Ownership, and utilizing a hybrid manufacturing strategy, you can save thousands of dollars and shave months off your time-to-market.
Whether you need high-precision CNC machining services for your aerospace prototypes or high-volume injection molding services for your consumer electronics, TEAM MFG has you covered. Our engineering team provides free DFM (Design for Manufacturability) analysis to ensure you choose the right process, material, and tooling strategy for your specific budget and volume.
