CNC Machining Vs 3D Printing: Cost, Speed & Strength Compared (2026 Complete Engineering Guide)

In modern product development, the debate of CNC Machining vs 3D Printing is one of the most critical decisions engineers and sourcing managers face. Why do buyers and engineers constantly compare these two prototype manufacturing methods? Because choosing the wrong process doesn’t just delay your timeline—it becomes incredibly expensive. Whether you are evaluating CNC machining or 3D printing for a single prototype or planning low-volume manufacturing for a market launch, how to choose? While 3D printing provides faster turnaround and lower upfront costs for complex, low-volume prototypes, CNC machining delivers vastly superior material strength and better per-part cost-efficiency for scaled production.

This comprehensive guide will help you decide which manufacturing process comparison fits your specific project. It is specifically written for design engineers, sourcing managers, hardware startups, and product developers who need actionable, data-driven insights. At TEAM MFG, we leverage both technologies daily, and this guide distills our years of manufacturing expertise into a clear, usable framework.

What Is CNC Machining

CNC (Computer Numerical Control) machining is a subtractive manufacturing process. It starts with a solid block of material (a blank) and uses computer-controlled cutting tools to remove material until the final part geometry is achieved.

How CNC Machining Works

A CAD model is converted into G-code via CAM software. The machine reads this code to move cutting tools along multiple axes, precisely carving the part.

Common CNC Processes

• CNC Milling: Uses rotary cutters to remove material from a stationary workpiece. Ideal for complex 3D shapes, slots, and pockets.

• CNC Turning: The workpiece rotates while a stationary cutting tool shapes it. Perfect for cylindrical, conical, or spherical parts.

• 5-Axis Machining: Allows the cutting tool to move across five different axes simultaneously, enabling the creation of highly complex geometries in a single setup.

Materials Available & Typical Industries

CNC machining handles almost any solid material, including metals (aluminum, steel, titanium) and engineering plastics (PEEK, Delrin, ABS). It is the backbone of the aerospace, automotive, medical, and heavy machinery industries where precision and strength are non-negotiable.

What Is 3D Printing

3D printing, formally known as additive manufacturing, builds parts layer by layer from a digital model. In the context of CNC vs additive manufacturing, 3D printing adds material rather than removing it.

How Additive Manufacturing Works

A 3D model is sliced into hundreds or thousands of horizontal layers. The printer then deposits, cures, or fuses material layer by layer until the physical object is complete.

Major Technologies

• FDM (Fused Deposition Modeling): Extrudes melted thermoplastic filament. Great for cheap, rapid prototypes.

• SLA (Stereolithography): Uses a UV laser to cure liquid resin. Offers high detail and smooth surface finishes.

• SLS (Selective Laser Sintering): Uses a laser to sinter powdered nylon. Excellent for functional, complex parts without support structures.

• MJF (Multi Jet Fusion): Similar to SLS but uses a fusing agent and infrared heat for faster, more isotropic nylon parts.

• DMLS/SLM (Direct Metal Laser Sintering / Selective Laser Melting): Fuses metal powders to create dense, complex metal parts.

Available Materials & Typical Applications

Materials range from standard PLA and ABS to advanced resins, nylon, and metal powders. It is heavily used in consumer products, medical implants, rapid prototyping, and low-volume aerospace components.

CNC Machining vs 3D Printing at a Glance

To answer most readers' questions in under 3 minutes, here is a high-level manufacturing process comparison.

CNC Machining vs 3D Printing Cost Comparison

Understanding CNC machining cost versus 3D printing cost requires looking beyond the initial quote.

Cost Factors for CNC

• Machine Time: Hourly rates for 3-axis vs. 5-axis machines.

• Material Cost: Block size required (including waste).

• Setup Cost: Fixturing, workholding, and machine calibration.

• Programming: CAM programming and toolpath optimization.

• Tool Wear: Replacement of end mills and inserts.

• Surface Finishing: Deburring, polishing, or anodizing.

Cost Factors for 3D Printing

• Printing Time: Machine hourly rate based on build time.

• Material Consumption: Volume of the part plus support structures.

• Machine Depreciation: Amortized cost of the printer.

• Support Removal: Manual labor to break away or dissolve supports.

• Post-processing: UV curing, sanding, or vapor smoothing.

Cost Comparison by Production Quantity

New Insight: The Geometry Break-Even Point

Most competitor articles overlook this: the break-even point shifts based on part geometry. For a simple cylindrical spacer, CNC becomes cheaper than 3D printing at just 5-10 parts. However, for a highly complex, organic lattice structure, the CNC programming and 5-axis machine time are so immense that 3D printing remains the cheaper option even at 100+ parts. Always evaluate cost against geometric complexity.

Which Process Is Faster

Speed is relative to the production stage. Let's compare every step of the process.

Contextual Speed Comparisons

• Emergency Prototypes / Same-day Prototypes: 3D printing (specifically FDM or SLA) wins. You can print a part in hours.

• Production Orders: CNC wins. Once programmed and fixtured, a CNC machine can pump out identical parts much faster than a print farm.

• Overseas Manufacturing Lead Time: When sourcing from partners like Team MFG, 3D printing files are instantly transferred, but CNC requires DFM (Design for Manufacturability) feedback. However, once production starts, CNC batch shipping is highly optimized.

Strength Comparison: Which Parts Last Longer

When evaluating CNC machining strength, it is vital to understand material grain and structural integrity. This is one of the highest-search-volume questions in manufacturing.

Key Strength Metrics

• Tensile & Impact Resistance: CNC parts inherit the full strength of the raw billet. Printed parts are weaker along the Z-axis (layer lines).

• Fatigue & Wear Resistance: CNC metals and machined engineering plastics (like Delrin) vastly outperform 3D printed polymers in high-friction or cyclic-loading environments.

• Heat & Chemical Resistance: CNC parts can be made from solid PEEK or Titanium, enduring extreme environments. 3D printed resins and standard FDM plastics will warp or melt.

Engineering Tip

Printed parts often fail along layer lines because the interlayer adhesion is only a fraction of the base material's strength. CNC parts retain the continuous grain structure and full mechanical properties of the original material, making them mandatory for load-bearing structural applications.

Accuracy and Tolerance Comparison

CNC machining accuracy and CNC vs 3D printing tolerance are where subtractive manufacturing truly shines.

Advanced Considerations

• ISO Tolerances & GD&T: If your drawing requires strict Geometric Dimensioning and Tolerancing (GD&T) like true position, parallelism, or concentricity, CNC is the only viable option.

• Secondary Machining: It is common to 3D print a near-net-shape metal part (DMLS) and then use CNC machining for critical mating surfaces and precision holes to achieve tight tolerances.

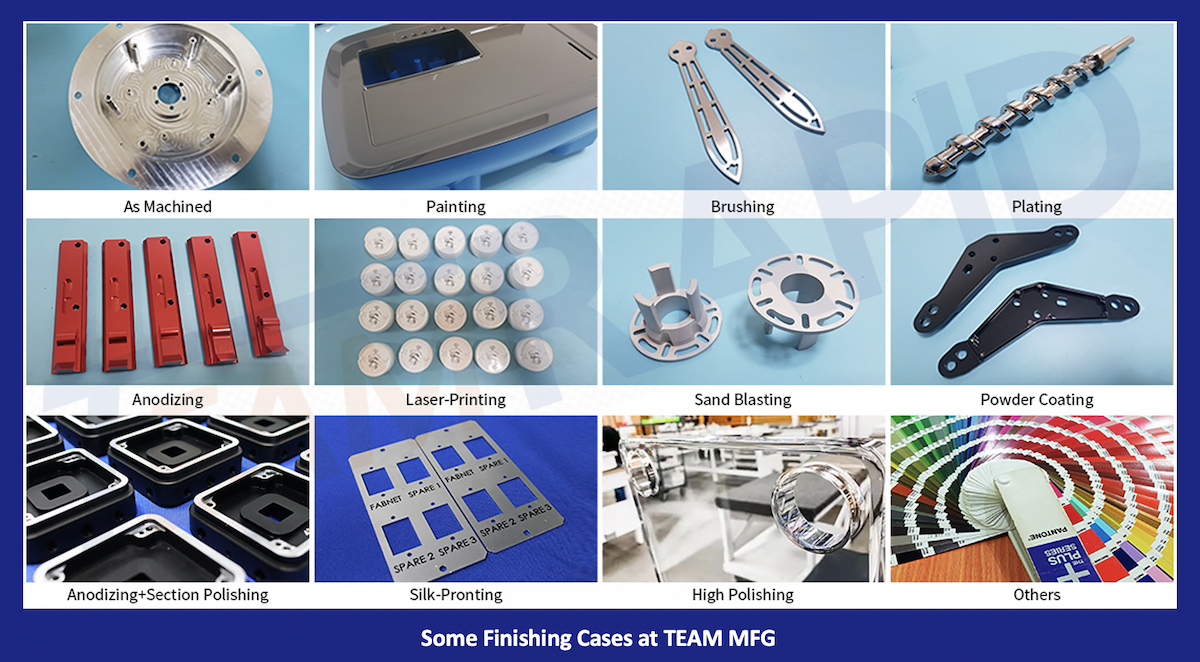

Surface Finish Comparison

The aesthetic and functional surface of a part dictates its real-world performance.

CNC Machined Finishes

CNC parts come off the machine with a smooth, professional finish (typically Ra 1.6 μm to Ra 3.2 μm). They can be easily enhanced via:

• Polishing: Mirror finishes (Ra 0.1 μm).

• Sandblasting: Matte, uniform textures.

• Anodizing: Adds color and corrosion resistance (for aluminum).

• Electroplating/Painting: Excellent adhesion due to dense material.

3D Printed Finishes

Printed parts inherently show visible layer lines.

• FDM: Rough (Ra 10+ μm). Requires heavy sanding.

• SLA: Smooth (Ra 1.5 - 3.0 μm) but requires UV curing and support scar removal.

• SLS/MJF: Grainy, powdery feel. Can be improved via vapor smoothing or tumbling.

Note: 3D printed parts are notoriously difficult to paint or electroplate because the porous surface absorbs chemicals and prevents smooth adhesion.

Material Comparison

Here is a material availability matrix comparing the two technologies.

Design Freedom: Which Technology Has Fewer Limitations?

3D printing is the undisputed king of design freedom, while CNC machining is bound by the physics of cutting tools.

• Internal Channels & Organic Geometry: 3D printing can create complex internal cooling channels (like conformal cooling in molds) that CNC cannot reach.

• Lattice Structures & Hollow Structures: 3D printing can create lightweight, hollowed-out parts with internal lattices. CNC requires the tool to physically access the material to remove it.

• Thin Walls & Living Hinges: 3D printing excels at ultra-thin walls and integrated living hinges.

• Undercuts & Deep Pockets: CNC struggles with deep, narrow pockets (tool deflection) and requires complex multi-axis setups for undercuts. 3D printing ignores undercuts entirely.

• Threaded Holes: CNC cuts perfect, strong threads. 3D printed threads are weak and often require secondary tapping or threaded inserts.

Where CNC fails: Complex internal geometries and consolidated assemblies. Where 3D printing fails: Sharp internal corners (tools are round, but printers can print sharp corners; however, printed sharp corners create stress concentrations) and high-precision mating surfaces.

Part Size Comparison

• Maximum Printable Sizes: Most industrial SLS/SLA printers max out around 300mm x 300mm x 400mm. Large format FDM can reach 1000mm+, but with poor accuracy. Large metal 3D printers are incredibly expensive and rare.

• Maximum Machinable Sizes: CNC machines can handle massive parts. Gantry mills and horizontal boring mills can machine engine blocks and aerospace wing spars spanning several meters.

• Small Precision Components: For micro-components (watch parts, medical implants), CNC Swiss machining is vastly superior to the resolution limits of 3D printers.

Production Volume Comparison

Choosing the right method for low-volume manufacturing and beyond is critical for unit economics.

Note: Once you cross the 2,000 to 5,000 unit threshold, the high initial tooling cost of injection molding or die casting is offset by the pennies-per-part production cost, making them the ultimate choice for mass production.

Industry Applications

Aerospace

• Why CNC: Structural brackets, landing gear components, and engine parts require the flawless strength and tight tolerances of 5-axis CNC machined titanium and aluminum.

• When 3D Printing: Used for lightweight, topology-optimized brackets, ducting, and non-critical interior cabin components.

Medical

• Why CNC: Surgical instruments, orthopedic cutting guides, and MRI machine components require absolute precision and biocompatible metals (machined Titanium).

• When 3D Printing: Custom patient-specific implants (like porous titanium hip cups for bone ingrowth) and anatomical models for surgical planning.

Automotive & Robotics

• Why CNC: Engine blocks, transmission housings, and robotic end-effectors need high wear resistance and precision.

• When 3D Printing: Rapid prototyping of dashboard layouts, custom jigs and fixtures for the assembly line, and lightweight drone frames.

Hidden Costs Buyers Often Overlook

Many CNC machining cost vs 3D printing cost articles only look at the machine quote. As a sourcing manager, you must calculate the Total Cost of Ownership (TCO).

The Hidden Expenses

1. Failed Print Rates & Scrap Costs: 3D printing (especially metal DMLS and large SLA) has a higher failure rate. A failed 20-hour print wastes time and material. CNC failures are rare once the program is proven.

2. Dimensional Inspection: 3D printed parts often warp during cooling. You may need to pay for CMM (Coordinate Measuring Machine) inspection to verify tolerances, whereas CNC parts are highly repeatable.

3. Surface Finishing & Assembly Labor: Removing supports from a complex 3D print can take hours of manual labor. CNC parts often require minimal deburring.

4. Design Revisions: If a CNC part fails, you must re-machine it. If a 3D printed part fails, you can tweak the CAD and reprint, but the delay costs money.

5. Shipping Costs: 3D printed parts are often lighter, but if they require specialized packaging to prevent breakage of fragile layer lines, shipping costs rise.

Practical TCO Checklist

Before signing a PO, ask:

• Does the quote include post-processing and support removal?

• What is the scrap/allowance rate built into the quote?

• Are secondary operations (tapping, inserting, anodizing) included?

• What is the cost of a potential production delay if the first article inspection (FAI) fails?

Decision Matrix: Which Manufacturing Method Should You Choose?

Use this scoring table to make your final decision. (5 stars = Excellent, 1 star = Poor).

Final Verdict

Choose 3D Printing if you need 1 to 10 prototypes quickly, your design features complex internal geometries or lattices, and the part will not bear heavy structural loads.

Choose CNC Machining if you are producing 20+ parts, require tight tolerances (GD&T), need maximum material strength, or require a flawless, professional surface finish.
