Pressure die casting cost depends on tooling investment, alloy selection, part complexity, production volume, and secondary operations, part prices typically ranging from 1USD for small, high-volume components to 35 or more for large, complex castings requiring CNC machining and surface finishing. There is no standard price that fits every project.
This is often one of the first questions engineering and purchasing teams ask when comparing manufacturing options. This guide explains the main cost drivers and shows how to build a realistic budget and compare supplier quotes.
Pressure die casting cost has two main parts: the upfront tooling investment and the recurring cost to produce each part. Tooling is a one-time expense. A simple single-cavity mold may cost a few thousand dollars, while a complex multi-cavity tool with slides and tight tolerances can exceed $100,000. The part price typically covers raw material, machine time, labor, energy, and secondary operations such as CNC machining or surface treatment.
These factors vary from project to project, so two parts of similar size can have very different prices. A housing with thin walls, deep pockets, and multiple side cores costs more to cast than a flat bracket of the same weight. Knowing what drives each cost helps you make design choices that lower the total without compromising function.
For a small aluminum part weighing less than 200 g and produced at more than 10,000 pieces per year, the unit price often ranges from $1.50 to $6.00, depending on complexity and finishing. Larger structural components weighing 1–3 kg may cost $8 to $35 or more per unit. These estimates assume a standard A380 or ADC12 alloy, no unusually tight tolerances, and basic deburring.
Tight dimensional tolerances (±0.05 mm or better), wall sections below 1.5 mm, internal threads that need secondary machining, and finishes such as powder coating or anodizing can all increase the price. Alloy selection matters, too. A380 is a widely used, economical aluminum die casting alloy, while A360 offers better pressure tightness at a modest material premium. For small components, zinc alloys such as Zamak 3 can have lower per-part costs because they allow shorter cycles and longer tool life.
Die casting tooling cost is usually the largest upfront investment in a pressure die casting project. The mold must withstand repeated contact with molten aluminum at temperatures of about 600 °C to 700 °C. Tool material and design complexity therefore affect both the initial price and the mold's service life. Tooling cost should be assessed alongside expected production volume and the intended tool life.
The die's size sets a baseline for tooling cost. Larger parts need larger mold blocks, more tool steel, and more machining time. H13 (AISI), also designated 1.2344 in Europe, is commonly used for aluminum die casting because it resists hot-work wear and thermal fatigue.

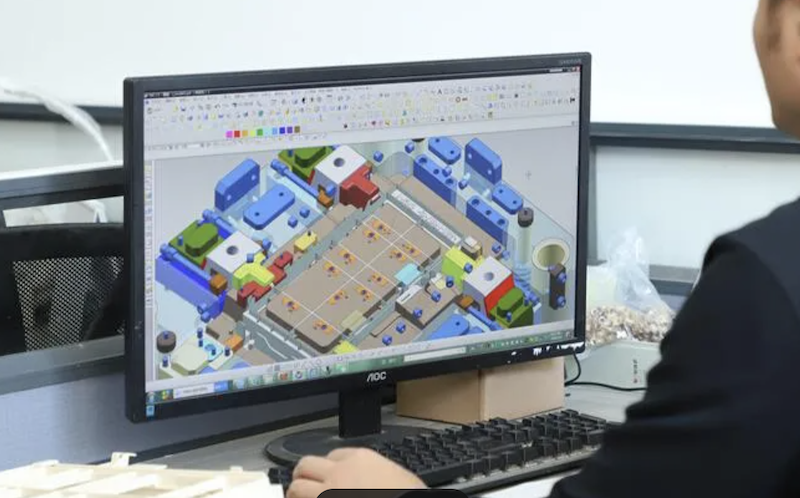

Internal features add to the cost. Cooling channels need to support even solidification and help keep cycle times down. Slides, lifters, and collapsible cores add mechanical complexity, along with extra machining, fitting, and maintenance. Pressure die casting mold design with two hydraulic side slides may cost 30–50% more than a simple two-plate tool with the same footprint. Surface treatments such as nitriding or PVD coatings can extend tool life, but they also increase the upfront investment.
A single-cavity mold produces one part per shot. It generally has the lowest upfront tooling cost and is often used for prototypes, low-volume runs, or parts with a large projected area that uses much of the machine's shot capacity.
A multi-cavity mold produces two, four, or more identical parts in each cycle. Tooling often costs 1.6× to 2.5× as much as a single-cavity mold, but the cost per part can fall because each machine cycle produces several units. Multi-cavity tooling makes sense when annual demand supports the added investment and the part fits within the machine's platen and shot-capacity limits. The break-even point depends on the tooling price difference and the machine time saved per part.
Production volume is one of the biggest factors in die casting cost per part. For small orders, tooling can make up a large share of the unit price. As volume increases, the tooling cost is spread across more parts, while recurring expenses such as material, machine time, and labor account for a larger share of each unit's cost.
For an order of 500 parts, a $15,000 mold adds $30 in tooling cost to each part before production costs are included. The unit price could reach $35 or more when tooling makes up most of the total. If the same part is produced at 50,000 units per year, that $15,000 tooling investment adds just $0.30 per part. At that volume, recurring manufacturing costs—perhaps $3.50 per part—make up most of the unit price.
Longer production runs can also improve process efficiency. Fewer setup changes, better machine utilization, and more time to fine-tune cycle parameters can improve consistency. Compared with short runs interrupted by frequent changeovers, these efficiencies may reduce per-part cost by 10–20%.
Use this formula to spread the tooling investment across the expected number of acceptable parts:
Tooling cost per part = Total tooling cost ÷ Expected number of acceptable parts
Example: The mold costs $20,000, and the planned production total is 40,000 parts over the tool's service life. Assume a 3% scrap rate.
Acceptable parts = 40,000 × 0.97 = 38,800
Tooling cost per part = $20,000 ÷ 38,800 ≈ $0.52
Add this amount to the recurring production cost to estimate the true cost per acceptable part. Recalculate if your volume forecast changes. For example, a buyer planning 10,000 parts per year over four years can spread the tooling cost across 40,000 parts. A one-year program with only 5,000 parts would carry $4.00 in tooling cost per part instead.
A comparable quote takes more than sending a STEP file and asking for a price. These three practices help engineers and purchasing teams compare proposals on the same basis.
Not every project needs a mold rated for 100,000 shots. If the forecast is 5,000 parts, a lower-cost tool using standard H13 and minimal surface treatment may be the better investment. By contrast, a program requiring 500,000 parts over three years may justify premium tool steel, nitrided surfaces, and robust slide mechanisms to reduce unplanned downtime.
Match tool durability to the demand forecast. Specifying more tool life than the project needs can raise the upfront cost without delivering value. Choosing a tool that is not durable enough can lead to early die failure, unplanned maintenance, and supply interruptions.
When requesting quotes from several die casting suppliers, give each one the same information: a 2D drawing with tolerances, alloy specification, surface finish requirements, annual and lifetime volumes, and tooling ownership terms. If one quote includes tooling and another lists it separately, the prices are not directly comparable.
State whether the quote should include packaging, shipping terms (FOB, EXW, or DDP), and secondary operations. Differences in scope can cause quotes to vary by 30% or more, even when suppliers are pricing the same part.
Ask each supplier to break the quote into at least these categories:
Tooling cost (mold design, steel, machining, heat treatment, and trials)
Per-part casting cost (material, machine time, and labor)
Secondary operations (CNC machining, deburring, and tapping)
Surface treatment (powder coating, anodizing, and plating)
Assumptions (scrap rate, cycle time, machine tonnage, and alloy price basis)
An itemized quote shows where the money goes and which design changes might reduce cost. It also makes it easier to spot when a discount on one line item is offset by a higher charge elsewhere.
A: Zinc alloys such as Zamak 3 often have the lowest per-part cost for small components because of their lower melting temperatures, faster cycle times, and longer tool life. Among aluminum alloys, A380 is widely used and is typically one of the most economical options.
A: Tool life depends on the alloy, part geometry, and maintenance. A well-maintained H13 mold used for aluminum die casting typically lasts 80,000 to 150,000 shots. Zinc die casting molds can exceed 500,000 shots because zinc is cast at lower temperatures.
A: Yes. Keeping wall thickness uniform, using generous fillet radii, and removing unnecessary side cores can help reduce cost. Each slide or core eliminated can lower tooling complexity and cycle time.
A: Yes. TEAM MFG reviews your 3D model and drawing for manufacturability before preparing a formal quote. This review can identify design changes that may reduce cost early in the process.
A: Submit your STEP or IGES file and a 2D drawing showing the alloy, tolerances, finish, and annual volume through www.team-mfg.com. The engineering team typically responds with an itemized cost breakdown within 48 hours.
